Low Temperature Glycol Chiller
>
|
| Place of Origin | CHINA |
| Brand Name | DARKO |
| Certification | CE,ISO9001 |
| Model Number | DK-10AD |

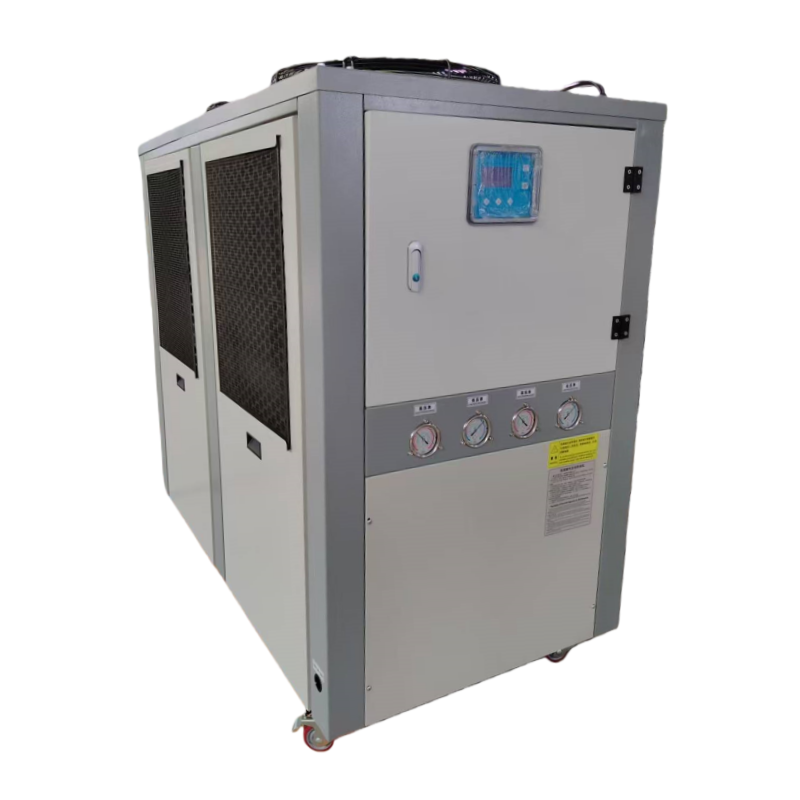

Glycol Chiler 5HP 10HP 20HP Food And Beverage Chiller System Of Chiller Industrial
1. Main Technical Specification:
2. Technical Parameter
| Model | DK-3AL | TDK-5AL | DK-6AL | DK-8AL(D) | DK-10AL(D) | DK-12AL(D) | |
| Cooling capacity | At 0℃ Outlet (Kw) | 6.8 | 10.5 | 12.2 | 16.2 | 22.8 | 24.8 |
| At -5℃ Outlet (Kw) | 5.7 | 8.9 | 10.3 | 13.8 | 19.3 | 21.0 | |
| Power | Kw | 3.45 | 5.45 | 6.31 | 8.22 | 10.54 | 12.33 |
| Power Supply | 3PH-380V-50Hz | ||||||
| Refrigerant | Type | R22/R407C/R404a | |||||
| Control | Thermostatic expansion valve | ||||||
| Compressor | Type | Hermetic scroll type | |||||
| Power(Kw) | 2.84 | 4.36 | 5.2 | 3.5*2 | 4.4*2 | 5.2*2 | |
| Evapoirator | Type | SS Tank with coil or Shell and tube Or Plate Heat Exchanger | |||||
| At 0℃ Outlet Water Flow(m3/h) |
1.29 | 1.99 | 2.31 | 3.07 | 4.32 | 4.70 | |
| At -5℃ Outlet Water Flow(m3/h) |
1.17 | 1.83 | 2.12 | 2.84 | 3.97 | 4.32 | |
| Capacity(L) | 50 | 70 | 70 | 120 | 200 | 200 | |
| Inlet/Outlet | DN20 | DN20 | DN32 | DN32 | DN32 | DN32 | |
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||
| Fan Power(Kw) | 0.25 | 0.52 | 0.52 | 0.24*2 | 0.52*2 | 0.52*2 | |
| Pump | Type | Centrigual water pump | |||||
| Power(Kw) | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
| Lift(m) | 24 | 25 | 24 | 20 | 20 | 20 | |
| Protection System | Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
| Dimension | L (mm) | 700 | 900 | 900 | 950 | 1560 | 1560 |
| W (mm) | 550 | 850 | 850 | 900 | 850 | 850 | |
| H (mm) | 1000 | 1800 | 1800 | 1900 | 1500 | 1500 | |
| Weight | Kg | 150 | 200 | 230 | 310 | 450 | 500 |
3. Details Images
4. DARKO industrial water chiller with best price, widely application:
5. OUR SERVICE& CERTIFICATE
---HIGH-QUALITY SERVICES FOR YOU---
1.24 Hours working phone call/Email/Wechat/Whatsapp/Trade manager online to support.
2.Components are new and branded, Completely pre-packaged
3.Proven reliability for over 15 years, Designed and engineered by experienced technicians: Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
4.Warranty : 12 Months warranty and life time technical maintenance offered.
5.Replacement parts and spare parts available from stock: All extra parts for the machine can be purchased with agent price.
6.Experienced aftermarket support,and Free and Professional Training at our Factory under the relaxed condition.
6. DARKOCHILLER ---Your Reliable Industrial Water Chiller Manufacturer
Darko is a top-rated enterprise that will be standing first to meet your cooling needs by offering a reliable working cooling equipment.
There is no need to waste your time searching when the best option is already available. Make sure to fix a meeting with our sales staff for your deep satisfaction then confirm your order.
In order to save your time, you can send us the follows information when you contact with us:
1. What's the cooling capacity need? can use Kw, tons, or Kcal/h.
2. If you can't make sure the capacity, may I know what's the water flow in your system?
3. What's the inlet and outlet temperature need?
So that we can calculate and make and suitable chiller proposal for you.
