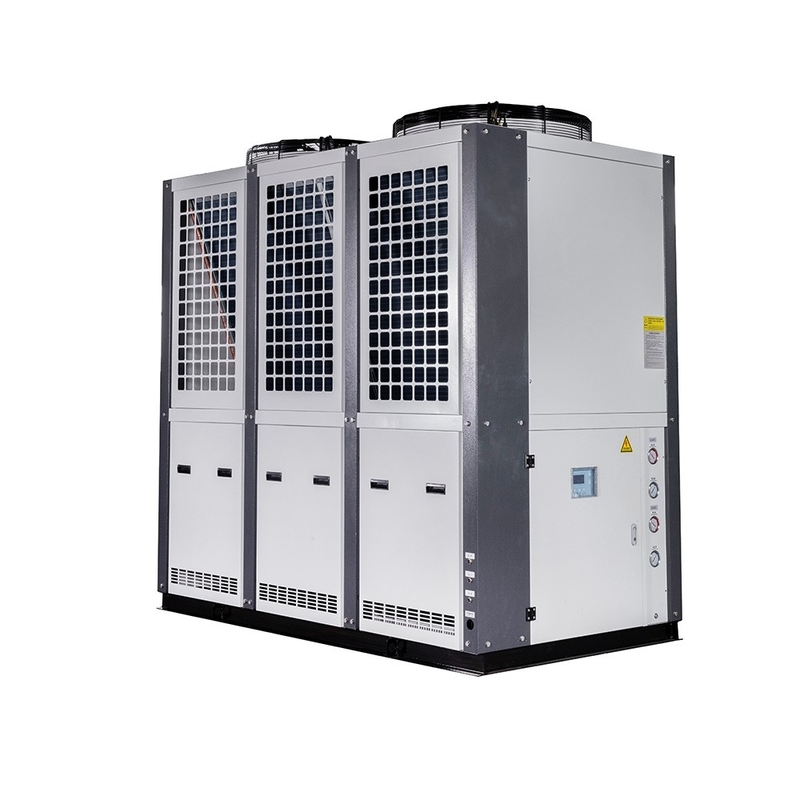

Air Cooled Scroll Compressor 25 Ton Plastic Molding Machine Cooling Water Chiller
Advantage if Air Cooled Scroll Compressor 25 Ton Plastic Molding Machine Cooling Water Chiller
1. The aluminum fin condenser increases the heat exchange area, and the surface is coated with resin, which helps to reduce corrosion. The 304 stainless steel immersed coil evaporator is more stable and convenient, making maintenance and cleaning easier.
2. The compressor adopts hermetic scroll type, which is maintenance-free for life. Its motor adopts a fully enclosed air circulation (TEAO) six-axis, with "F" grade protection and IP55 safety, which can prolong the service life and has a unique cooling effect.
3. The cabinet of the air-cooled chiller is made of galvanized impact steel, treated with phosphoric acid, and then heated after an electrostatic powder layer of about 60 microns.
4. Built-in buffer water tank with a large pump. Valves are installed at the inlet and outlet to adjust the water pressure. Users can have barrier-free maintenance and repair in future use.
5. Some airtight compressors use oil sight glass valves to provide release and suction as well as crankshaft heaters. All standard grades of coils are composed of 3 or 4 columns/12FPI, ⅜"O.D tubes.
Feature of Air Cooled Scroll Compressor 25 Ton Plastic Molding Machine Cooling Water Chiller
1.Cooling capacity: 30HP(25 Ton)
2.Inlet/outlet freeze water temperature: 12℃/7℃
3.Refrigerant: R22, R134a, R407c, R410a
4.Power Supply: 3Φ-50Hz-380V
5.Compressor: Panasonic Scroll
Technical Parameter of Air Cooled Scroll Compressor 25 Ton Plastic Molding Machine Cooling Water Chiller:
| Model | DK-30A(D) |
| Cooling Capacity | 87Kw / 25 Ton |
| Input power | 32.33 Kw |
| Power Supply | 3Phase-380V-50Hz ( or as customer need) |
| Refrigerant | R22/R407C/R410A |
| Compressor quality | 3 Units |
| Compressor type | Hermetic scroll |
| Compressor power | 9.05kw*3 |
| Evaporator | Tank with coil, or shell and tube |
| Water flow | 14.33 m³/h |
| Water pump | 2.2 KW |
| Condenser | High efficiency hydrophilic aluminum foll finned type |
| Fan power | 1.5KW |
| Protection system | Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection. |
| Dimension | 2200*1160*1900 mm |
| Weight | 1150kg |
Feature picture of Air Cooled Scroll Compressor 25 Ton Plastic Molding Machine Cooling Water Chiller:
Factory of Air Cooled Scroll Compressor 25 Ton Plastic Molding Machine Cooling Water Chiller
If you require a cooling equipment for your project? Darko is a top-rated enterprise that will be standing first to meet your cooling needs by offering a reliable working cooling equipment.
There is no need to waste your time searching when the best option is already available. Make sure to fix a meeting with our sales staff for your deep satisfaction then confirm your order.
In order to save your time, you can send us the follows information when you contact with us:
1. What's the cooling capacity need? can use Kw, tons, or Kcal/h.
2. If you can't make sure the capacity, may I know what's the water flow in your system?
3. What's the inlet and outlet temperature need?
So that we can calculate and make and suitable chiller proposal for you.
