(2). Inlet and outlet diameter: DN 80
(3).Connection with Flange
(4). 2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency.
(5).Flow rate meter and temperature sensor.
Home
>
products
>
Screw Chillers
>
|
| Place of Origin | CHINA |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC-150C |

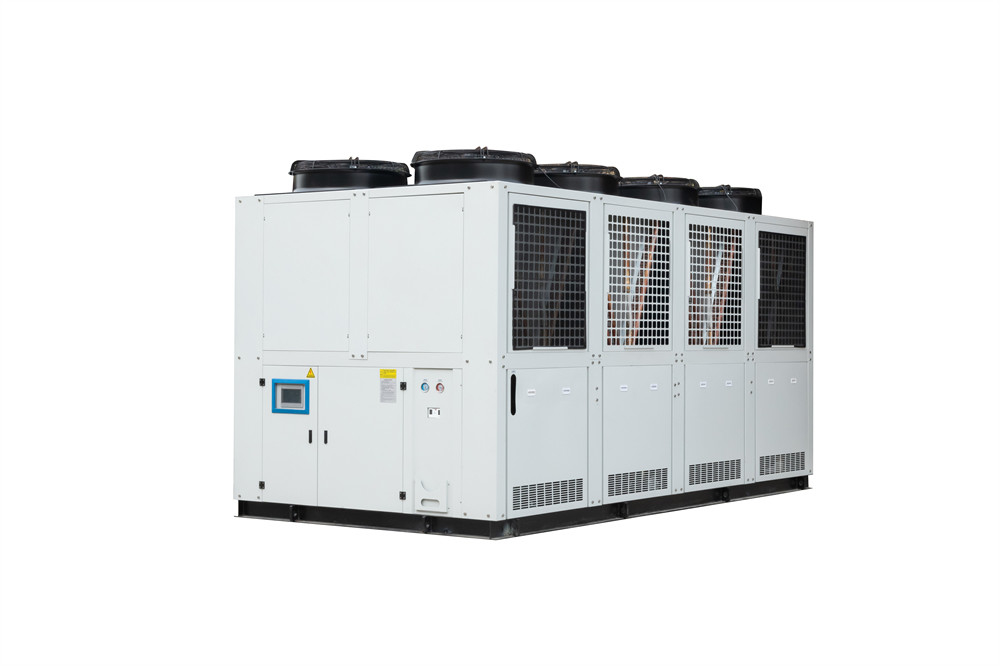

Industrial Water Cooling Chiller 150Kw Air Cooled Cooling Machine Chiller
Technical Data
| Air Cooled Screw Chiller Normally Temperature Series( Single System) | |||||||||
| Model | TC-80A | TC-100A | TC-150A | TC170A | TC-250A | TC-300A | TC-450A | TC-530A | |
Cooling Capacity |
USRT | 22.2 | 31.0 | 43.5 | 46.9 | 76.8 | 93.8 | 127.9 | 150.7 |
| Kcal/h | 67080 | 93740 | 131580 | 141900 | 232200 | 283800 | 387000 | 455800 | |
| KW | 78 | 109 | 153 | 165 | 270 | 330 | 450 | 530 | |
| Power | 3PH-380V-50Hz | ||||||||
Refrigerant |
Type | R22/R407C | |||||||
| Control | Thermostatic expansion valve | ||||||||
Comperssor |
Type | semi-closed screw type | |||||||
| kw Power | 29 | 38 | 48 | 55 | 86 | 106 | 142 | 165 | |
| Start | Y-△ | ||||||||
| Capacity | 25%-50%-75%-100% | ||||||||
Evaporator |
Type | High efficiency copper tube shell and tube type | |||||||
| m³/h Flow | 13 | 19 | 24 | 28 | 46 | 57 | 77 | 91 | |
Inlet/outlet |
DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | DN100 | |
Condenser |
Type | High efficiency hydrophilic aluminum foll finned type | |||||||
| m³/h Flow | 27000 | 40000 | 50000 | 60000 | 100000 | 120000 | 150000 | 180000 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||
Dimension |
L(mm) | 2350 | 3200 | 3200 | 3300 | 4400 | 3850 | 4750 | 5850 |
| W(mm) | 1450 | 1450 | 1450 | 2300 | 2300 | 2200 | 2200 | 2200 | |
| H(mm) | 2150 | 2150 | 2150 | 2400 | 2400 | 2350 | 2450 | 2450 | |
| Wight | kg | 1800 | 1900 | 2300 | 2480 | 3800 | 3300 | 4000 | 5000 |
Control System
(1). SIMENS PLC control system, R485 OR Ethernet Connection support.
(2). Simple Punpu micro-computer control system, more stable, easy to operate.
(3). Schneider electrical components, UL certificate can option.
(4). Workable for outdoor design with a alone cabinet, waterproof.
(5). Alarm display, protect for equipment well.
Compressor
(1). Air cooled screw chiller can make with one compressor system, also can make to two compressor system; more energy saving, and conveneint for mainteance.
(2). 25%~50%~75%`100% energy control, when temperature to the temperature set point, it will unloading, when water become warmer, compressor start loading automatic.
(3). , Hanbell, Refcom, etc brand optional, Quality first, Service first.
More Details Of Air Cooled Chiller
