Low Temperature Glycol Chiller
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

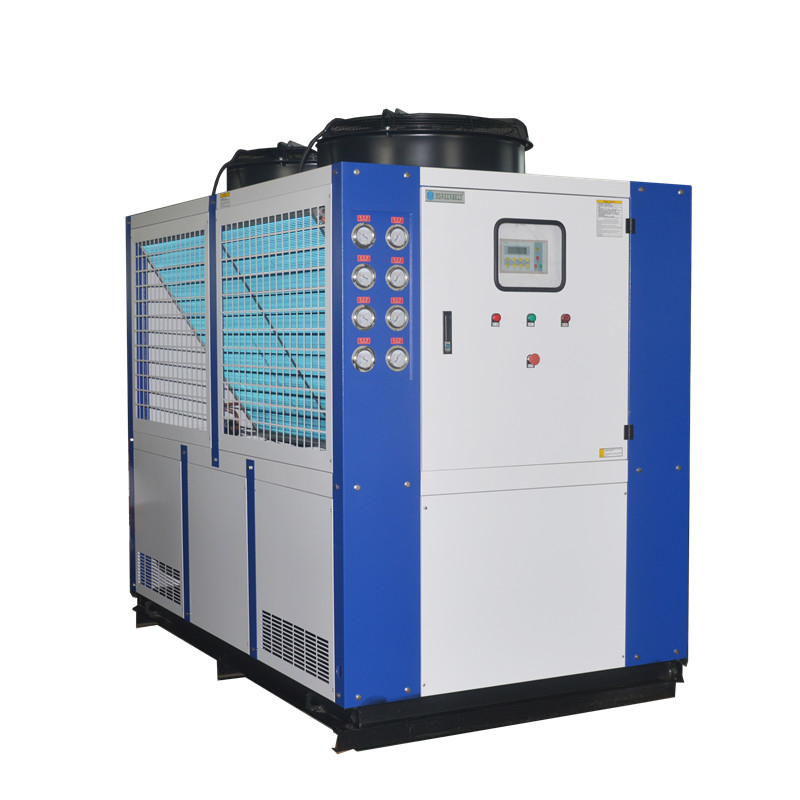

Minus 5C Minus 10C Low Temperature Industrial Water Chiller For Pharmaceutical
Features:
1. Product Application
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc.
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc
2. Feature
| Model | TH-40A |
| Cooling capacity | 74.5 Kw / 64070 Kcal/h 25 TR |
| Temperature outlet range | -5 degree C ~+35 degree C |
| Refrigerant | R407c, R410a, R22, R404a |
| Power supply | 3PH-380V-50HZ, or according to user country need |
| Evaporator type | Tank with coil, Shell and tube, or Plate heat exchanger |
| Water flow rate | 15.33 m3/h |
| Pump Power | 3Kw |
| Condenser | Cooper coil with aluminum finned |
| Air flow | 40000 m3/h |
| Dimension | 2500*1460*2000mm |
| Weight | 1350 kg |
3. Availably option
4. Safty protect function
Other Technical Parameter
| Air Cooled Glycol Water chiller | ||||||||
| Model | TH-3A | TH-5A | TH-6A | TH-8A | TH-10A | TH-12A | ||
| Cooling capacity | 0℃ | kw | 6.8 | 10.5 | 12.2 | 16.2 | 22.8 | 24.8 |
| -5℃ | kw | 5.7 | 8.9 | 10.3 | 13.8 | 19.3 | 21 | |
| Power | kw | 3.45 | 5.45 | 6.31 | 8.22 | 10.54 | 12.33 | |
| Power input | 3PH-380V-50HZ | |||||||
| Refrigerant | Type | R22/R407C | ||||||
| Control | Thermostatic expansion valve( Capillary) | |||||||
| Compressor | Type | Hermetic scroll type | ||||||
| Power | kw | 2.84 | 4.36 | 5.2 | 3.5*2 | 4.4*2 | 5.2*2 | |
| Evaporator | Type | SS Tank with coil or Shell and tube | ||||||
| m³/h Flow |
0℃ | 1.29 | 1.99 | 2.31 | 3.07 | 4.32 | 4.70 | |
| -5℃ | 1.17 | 1.83 | 2.12 | 2.84 | 3.97 | 4.32 | ||
| Capacity | L | 50 | 70 | 70 | 120 | 200 | 200 | |
| pipe diameter of chilled water | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 | ||
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | ||||||
| Power | kw | 0.19 | 0.52 | 0.52 | 0.24*2 | 0.46*2 | 0.46*2 | |
| pump | Type | Centrigual water pump | ||||||
| Power | kw | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
| lift | m | 24 | 25 | 24 | 20 | 20 | 20 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||
Dimension |
长 L | mm | 1100 | 1200 | 1200 | 1400 | 1560 | 1560 |
| W | mm | 600 | 600 | 600 | 800 | 850 | 850 | |
| H | mm | 1100 | 1100 | 1100 | 1400 | 1500 | 1500 | |
| Wight | kg | 150 | 200 | 230 | 310 | 450 | 500 | |
Details Image
1.Compressor: Adopt Copeland / Maneurop compressors.
2.Shell and tube type seamless thread bronze tube.
3.Evaporator: Adopt snake-and-tube type (or shell and tube) of seamless bronze tube. High performance of evaporate 4.Completely the refrigerant for chilling water.
5.Pump: High-flow pump in smooth operation with minimum noise and no leakage.
6.Control system : Schneider or other famous brand Electric part. Adopt the micro computer control system which can be remote controlled and support to output the alarm message.
7.Outlook designing: Novel designed, Rigid construction, low gravity, no leakage to keep manufacturing plant dry and clean.
8.Feature of thermostatic chiller: High precision ±1°C controlled.
Beer Brewing Glycol Chilling System Air Cooled Glycol Chiller 5HP 8HP 10HP With PHE For Fermentation Tank Widely used in many different industries:
1)Plastics industry chiller
2)Electronic industry chiller
3)Electroplating industry chiller
4)Mechanical industry chiller
5)Building industry chiller
6)Vacuum coating chiller
7)Food industry chiller
8)Chemical fiber industry chiller
9)Beverage industry chiller
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer for industrial water chiller, we produce and export ourselves.
You are welcomed to visit our factory.
2.Q: What kind of payment do you accept?
A: We accept T/T and L/C, Alibaba trade assurance at most.
If you want to use others payment, contact me for more info.
3.Q: What's your delivery time?
A: It depends on the products.
| Products | Delivery time |
| Normally water chiller model 3p-380v-50hz | 15-20 days |
| Special power supply water cooling machine | 20-30 days |
| Customized Water cooling machine | 25-40 days |
4.Q: What's warranty time?
A: 14 Months
5.Q: What's your after-sale service?
A: We provide after-sale service for lifetime, and the supply of spare parts for lifetime.
We can provide remote video guidance, and provide door to door service.
Benefits :
1. Reduces Scrap Count: a consistent and reliable supply of the proper temperature to the process which means less scrap.
2. Better Heat Transfer Rates, Less Maintenance and Downtime: because a chiller uses a closed water loop, a better quality of water will be used, resulting in better heat transfer rates, less required maintenance and decreased downtime.
3. Colder Water: a chiller can produce much colder water (or water/glycol mixture) than any of the other cooling alternatives, giving you certain advantages under some circumstances.
