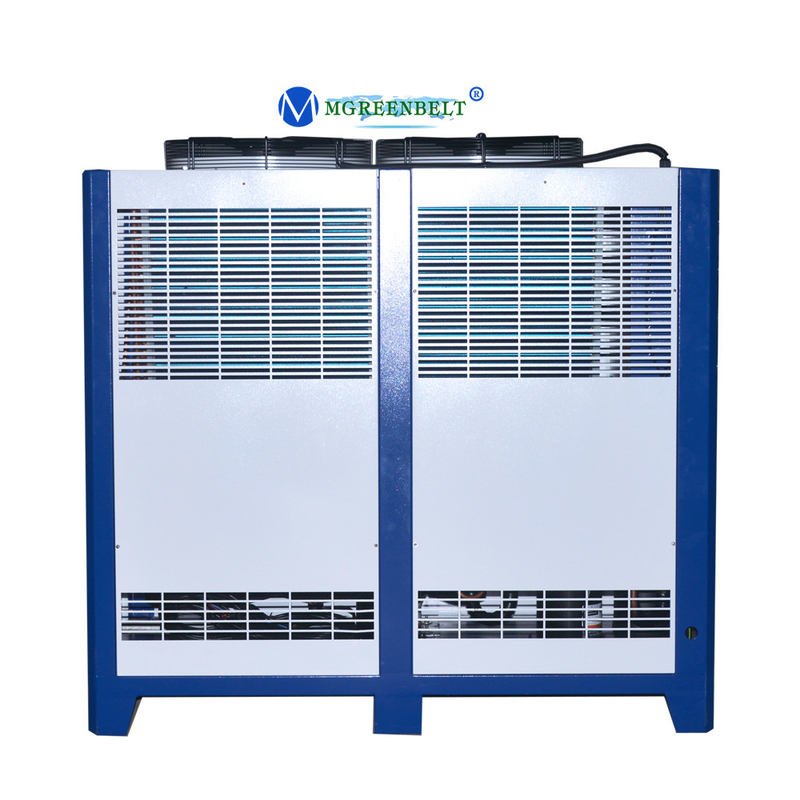

Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
  • Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical
Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical

Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical

Place of Origin China
Brand Name TAICH
Certification CE
Model Number TC
Product Details
Product Name:
Glycol Chiller
Cooling Capacity:
19.3 Kw In -5 Degree C Outlet
Compressor Brand:
Panasonic / Copeland / Danfoss
Compressor Power:
4.4kw*2
Power Supply:
3PH-220V/380V/440V/-480V/415V-50HZ/6-HZ
Refrigerant:
R22/R407C/R410A
Pump Power:
0.55 Kw
Chilled Water Flow:
3.97m3/h @-15 Degree C Outlet
Condenser Fan:
0.52kw*2
Dimension:
1560*850*1500mm
Weight:
450kg
Total Input Power:
10.54kw
Outlet Temperature:
-15 Degree C, -10 DEGREE C, -5 Degree C, 0 Degree C
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
US$200.00~US$20000.00
Packaging Details
Plywood Case
Delivery Time
Within 3 days if stock;Within 15 Working days if no stock
Payment Terms
50% Down payment, the balance payment before delivery
Supply Ability
300 Sets / Month
Product Description

Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical



Industrial air chiller is one kind of air-cooled chiller specially designed and manufactured for the industrial cooling process.

OUR Chiller is a professional industrial air chiller manufacturer and supplier in China with rich experience.




Features:



1. Industrial Air Cooled Stainless Steel Water Chiller

1. Industrial air chiller capacity 5.2 KW to 230 KW
2. Temperature control -5 degreeC, 7℃ to 35℃
3. Chilled water flow rate up to 480LPM
4. Air-cooled type condenser 5. Built-in SS water tank and water pump
6. SS plate type heat exchanger available
7. Industrial air chiller easy installation & maintenanc

2. Feature

Model TH-1A
Cooling capacity  19.3Kw
Temperature outlet range -5 degree C ~+35 degree C
Refrigerant R407c, R410a, R22, R404a
Power supply 3PH-380V-50HZ, or according to user country need
Evaporator type Tank with coil, Shell and tube, or Plate heat exchanger
Water flow rate 3.97 m3/h
Pump Power 0.55Kw
Condenser Cooper coil with aluminum finned
Air flow 10000 m3/h
Dimension 1560*850*1500mm
Weight 450 kg



3. Product Description:

1. Using the international advanced scroll or piston compressor, the components of electrical appliances and refrigeration systems are world brand products.
2. Built-in stainless steel water tank, high performance, high flow special pump;
3. The bottom of the fuselage is equipped with movable casters, which are flexible and convenient to use.
4. Over 20 kW, there are double refrigeration circuits. Even if the primary circuit fails, the other circuit can run as usual.
5. Streamlined aesthetic design, operation panel convex and inclined surface design (humanized design), operation procedures at a glance;
6. Comparing with the traditional control mode, the special controller has obvious advantages, such as anti-electromagnetic interference, high resistance to cold and heat, strong control logic, sensitive response and accurate action.
7. Comprehensive safety protection:
1) high and low pressure protection and safety valve of refrigeration system;
2) Double protection of compressor overload soft and hard;
3) under-phase, reverse, under-voltage and over-voltage protection of power supply;
4) anti-freezing protection and water flow protection of water system.

Evaporator 1: Shell and tube, this is a sealed loop, if user side is open loop , can choose this one
Evaporator 2: Stainless steel water tank+ shell and tube: this is a open loop, if user side is closed loop , can choose this one.
Spare parts and service
We will supply the spare parts in the machine whole life, all parts can be sent our within 48 hours by DHL.
Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical 0Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical 1Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical 2

4. Safty protect function

  • ON/OFF- Main power switch
  • Non—fuse circuit breaker
  • H/L switch
  • Power reverse phase protection switch
  • Anti-freezing protection
  • Compressor overload protection
  • Chilling water pump overload protection
  • Fan motor overload protection
  • Failure indicator system
  • Failure alarm system
  • Multi-unit delay start control

Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical 3

Hot Selling Products

1. Scrol Type Compressor Air Chiller ( 5.2 Kw - 125 KW ) 2. Screw Type Compressor Air Chiller ( 78-530 KW ) 3. Screw Type Compressor Water Cooled Chiller ( 90-1750 KW ) need cooling tower 4. Glycol Chiller, Low Temperature chiller, Brine chiller, boat chiller etc. .


Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical 4



Application of the water chiller:

industrial chiller are the perfect solution for any application, in particular for the plastic field, such as:
Injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field:
Electroplating (surface treatment), medicine, chemical, hydraulic system, leaser, shoe-making, electronic, print, etc..



Low Temperature Scroll Air Cooled Chiller 30Kw Glycol Water Chiller For Pharmaceutical 5





FAQ

1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer for industrial water chiller, we produce and export ourselves.

You are welcomed to visit our factory.
2.Q: What kind of payment do you accept?
A: We accept T/T and L/C, Alibaba trade assurance at most.
If you want to use others payment, contact me for more info.
3.Q: What's your delivery time?
A: It depends on the products.

Products Delivery time
Normally water chiller model 3p-380v-50hz 15-20 days
Special power supply water cooling machine 20-30 days
Customized Water cooling machine 25-40 days



4.Q: What's warranty time?
A: 14 Months


5.Q: What's your after-sale service?
A: We provide after-sale service for lifetime, and the supply of spare parts for lifetime.
We can provide remote video guidance, and provide door to door service.

WE designed and manufactured the highest quality Water cooling machine, water cooled screw chiller, air cooled screw chiller, air cooled scroll chiller, water cooled scroll chiller, glycol chiller and etc.
