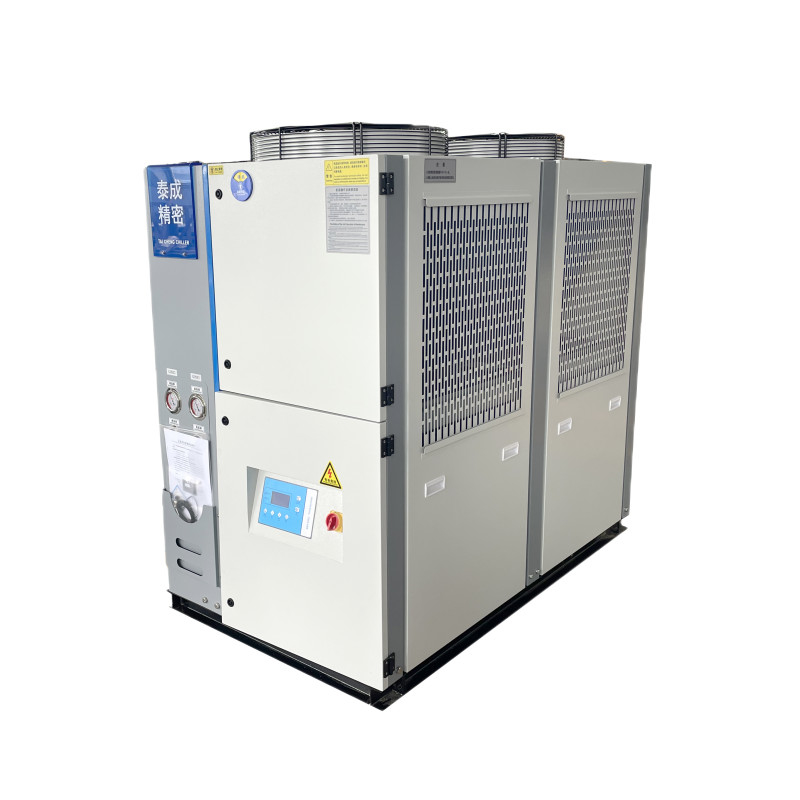

Air Cooled Glycol Chiller 10 hp Brewery Glycol Chiller With Heat Exchange

(1). Electrical waterproof IP55 grade, chiller could be placed outdoor without shelter.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available, chiller with stop/off function remote and alarm remote optional.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;



Air Cooled Glycol Water chiller
Model			TH-3A	TH-5A	TH-6A	TH-8A	TH-10A	TH-12A
Cooling capacity	0℃	kw	6.8	10.5	12.2	16.2	22.8	24.8
	-5℃	kw	5.7	8.9	10.3	13.8	19.3	21
Power	kw		3.45	5.45	6.31	8.22	10.54	12.33
Power input			3PH-380V-50HZ
Refrigerant	Type		R22/R407C
	Control		Thermostatic expansion valve( Capillary)
Compressor	Type		Hermetic scroll type
	Power	kw	2.84	4.36	5.2	3.5*2	4.4*2	5.2*2
Evaporator	Type		SS Tank with coil or Shell and tube
	m³/h Flow	0℃	1.29	1.99	2.31	3.07	4.32	4.70
		-5℃	1.17	1.83	2.12	2.84	3.97	4.32
	Capacity	L	50	70	70	120	200	200
	pipe diameter of chilled water		DN25	DN25	DN25	DN32	DN32	DN32
Condenser	Type		High efficiency hydrophilic aluminum foll finned type
	Power	kw	0.19	0.52	0.52	0.24*2	0.46*2	0.46*2
pump	Type		Centrigual water pump
	Power	kw	0.37	0.55	0.55	0.55	0.55	0.55
	lift	m	24	25	24	20	20	20
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	mm	1100	1200	1200	1400	1560	1560
	W	mm	600	600	600	800	850	850
	H	mm	1100	1100	1100	1400	1500	1500
Wight	kg		150	200	230	310	450	500
