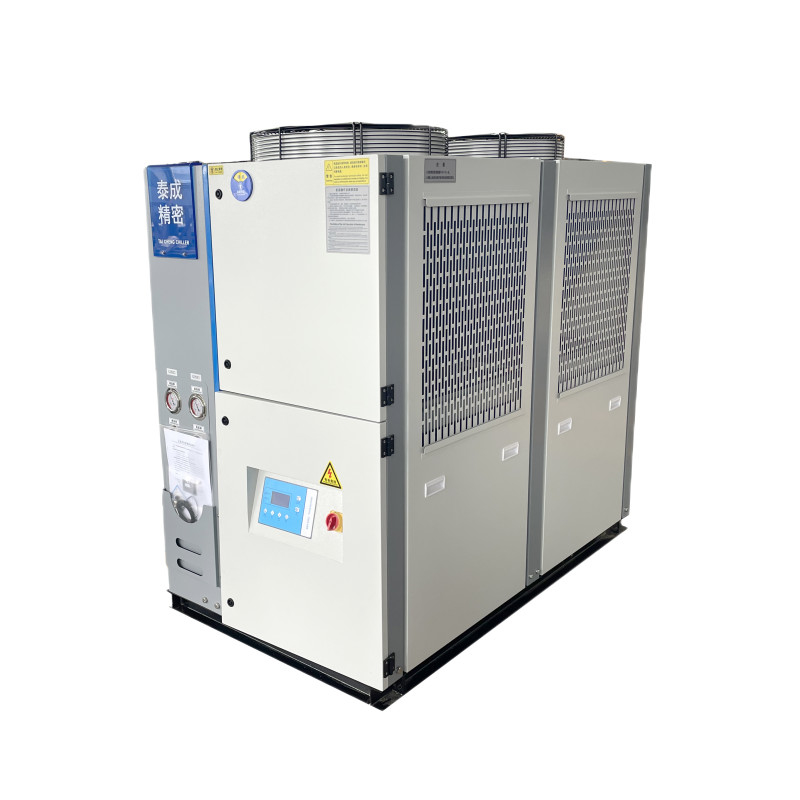

Industrial Cooling 20HP 55kw Air Chiller Machine Price with CE
Production Description
Air Cooled Scroll Water Systems Chiller Wholesale Water Chiller Air Conditioner Chiller Water Plant Chiller Coolant Chiller Chemical Material Chiller
1.Industrial Cooling 20HP 55kw Air Chiller Machine Price with CE general introduction
1).Low Noise
2).High Efficient and Energy Saving
3).Easy Operation and Installation
4).Compact Exterior
5).High quality
6).Competitive price
7).ISO 9001 certificate
2.Feartures of Industrial Cooling 20HP 55kw Air Chiller Machine Price with CE
1).Compressor
The most advanced scroll or piston compressor in the world, the original components of electrical and refrigeration systems are all world-famous products, with the characteristics of life-long maintenance-free. Compared with the traditional reciprocating type, the efficiency can be increased by more than 10%. Save energy. Widely used in household, commercial air conditioning and industrial cooling.
2).Heat exchanger
The unit evaporator adopts high-efficiency shell-and-tube heat exchanger, internal heat-exchange copper tube adopts internal thread copper tube type; the cold suspect unit adopts high-efficiency copper tube + hydrophilic aluminum slab type. All are made of imported sheet metal, which has the advantages of high pressure resistance grade, high heat exchange efficiency, maintenance-free and long service life.
3).Control system
The unit adopts the control system independently developed by Shanglei Refrigeration, which is easy to operate and precise in control.
4).Electrical system
The unit adopts electrical components such as Siemens and Schneider, and adopts waterproof control cabinet.
5) .Human-machine interface
The unit adopts LCD digital display, Chinese and English man-machine interface, simple operation procedure, one-button start, automatic operation.
6).Unit enclosure
The unit adopts integral design, compact and simple structure. The enclosure structure is electrostatically phosphatized and sprayed by automatic spraying equipment. It has strong anti-corrosion and turbidity, and is equipped with waterproof control cabinet to ensure that the unit can be placed outdoors for a long time. Not easy to fade, turbid.
7).The unit is equipped with stainless steel water tank and high performance special water pump.
8).The unit has multiple refrigeration circuits, and even if one circuit fails, the other circuit can operate as usual.
9)The streamlined and beautiful design of the unit, the operating procedures are clear at a glance.
10). Application of environmentally friendly refrigerant
A variety of environmentally friendly refrigerants, such as R134a, R407C, and R404A, can be used to meet the environmental requirements of the international community.
3.Technical Specification
| Air cooled scroll water chiller | ||||||||||
| Model | TH-5A | TH-10A | TH-12A | TH-15A | TH-20A | TH-25A | TH-30A | TH-40A | ||
| Cooling capacity | Kcal/h | 11266 | 24510 | 26660 | 35948 | 47558 | 54352 | 71896 | 94256 | |
| KW | 13.1 | 28.5 | 31 | 41.8 | 55.3 | 63.2 | 83.6 | 109.6 | ||
| Tons | 3.72 | 8.10 | 8.81 | 11.89 | 15.72 | 17.97 | 23.77 | 31.16 | ||
| Input power | kW | 5.61 | 10.83 | 12.53 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | |
| Outlet water temperature | 5°C -35°C | |||||||||
| Power supply | 3PHASE-220/380V/415v/460v-50HZ/60HZ | |||||||||
| Refrigerant | Type | R22/R407C/R410A | ||||||||
| Control type | Thermostatic expansion valve | |||||||||
| Compressor | Type | Hermetic Scroll Type | ||||||||
| Power(kw) | 4.54 | 4.54*2 | 5.4*2 | 4.54*3 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | ||
| Evaporator | Type | Stainless Steel Tank with Coil type or Shell and tube | ||||||||
| Water flow(m³/h) | 2.25 | 4.89 | 5.31 | 7.17 | 9.48 | 10.83 | 14.33 | 18.79 | ||
| Capacity(Lts) | 70 | 200 | 200 | 270 | 350 | 350 | 450 | 580 | ||
| Fitting pipe(mm) | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | ||
| Condenser | Type | Finned Copper tube +low noise air fans | ||||||||
| Air volume(m³/h) | 5000 | 10000 | 12000 | 15000 | 20000 | 25000 | 30000 | 40000 | ||
| Water pump | Power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | |
| Lift(m ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||
| Dimension | L(mm) | 1300 | 1560 | 1560 | 1800 | 2100 | 2100 | 2500 | 2350 | |
| W(mm) | 650 | 850 | 850 | 1000 | 1000 | 1000 | 1200 | 1460 | ||
| H(mm) | 1200 | 1500 | 1500 | 1600 | 1700 | 1700 | 1800 | 2000 | ||
| Weight | KG | 200 | 450 | 500 | 750 | 850 | 900 | 1150 | 1350 | |
4.Air Cooled Water Chiller Application
air cooled screw chiller widely used in plastic injection, extrusion, plating, mold, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning refrigeration and various aspects of water centralized water supply, especially suitable for the inconvenience for water and the water pipe ground.
