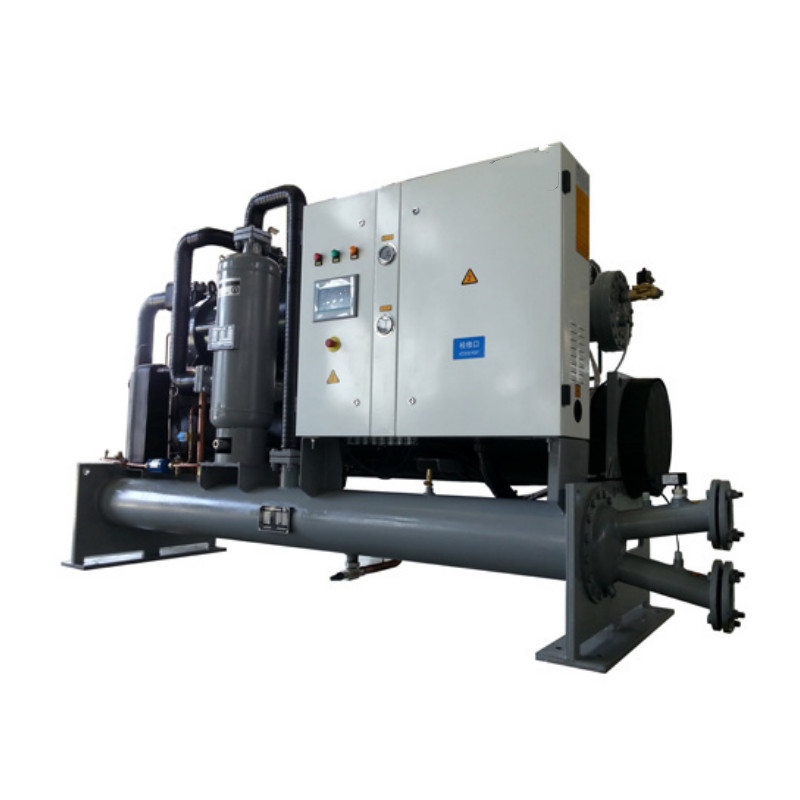

100Kw Low Temp Water Cooled Chiller for Water Cooling Tank
1. 100Kw Low Temp Water Cooled Chiller for Water Cooling Tank General Introduction
Cooling capacity:92kW ~800kW / 25 Ton ~250 Ton
Temperature control 7ºC to 35ºC, 0ºC,-5ºC,-10ºC to -40ºC optional.
Shell and tube evaporator and condenser
Bizer or Hanbell semi-hermetic screw compressor
Optional refrigerant R134a,R407c and R22
Safety protection devices of whole screw chiller
All models and cooling capacity available
2.100Kw Low Temp Water Cooled Chiller for Water Cooling Tank Technical sheet
| Model | TH-90W | TH-125W | TH-165W | TH-180W | TH-220W | ||
Capty |
0℃ | kw | 75 | 96 | 126 | 136 | 168 |
| -5℃ | kw | 63 | 87 | 114 | 122 | 152 | |
| -10℃ | kw | 52 | 72 | 95 | 102 | 127 | |
| Power supply | 3PH-208V-380V-480V-50Hz/60HZ | ||||||
Refrigerant |
Type | R22/R407c/R134a | |||||
| Control | Thermostatic expansion valve | ||||||
Compressor |
Type | semi-closed screw type | |||||
| kw power |
22 | 29 | 36 | 40 | 48 | ||
| Start | Y-△ | ||||||
| Capacity | 25-50-75-100(%) or 25-100(%) | ||||||
Evaporator |
Type | High efficiency copper tube shell and tube type | |||||
| m³/h Flow |
0℃ | 12.9 | 16.5 | 21.6 | 23.3 | 28.8 | |
| -5℃ | 10.8 | 14.9 | 19.5 | 20.9 | 26.1 | ||
| -10℃ | 8.9 | 12.3 | 16.3 | 17.5 | 21.8 | ||
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | ||
Condenser |
Type | High efficiency threaded copper tube shell and tube type | |||||
| m³/h Flow | 18.3 | 23.6 | 30.5 | 33.2 | 40.7 | ||
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | ||
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
Dimension |
L | mm | 2300 | 2300 | 2500 | 2500 | 2500 |
| W | mm | 750 | 750 | 750 | 750 | 800 | |
| H | mm | 1500 | 1500 | 1500 | 1500 | 1500 | |
| dB Noise | 73.1 | 73.7 | 74.8 | 78.4 | 79.0 | ||
| kg Weight | 660 | 700 | 800 | 975 | 1000 | ||
3.100Kw Low Temp Water Cooled Chiller for Water Cooling Tank Description
The TH series of water cooled chillers offer the most advanced design to satisfy today's industrial cooling requirements.
The entire range is assembled with components developed with well know manufacturer. The complete TH series of packaged air cooled /water cooled chillers offer max efficiency together with total reliability and are manufactured to the highest quality standard.
This new generation of water chillers is built on years of experience, the result of which is the TH series which incorporates many major advanced standard features that other suppliers charge as extra.
4.Feature:
1) .Cooling capacity from 7ºC to 35ºC, or if need lower outlet temperature please inform us change the offer;
2) .Stainless insulated water tank and anti-freeze thermostat can provide from us;
3) .R22/R407c/R404a/R134a refrigerant used as standard for efficient cooling.
4) .Refrigeration loop controlled by high and low pressure switches.
5) .Compressor and pump overload relays.
6) .Tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
7) .Tube-in-shell evaporator for excellent cooling.
5.Water Cooled Chiller Production Show
6. Water Cooled Chiller Application
screw chiller widely used in plastic injection, extrusion, plating, mold, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning refrigeration and various aspects of water centralized water supply, especially suitable for the inconvenience for water and the water pipe ground.
7.Water Chiller Easy to Install
