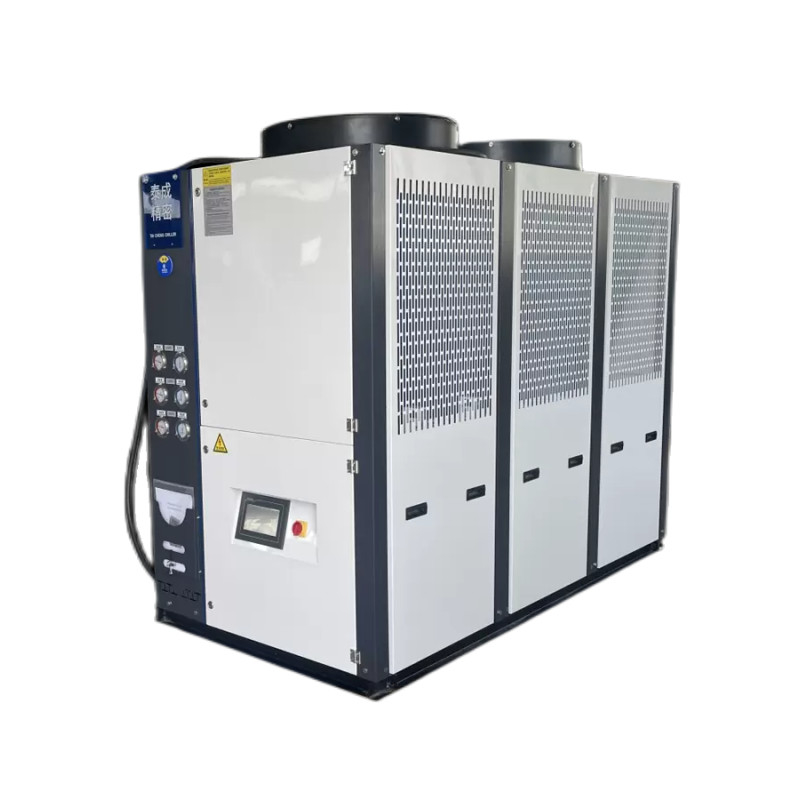

Water Cooling Machine 30hp Air Cooled Water Chiller for PVC Extrusion Line
Description :
During the process of making plastic product, an air cooled water chiller cools the hot plastic that is injected to shorten the cycle time and improve quality and productivity. It is very important to choose one complete cooling system for plastic processing industry.
This series Screw Type Air Cooled Water Chiller can be applied to one big plastic injection machine or several injection machines at the same time, with one large water tank outside to be cooled by the chiller, the consistent and reliable supply of the proper temperature to the process which means less scrap, more quality products.
Description
Water Cooling Machine 30hp Air Cooled Water Chiller for PVC Extrusion Line
Our industrial using air cooled chiller adopt famous brand components to ensure the high quality and good performance for your usage. Popular PLC control system which show out working condition of each parts, and touch screen operate,to be controlled easily and powerful. Main four parts below:
1. Installed with import scroll compressors, brand Copeland, Danfoss, Panasonic, etc. Excellent cooling and long working life.
2. Well designed and reasonable Pipelines-ensures power supply and saves energy;
3. Microprocessor control, easy to operate , can set temperature on the control panel from 5C to 35C.
4. Unique open reservoir tank made of stainless steel, easy cleaning & maintenance.
5. Installed with current overload protector, high & low-pressure switch,electronic timer delay , fault display system.
6. Single, double or four compressors combination unit available & high power efficiency.
7. Industrially designed , elegant and ergonomic.
8. Widely used in plastic processing industry like injection molding, blow molding, extrusion, film blowing,etc.
Design:
(1). Electrical waterproof IP55 grade, chiller could be placed outdoor without shelter.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available, chiller with stop/off function remote and alarm remote optional.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Technical Specification
| Air cooled scroll water chiller | ||||||||||
| Model | TH-5A | TH-10A | TH-12A | TH-15A | TH-20A | TH-25A | TH-30A | TH-40A | ||
| Cooling capacity | Kcal/h | 11266 | 24510 | 26660 | 35948 | 47558 | 54352 | 71896 | 94256 | |
| KW | 13.1 | 28.5 | 31 | 41.8 | 55.3 | 63.2 | 83.6 | 109.6 | ||
| Tons | 3.72 | 8.10 | 8.81 | 11.89 | 15.72 | 17.97 | 23.77 | 31.16 | ||
| Input power | kW | 5.61 | 10.83 | 12.53 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | |
| Outlet water temperature | 5°C -35°C | |||||||||
| Power supply | 3PHASE-220/380V/415v/460v-50HZ/60HZ | |||||||||
| Refrigerant | Type | R22/R407C/R410A | ||||||||
| Control type | Thermostatic expansion valve | |||||||||
| Compressor | Type | Hermetic Scroll Type | ||||||||
| Power(kw) | 4.54 | 4.54*2 | 5.4*2 | 4.54*3 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | ||
| Evaporator | Type | Stainless Steel Tank with Coil type or Shell and tube | ||||||||
| Water flow(m³/h) | 2.25 | 4.89 | 5.31 | 7.17 | 9.48 | 10.83 | 14.33 | 18.79 | ||
| Capacity(Lts) | 70 | 200 | 200 | 270 | 350 | 350 | 450 | 580 | ||
| Fitting pipe(mm) | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | ||
| Condenser | Type | Finned Copper tube +low noise air fans | ||||||||
| Air volume(m³/h) | 5000 | 10000 | 12000 | 15000 | 20000 | 25000 | 30000 | 40000 | ||
| Water pump | Power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | |
| Lift(m ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||
| Dimension | L(mm) | 1300 | 1560 | 1560 | 1800 | 2100 | 2100 | 2500 | 2350 | |
| W(mm) | 650 | 850 | 850 | 1000 | 1000 | 1000 | 1200 | 1460 | ||
| H(mm) | 1200 | 1500 | 1500 | 1600 | 1700 | 1700 | 1800 | 2000 | ||
| Weight | KG | 200 | 450 | 500 | 750 | 850 | 900 | 1150 | 1350 | |
Air Cooled Water Chiller Technical Features
Water Cooling Machine 30hp Air Cooled Water Chiller for PVC Extrusion Line
water chillers are apply widely in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Ultrasonic wave cooling, Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications.
