Dual Temperature Water Chillers CWFL-500 For 500W Fiber Laser

CWFL-500 Recirculating industrial water chiller systems (https://www.darkochiller.com) with 1800W cooling
capacity, specially designed for cooling 500W fiber lasers, are characterized by dual circulating refrigeration system and dual temperature
control system.
The CWFL series water chillers (https://www.darkochiller.com) are so multi-functional that the laser device and the QBH connector/optics can be cooled
by the low temperature control system and the high temperature control system respectively at the same time, which can greatly reduce the generation of the condensed water and save cost & space.
 industrial chillers are applicable to cool fiber lasers from IPG, nLIGHT,Trumpf,Rofin,Coherent and SPI and provide effective cooling for laser cutting machines, laser welding machines and laser mark

Air-cooled water chillers features:
1. 1800W cooling capacity; optional environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature to satisfy different needs of fiber laser device and the optics;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature
alarm;
7. Multiple power specifications; CE approval; RoHS approval; REACH approval;
8. Optional heater and water filter.
9. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve
two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

WE exported various glycol chiller. cooling capacity from 5 ton, 10 ton, 2o ton, 85Ton,100Ton,120Ton and 180Ton to the Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Brazil, Argentina, Colombia, South Africa, Nigeria, Saudi Arabia, Dubai, Spain, Italy, etc.


• Data Sheet

• Laser Chiller Details

Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
High precision temperature control system with dual temperature control function
Temperature control accuracy can reach ±1℃. High temp. for QBH connector/optics and low temp. for laser device.
1.Multiple alarm protection
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

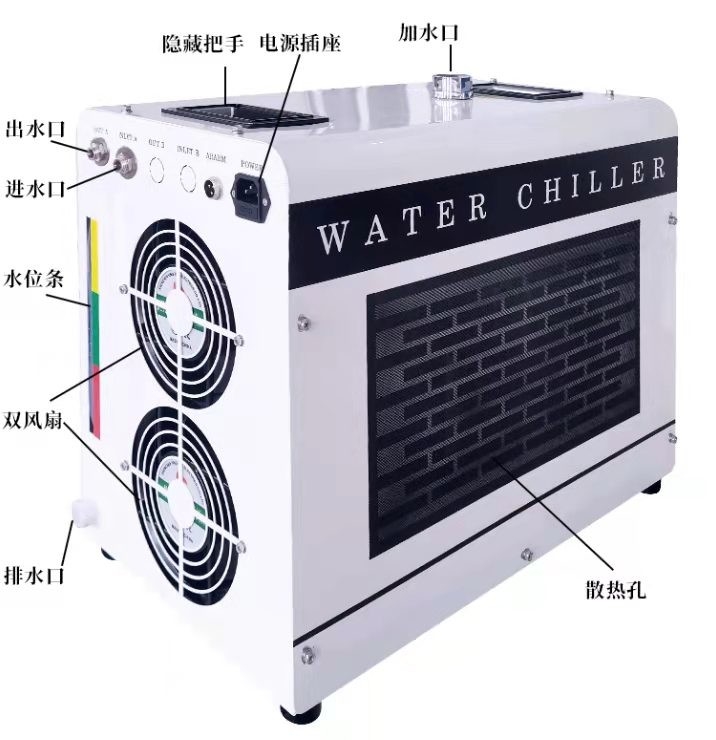

2.Equipped with water pressure gauges ,drain outlet with valve and universal wheels.
Water pressure gauges help monitor the discharge pressure of water pump while universal wheels facilitate the moving of the chiller.

3.Dual inlet and dual outlet connector equipped.
Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

4.Level gauge equipped

5.Cooling fan of famous brand installed.

• Laser Chiller Application
