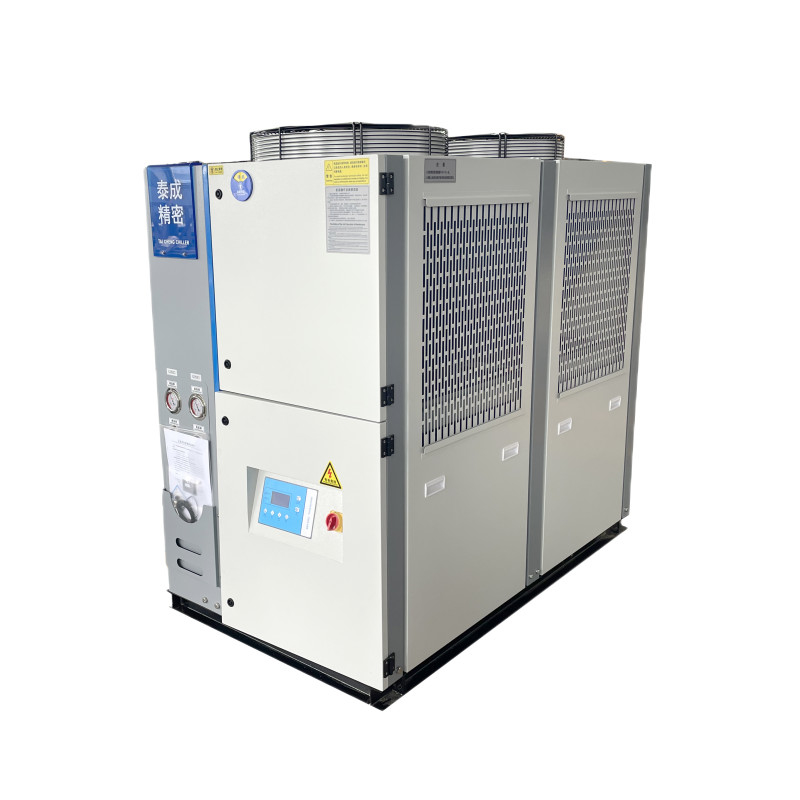

20HP 0C Minus 5C Industrial Glycol Chilling Water System Air Cooled Milk Chiller
INDUSTRIAL PROCESS COOLING BROUGHT STRAIGHT TO THE FARM
WE brings over 20 years of experience to the table when designing a chiller for your dairy. Industrial grade chillers with precise and customizable temperature control ensures the chiller will work as hard to rapidly cool the milk as you do to produce it.
Off-the-shelf chiller manufacturers take a one-size-fits-all approach, while WE a wealth of experience in working with customers and designing systems for each specific application. We understand that dairy farming is a way of life for you, so let US provide the reliable solution to your chilling needs
Air Cooled Screw Chiller Series
As a leading air cooled glycol chiller supplier, WE provides a complete range of air-cooled glycol chiller from MG-C series, with cooling capacity from 1Ton to 50Ton/ 3KW to 170 KW and the chiller temperature control range is +25℃ to -25℃.
Each air cooled screw chiller designed from WE ARE the following features:
WE exported various glycol chiller. cooling capacity from 5 ton, 10 ton, 2o ton, 85Ton,100Ton,120Ton and 180Ton to the Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Brazil, Argentina, Colombia, South Africa, Nigeria, Saudi Arabia, Dubai, Spain, Italy, etc.
As a leader of air-cooled screw chiller supplier, WE can provide not only standard configuration chillers but some other customized products.
Please contact sales to get the best water cooling solution of your glycol chiller.
|
Model
|
TH-20A
|
TH-15A
|
TH-12A
|
|
|
Milk chiller widely use minus 5 C, or 0 C
|
||||
|
Cooling capacity
|
Kw( minus 5C)
|
37.6
|
33.4
|
21
|
|
Kw (5 C)
|
55.3
|
41.8
|
31
|
|
|
Kw(0 C)
|
44.2
|
28.4
|
24.8
|
|
|
Temperature range
|
-5 deg C ~35 degree C ( if need lower price , such as munus 5, minus 10 ..can send us)
|
|||
|
Compressor
|
Refrigerant
|
R22, R407c, R410A, R404A
|
||
|
Refrigerant control
|
Thermostatic expansion valve
|
|||
|
Type
|
Hermetic scroll compressor
|
|||
|
Brand
|
Panasonic / Copeland / Danfoss
|
|||
|
Power
|
9.05*2
|
4.54*3
|
4.4*2
|
|
|
Quantity
|
2
|
3
|
2
|
|
|
Evaporator
|
Type
|
Tank with coil: if user side is a closed loop, choose this ype
|
||
|
Shell and tube: if user side is open loop, choose this type
|
||||
|
SS Heat exchange plate: brewery industry use more
|
||||
|
Dia Inlet/Outlet
|
11 1/2"
|
2 1/2"
|
1 "
|
|
|
Flow rate (m3/h)
|
9.48
|
7.17
|
5.31
|
|
|
Pump
|
Power(kw)
|
1.5
|
1.5
|
0.75
|
|
Pressure (bar)
|
2
|
2
|
2
|
|
|
Condenser
|
Type
|
Air cooling fan and finned
|
||
|
|
Fan power(kw)
|
0.75*2
|
0.75*2
|
0.52*2
|
|
Protect system
|
High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection,
|
|||
| Anti-frozen protection. | ||||
|
Dimension
|
cm
|
210*100*170
|
180*1000*150
|
156*850*150
|
|
N.Weight
|
kg
|
850
|
750
|
500
|
