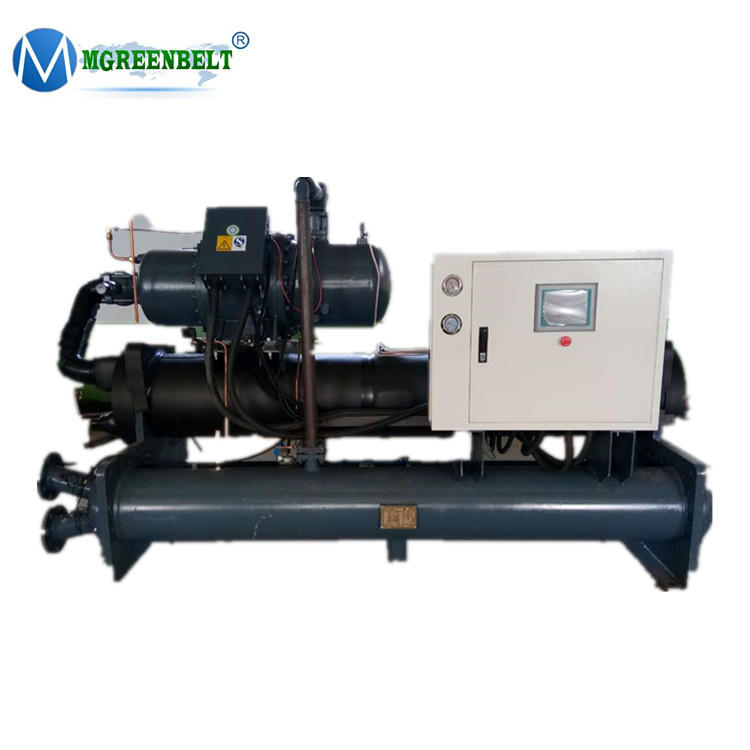

10C 15C 60Ton Process Industrial Water Cooled Chiller For Plastic Injection Molding
FEATURE:
Industrial Chillers are widely used in many industries like plastic and rubber manufacturing,electronic productions,electroplating,medical chemistry,ultrasonic cooling and printing business,etc.It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality.Xiecheng Industrial Chillers are with simple operation,reasonable design and superior quality with more than one hundred different models,which are the best choice for modern industries.
Regarding to high power industrial chiller,screw type chiller is available.
Screw type chiller adopts screw compressor with,high effciency,low noise,durable service,reliable operation.
10C 15C 60Ton Process Industrial Water Cooled Chiller For Plastic Injection Molding
1. Semi-hermetic screw type compressor;
2. Finned copper coil plate fins condenser, no need cooling tower, Convenient installation;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise.
|
SPECIFICATIONS FOR 10C 15C 60Ton Process Industrial Water Cooled Chiller For Plastic Injection Molding
|
|||
|
Model
|
TH-220W
|
||
|
Cooling capacity
|
KW
|
219
|
|
|
Kcal/h
|
18834
|
||
|
Tons
|
62.3
|
||
|
Water cooled water chiller screw compressor
|
Type
|
Semi-hermetic screw
|
|
|
Power
|
kw
|
54
|
|
|
Refrigerant
|
R407c/R134a/R22
|
||
|
Evaporator
|
Shell and tube
|
||
|
Chilled flow rate
|
M3/h
|
37.5
|
|
|
Condenser
|
Shell and tube
|
||
|
Cooling flow need
|
M3/h
|
51.5
|
|
|
Screw compressor water cooeld water chiller dimension
|
mm
|
2800*800*1500
|
|
10C 15C 60Ton Process Industrial Water Cooled Chiller For Plastic Injection Molding
(1). Outlet water temperature : 5deg C~30deg C
(2). Brand screw type compressor: Hanbell, ,, RefComp for options
(3). Electric power supply available : 3phase-220v/380v/415v/460v-50Hz/60Hz
| Model | TH-90W | TH-125W | TH-165W | TH-180W | TH-220W | TH-240W | TH-280W | |
| Capacity | USRT | 26.2 | 35.8 | 46.6 | 50.3 | 62.3 | 67.1 | 79.6 |
| Kcal/h | 79120 | 108360 | 141040 | 152220 | 188340 | 202960 | 240800 | |
| KW | 92 | 126 | 164 | 177 | 219 | 236 | 280 | |
| Power | 3PH-380V-50Hz | |||||||
| Refrigerant | Type | R22 | ||||||
| Control | Thermostatic expansion valve | |||||||
| Comperssor | Type | Semi-closed screw type | ||||||
| kw Power | 23 | 32 | 39 | 42 | 54 | 57.5 | 65 | |
| Start | Y-△ | |||||||
| Capacity | 25-50-75-100(%) or 25-100(%) | |||||||
| Evaporator | Type | High efficiency copper tube shell and tube type | ||||||
| m³/h Flow | 15.8 | 21.6 | 28.1 | 30.3 | 37.5 | 40.5 | 48.0 | |
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | |
| Condenser | Type | High efficiency threaded copper tube shell and tube type | ||||||
| m³/h Flow | 21.7 | 29.8 | 38.3 | 41.3 | 51.5 | 55.3 | 65.1 | |
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||
| Dimension | L | 2300 | 2500 | 2500 | 2500 | 2800 | 2800 | 3200 |
| W | 750 | 750 | 750 | 750 | 800 | 800 | 800 | |
| H | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Weight | kg | 660 | 700 | 800 | 975 | 1000 | 1150 | 1250 |
Compressor features:
New screw type compressor with 20%-30% higher in efficiency.
Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
High efficiency, low noise and vibration, easy to install.
Environmental protection refrigerant R134a, R407c, R404a available.
Two sets screw compressor for one air cooled screw chiller, each can work independently , to save energy and safety production.
Control operation system:
SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function:
Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.
1- This series chiller can be produced with 1 or 2 compressors, if customers want 2 compressors, please inform us, standard chiller is 1 compressor.
1). Installed at good air circulation place
2). Chiller design waterproof, put outside without roof
3). Pipe connection design smooth
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with famous brand shipping companies whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
