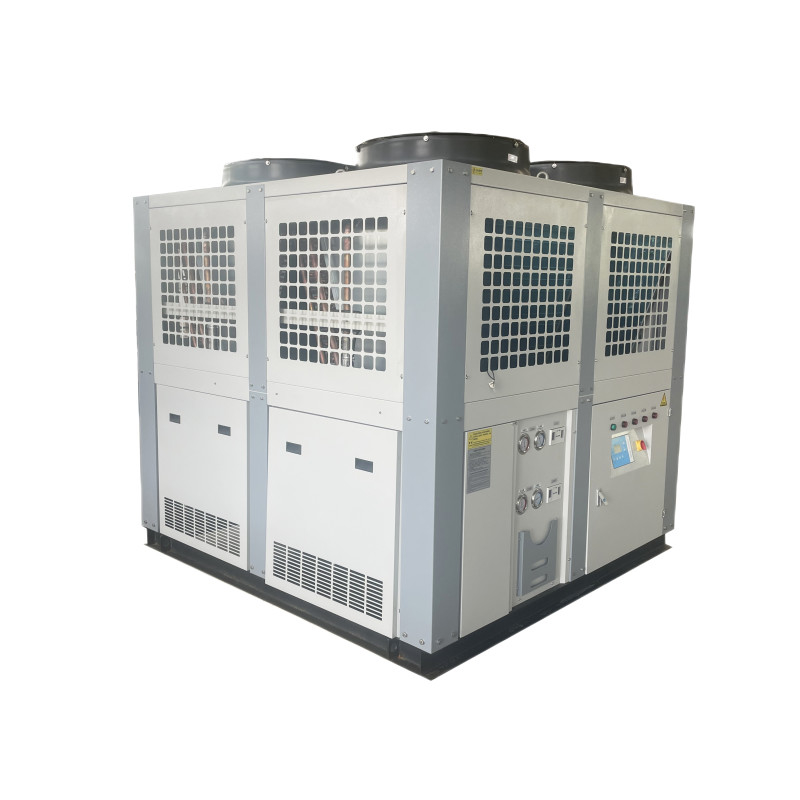

Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton
  • Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton
  • Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton
  • Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton
  • Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton
  • Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton

Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton

Place of Origin China
Brand Name TAICH
Certification CE
Model Number TC
Product Details
Keywords:
Water Cooled Water Chiller System
Cooling Capacity:
220Kw
Compressor Power:
73kw
Compressor Type:
Semi-hermetic Screw Type
Chilled Water Flow:
38 M3/h
Condenser:
Fan + Finned
Refrigerant:
R134a/R407c/R22
Industry Application:
Battery Processing Factory Sulfuric Acid Anodizing System
Voltage:
3Ph-380V-50HZ
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
US$200.00~US$20000.00
Packaging Details
Plywood Case
Delivery Time
Within 3 days if stock;Within 15 Working days if no stock
Payment Terms
50% Down payment, the balance payment before delivery
Supply Ability
300 Sets / Month
Product Description

Plastic Injection Air And Water Cooled Water Chiller System

Design of Plastic Injection Air And Water Cooled Water Chiller System

(1). Design waterproof ,suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel, flange connection
(7). All the parts with motor such as compressor. pump, fans has UL certification, and also include UL certified Schneider electric components.

Specification list for Plastic Injection Air And Water Cooled Water Chiller System

(1). Outlet water temperature : 5C~30C
(2). Brand screw type compressor: Fusheng UL compressor
(3). Electric power supply available : 3phase-208volts,60hz



Model
TH-150A
TH-170A
TH-200A
Cooling capacity
125 KW @ 0 C outlet
135KW @ 0 C outlet
180KW @ 0 C outlet
100KW @ -5 C outlet
112 KW @ -5 C outlet
150KW @ -5 C outlet
142KW @ +7 C outlet
165KW @ +7 C outlet
220KW @ +7C outlet
Power
3 Phase- 380V- 50HZ or based on different country need
Refrigerant
R22 / R407c / R134a / R410a /R404a
Compressor
Semi-hermetic screw type
52 kw
55 kw
72 kw
Chilled water flow rate
24m3/h
26 m3/h
34 m3/h
Inlet / Outlet
DN 80
DN 80
DN 80
Condenser air flow
50000 m3/h
60000 m3/h
80000 m3/h
Dimension (mm)
3300*1740*2100
3300*1740*2300
2500*2300*2400
Weight ( kg )
2300
2480
3200

Specification details Of Plastic Injection Air And Water Cooled Water Chiller System

Design condition: Under standard atmospheric pressure, evaporating temp. 2℃, outlet water temp. 7℃, condensing temp. 45℃, superheat temp. 5℃, supercooling temp. 5℃.
1.The new imported brand compressor built-in large-flow large pump is equipped with 304 stainless steel expansion tank, and installs automatic water supply device, excellent throttling technology, perfect combination of high-efficiency copper fin condenser and shell-tube evaporator, let the unit Extraordinary perfection.
2. Easy to install Cleaning is easy to move and flexible, effectively saving time for customers and improving work efficiency.
3, all-metal paint frame, anti-rust anti-vibration, low noise, high-efficiency heat transfer material, high
Energy efficiency ratio.
4, user-friendly interface, intelligent control, flexible and flexible, arbitrary, safe and worry-free.

Application Plastic Injection Air And Water Cooled Water Chiller System

Air Cooled Screw Chillers are widely used in many industries like plastic and rubber manufacturing,electronic productions,electroplating,medical chemistry,ultrasonic cooling and printing business,etc.It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality. a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. Regarding to high power industrial chiller,screw type chiller is available.Screw type chiller adopts screw compressor with,high effciency,low noise,durable service,reliable operation.

Differemt size of Plastic Injection Air And Water Cooled Water Chiller System

(1). Outlet water temperature : 5C~30C
(2). Brand screw type compressor: Hanbell, , Fusheng,Daikin, Hitachi
(3). Electric power supply available : 3phase-208V/380/415/460-50HZ or 60HZ



Air Cooled Screw Chiller Normally Temperature Series( Single System)
Model TH-80A TH-100A TH-150A TH-170A TH-250A TH-300A TH-450A TH-530A

Cooling Capacity
USRT 22.2 31.0 40.4 46.9 76.8 93.8 127.9 150.7
Kcal/h 67080 93740 122120 141900 232200 283800 387000 455800
KW 78 109 142 165 270 330 450 530
Power 3PH-380V-50Hz

Refrigerant
Type R22/R407C
Control Thermostatic expansion valve

Comperssor
Type semi-closed screw type
kw Power 29 38 48 55 86 106 142 165
Start Y-△
Capacity 25%-50%-75%-100%

Evaporator
Type High efficiency copper tube shell and tube type
m³/h Flow 13 19 24 28 46 57 77 91

Inlet/outlet
DN65 DN65 DN80 DN80 DN80 DN80 DN100 DN100

Condenser
Type High efficiency hydrophilic aluminum foll finned type
m³/h Flow 27000 40000 50000 60000 100000 120000 150000 180000
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.

Dimension
L(mm) 2350 3200 3200 3300 4400 3850 4750 5850
W(mm) 1450 1450 1450 2300 2300 2200 2200 2200
H(mm) 2150 2150 2150 2400 2400 2350 2450 2450
Wight kg 1800 1900 2300 2480 3800 3300 4000 5000



Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton 0Plastic Injection Air And Water Cooled Water Chiller System 40 Ton 50 Ton 1
