| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

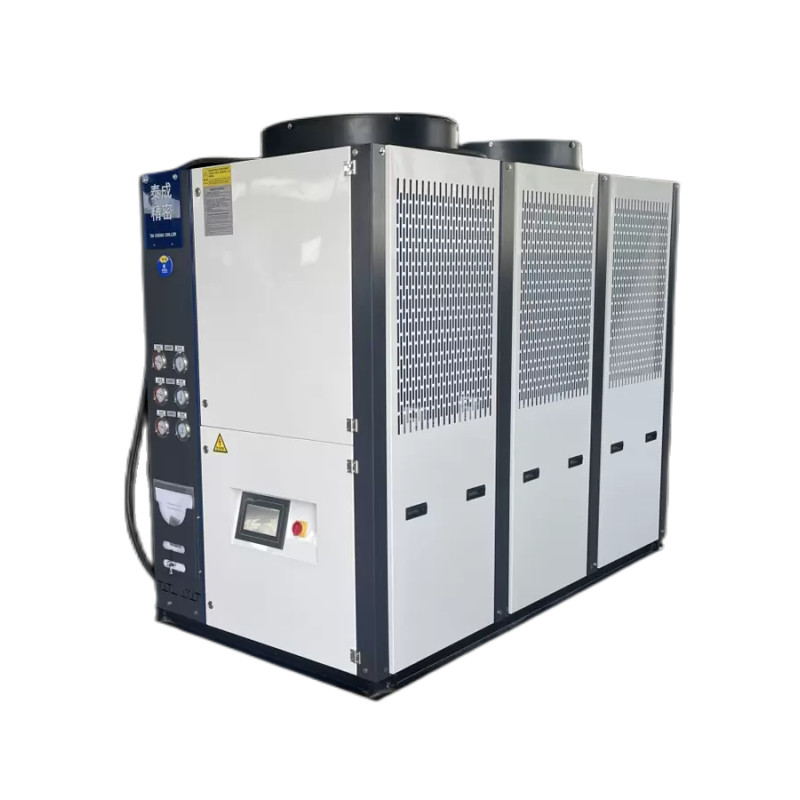

25HP +7 C Air Cooled Industrial Water Chiller For Molding Machine
1.Product Description
(1). Electric box design with water leakage protection, chiller could be placed outside without roof.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel
1.Imported branded compressor from USA(Copeland) and Japan(Panasonic and Denmark(Danfoss), built in safety protection, low noise, power-saving and durability.
2. Adpopt SCHNEIDER electrical components, featuring stability and long service life.
3. Italian water pump with big flow, high efficiency and durability.
4. Imported precise digital temperature controller with LCD display, controlling the water temperature as accurate as ±1℃ from -5℃~30℃. Auto test and analysis function by displaying working condition in Chinese and English for easy operation and supervision.
5.Stainless steel tank evaporator with built in auto filling water devices, convenient for clean and maintenance.
6.Air cooled industrial chiller equipped with finned copper by the warped and ranked copper pipe, taking the two flanging warped pieces machinery technology and advanced heat exchange production line. It is assure the high efficiency and quality.
7.Optional environmental protection refrigerant R404A, R134a, R407c.
8.Customized chiller with special power supply voltage.
Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons
Horse power : 5hp~50hp
Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel
Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz
|
Model
|
Unit
|
TH-20A
|
TH-25A
|
|
Cooling capacity
|
Kw @ +7 degree C outlet
|
55.3
|
63.2
|
|
Kw @ -5 degree C outlet
|
37.6
|
43
|
|
|
Input power
|
kW
|
21.27
|
24.36
|
|
Refrigerant
|
R 22 / R410a /R407C
|
||
|
Compressor
|
Scroll type
|
||
|
Quantity
|
2
|
2
|
|
|
Power (kw)
|
9.05*2
|
10.6*2
|
|
|
Chilled Water Flow
|
m3/h
|
9.48
|
10.83
|
|
Condenser
|
Air Cooled Type , adopt fan make cooling
|
||
|
Pump
|
Kw
|
1.5
|
1.5
|
|
Dimension
|
mm
|
2100*1000*1700
|
2100*1000*1700
|
|
Weight
|
KG
|
850
|
900
|
5. Details Images
The cycle starts with the evaporator, which has a liquid refrigerant that flows over the evaporator tube bundle where it evaporates. In the process, heat is absorbed from the chilled water circulating through the bundle. The compressor then pulls the refrigerant vapor from the evaporator. The compressor is then tasked with pumping the refrigerant vapor to the condenser, which increases temperature and pressure. The refrigerant condenses when it's in the condenser tubes, releasing its internal heat to the air . The high-pressure liquid then moves through the expansion device and into the evaporator; in the process the refrigerant pressure is reduced along with the temperature. To complete the continuous cycle, the refrigerant flows back over the chilled water coils and absorbs more heat.
| Model | TH-15A | TH-20A | TH-25A | TH-30A | TH-40A | TH-50A | |
Cooling capacity |
Kcal/h | 35948 | 47558 | 54352 | 71896 | 94256 | 107844 |
| kw | 41.8 | 55.3 | 63.2 | 83.6 | 109.6 | 125.4 | |
| power | kw | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | 49.65 |
| Power input | 3PH-380V-50HZ | ||||||
| Refrigerant | Type | R22/R407C/R410A | |||||
| Control | Thermostatic expansion valve( Capillary) | ||||||
| Compressor | Type | Hermetic scroll type | |||||
| kw Power | 4.54*3 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | 10.6*4 | |
Evaporator |
Type | ||||||
| m³/h Flow | 7.17 | 9.48 | 10.83 | 14.33 | 18.79 | 21.50 | |
| Capacity(L) | 270 | 350 | 350 | 450 | 580 | 580 | |
pipe diameter of chilled water |
DN40 | DN40 | DN50 | DN65 | DN65 | DN65 | |
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||
| kw power | 0.55*2 | 0.78*2 | 0.78*2 | 1.32*2 | 0.78*4 | 0.78*4 | |
| pump | Type | Centrigual water pump | |||||
| kw Power | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |
| m Lift | 20 | 20 | 20 | 21 | 20 | 19 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
| Dimension | mm L | 1800 | 2100 | 2100 | 2200 | 2000 | 2000 |
| mm W | 1000 | 1000 | 1000 | 1160 | 2000 | 2000 | |
| mm H | 1600 | 1700 | 1700 | 1900 | 1750 | 1750 | |
| Wight | kg | 750 | 850 | 900 | 1150 | 1350 | 1600 |
7. Application
1).Plastics industry chiller
2).Electronic industry chiller
3).Electroplating industry chiller
4).Mechanical industry chiller
5).Building industry chiller
6).Vacuum coating chiller
7)Food industry chiller
8).Chemical fiber industry chiller
9).Beverage industry chiller
