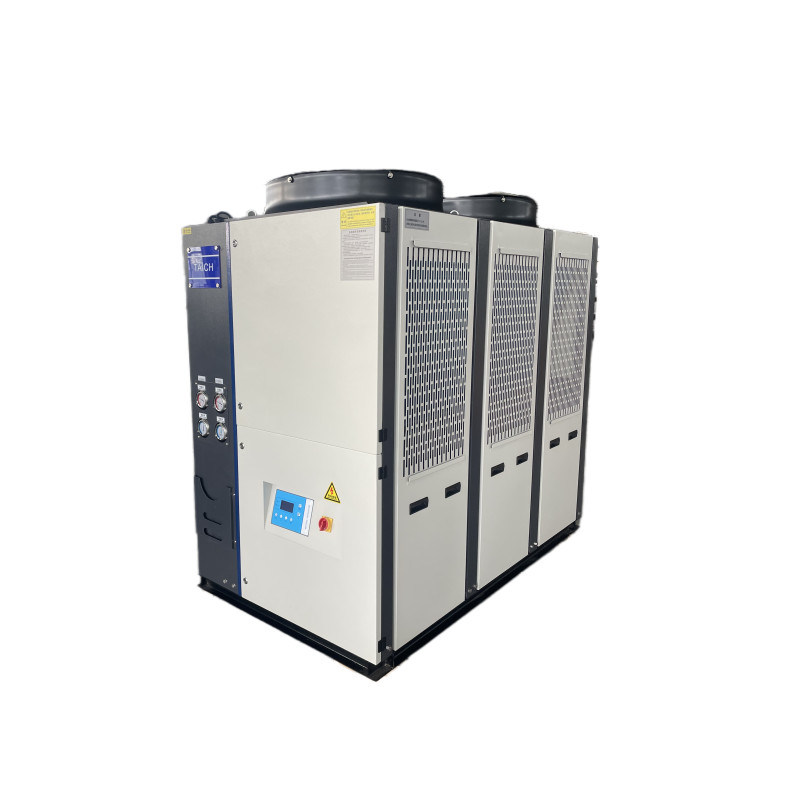

Industrial Processing Presses Machine / Mixing Mill Machine Chiller Air Cooled Water Chiller
1.Application Of Industrial Processing Presses Machine / Mixing Mill Machine Chiller Air Cooled Water Chiller
Industrial Processing Presses Machine / Mixing Mill Machine Chiller Air Cooled Water Chiller are applicable for cooling mould to reduce products molding cycle, also they are available in the cooling of equipment in order to maintain a normal temperature. Besides, they are suitable for other industries with the need of cooling.
All models are equipped with compressor and motor overload protection, phase shortage and reversal alarms, anti-freeze thermostat, pressure gauges, etc. They feature excellent performance and long lifespan. The series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.
2.Technical Of Industrial Processing Presses Machine / Mixing Mill Machine Chiller Air Cooled Water Chiller
Industrial Processing 21Kw 5 tons Air Cooled Water Chiller for Printing Machine
Model: TH-12A
Refrigerating Capacity: 31KW / 26660kcal/h
Compressor type: Scroll
Compressor power: 2 sets of 5.4kw/6hp
Refrigerant: R22 (R407 optional)
Refrigerant control mode: Thermostatic expansion valve
Evaporator: Tube-in-shell
Condenser: Finned copper tube with low noise axial fan
Water tank capacity: 200L
Pump type: Stainless steel centrifugal pump
Pump power: 0.75kw
Pump flow: 5.31m3/h
Chilled water outlet:DN32
Chilled water inlet: DN32
Temperature range: +5℃~+35℃
Tolerance: ±0.5℃
L*W*H: 1560*850*1500mm
Weight: 500kg
Protections: high and low pressure controller/anti-freezing switch/overload protection/overheat protection/delayed protection.
3.Details Show Of Industrial Processing Presses Machine / Mixing Mill Machine Chiller Air Cooled Water Chiller
| Model | TH-1A | TH-2A | TH-3A | TH-5A | TH-6A | TH-8A | TH-10A | TH-12A | TH-15A | TH-20A | TH-25A | TH-30A | TH-40A | TH-50A | |
Cooling capacity |
Kcal/h | 2322 | 4472 | 7310 | 11266 | 13115 | 17458 | 24510 | 26660 | 35948 | 47558 | 54352 | 71896 | 94256 | 107844 |
| kw | 2.7 | 5.2 | 8.5 | 13.1 | 15.3 | 20.3 | 28.5 | 31.0 | 41.8 | 55.3 | 63.2 | 83.6 | 109.6 | 125.4 | |
| power | kw | 1.42 | 2.4 | 3.53 | 5.61 | 6.64 | 8.52 | 10.83 | 12.53 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | 49.65 |
| Power input | 1PH-220V-50Hz | 3PH-380V-50HZ | |||||||||||||
| Refrigerant | Type | R22/R407C | |||||||||||||
| Control | Thermostatic expansion valve( Capillary) | ||||||||||||||
| Compressor | Type | Hermetic scroll type | |||||||||||||
| kw Power | 0.88 | 1.7 | 2.95 | 4.54 | 5.4 | 3.6*2 | 4.54*2 | 5.4*2 | 4.54*3 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | 10.6*4 | |
Evaporator |
Type | SS Tank with coil or Shell and tube | |||||||||||||
| m³/h Flow | 0.46 | 0.89 | 1.46 | 2.25 | 2.61 | 3.48 | 4.89 | 5.31 | 7.17 | 9.48 | 10.83 | 14.33 | 18.79 | 21.50 | |
| Capacity(L) | 20 | 40 | 50 | 70 | 70 | 120 | 200 | 200 | 270 | 350 | 350 | 450 | 580 | 580 | |
pipe diameter of chilled water |
DN25 | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 | DN40 | DN40 | DN50 | DN65 | DN65 | DN65 | |
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||
| kw power | 0.15 | 0.19 | 0.24 | 0.52 | 0.52 | 0.24*2 | 0.46*2 | 0.46*2 | 0.55*2 | 0.78*2 | 0.78*2 | 1.32*2 | 0.78*4 | 0.78*4 | |
| pump | Type | Centrigual water pump | |||||||||||||
| kw Power | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |
| m Lift | 19 | 18 | 24 | 25 | 24 | 20 | 20 | 20 | 20 | 20 | 20 | 21 | 20 | 19 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||
| Dimension | mm L | 500 | 600 | 1200 | 1300 | 1200 | 1400 | 1560 | 1560 | 1800 | 2100 | 2100 | 2200 | 2000 | 2000 |
| mm W | 500 | 600 | 600 | 650 | 600 | 800 | 850 | 850 | 1000 | 1000 | 1000 | 1160 | 2000 | 2000 | |
| mm H | 720 | 1150 | 1100 | 1100 | 1100 | 1400 | 1500 | 1500 | 1600 | 1700 | 1700 | 1900 | 1750 | 1750 | |
| Wight | kg | 70 | 110 | 150 | 200 | 230 | 310 | 450 | 500 | 750 | 850 | 900 | |||
4.Features Of Industrial Processing Presses Machine / Mixing Mill Machine Chiller Air Cooled Water Chiller
1. Cooling range 5~35℃ .
2. Adopts stainless steel made insulated water tank and evaporator.
3. Equipped with anti-freeze thermostat.
4. Heavy duty 3-phase pump ensures no blockages and high torque.
5. Refrigerant loop controlled by high and low pressure switches.
6. R22 refrigerant is used as standard and optional R407 for efficient cooling.
7. Refrigeration loop controlled by high and low pressure switches.
8. Compressor and pump overload relays.
9. Adopt imported temperature controller maintains an accuracy of ±0.5℃.
10. All adopt imported compressors.
11. Compact design,easy to operate and maintain.
12. Low pressure pumps are standard configurations,while middle or high pressure pumps are optionally available.
13. Level meter of water tank is available as an option.
14. Expansion valve for accurate adjustment of refrigerant.
15. Mgreenbelt water-cooled type adopts tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
