| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |
-20C/-15C Low Temperature Water Cooled Chiller for Chemical Industry
1). We promise all of our water cooled screw chiller partds is from the manufacturer factory, 100% new and qualitied by supplier;
2). We promise all of the chiller will make at least 3 times test before package, insure all components and equipment 100% working well when delivery.
3).We promise will manufacture the product based on our contract, all material based on our contract.

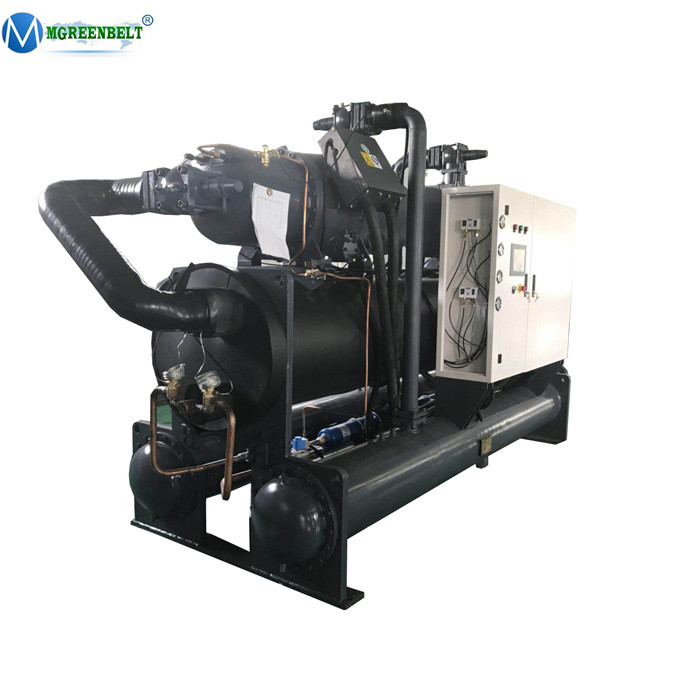

Details Image of -20C/-15C Low Temperature Water Cooled Chiller for Chemical Industry
| Screw Water Cooling Chiller(Double Unit)Series | |||||||
| Model | TH-250W | TH-350W | TH-500W | TH-550W | TH-620W | ||
| Cooling capacity | -15℃ | kw | 118.6 | 167.5 | 224.2 | 264.3 | 295.0 |
| -20℃ | kw | 96.3 | 136.0 | 182.7 | 215.0 | 238.9 | |
| -25℃ | kw | 77.0 | 108.7 | 145.7 | 172.2 | 191.5 | |
| Power Supply | 3PH-380V-50Hz | ||||||
Refrigerant |
Type | R22 | |||||
| Control | Thermostatic expansion valve | ||||||
Compressor |
Type | Semi-closed screw type | |||||
| kw power | 56.0 | 77.4 | 101.2 | 114.8 | 125.0 | ||
| Start | Y-△ | ||||||
| Capacity | 25-50-75-100(%) or 25-100(%) | ||||||
Evaporator |
Type | High efficiency copper tube shell and tube type | |||||
| m³/h Flow |
0℃ | 20.3 | 28.7 | 38.4 | 45.3 | 50.6 | |
| -5℃ | 16.5 | 23.3 | 31.3 | 36.9 | 41.0 | ||
| -10℃ | 13.2 | 18.6 | 25.0 | 29.5 | 32.8 | ||
| Inlet/Outlet | DN100 | DN100 | DN125 | DN125 | DN150 | ||
Condenser |
Type | High efficiency threaded copper tube shell and tube type | |||||
| m³/h Flow | 32.9 | 46.2 | 61.4 | 71.5 | 79.2 | ||
| Inlet/Outlet | DN100 | DN100 | DN125 | DN125 | DN80*2 | ||
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
Dimension |
L | mm | 2500 | 3500 | 4000 | 4000 | 4000 |
| W | mm | 900 | 900 | 900 | 1000 | 1000 | |
| H | mm | 1500 | 1500 | 1500 | 1800 | 1800 | |
| dB Noise | 73.1 | 74.8 | 79.0 | 79.2 | 80.4 | ||
| kg Weight | 1120 | 1450 | 1700 | 1900 | 2150 | ||
-20C/-15C Low Temperature Water Cooled Chiller for Chemical Industry Advanced Compressor
• Unit adopts Germany or Taiwan HANBELL or Shanghai FUSHENG brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Most advanced patented highest precision manufacturing process.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
-20C/-15C Low Temperature Water Cooled Chiller for Chemical Industry Microcomputer Control System
• Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.
• Easy Installation, Reliable Running
-20C/-15C Low Temperature Water Cooled Chiller for Chemical Industry Features
• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.
Provide all required parts for one complete cooling system
| Description | Quantity (SET) | |
| Water cooled chiller | 1 | |
| Chilled water pump ( one use, one standby) | 2 | |
| Cooling water pump( one use one standby) | 2 | |
| Cooling tower | 1 | |
| Water tank(ss304) | 1 | |
