Industrial Water Chillers
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |
Features of Kazakhstan Natural Gas Cooling Heat Exchanger Included 30HP 83Kw Air Cooled Chiller
1). Chilled water temperature range 5ºC to 35ºC.
2).Two type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
5) .Iron and stainless steel pump for different option
6). Microcomputer control system offering accurate temperature stability within ±1ºC
6). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection
,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
(1). Electric and case design waterproof , no rusty, oudoor use workable, no need any shelter
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
|

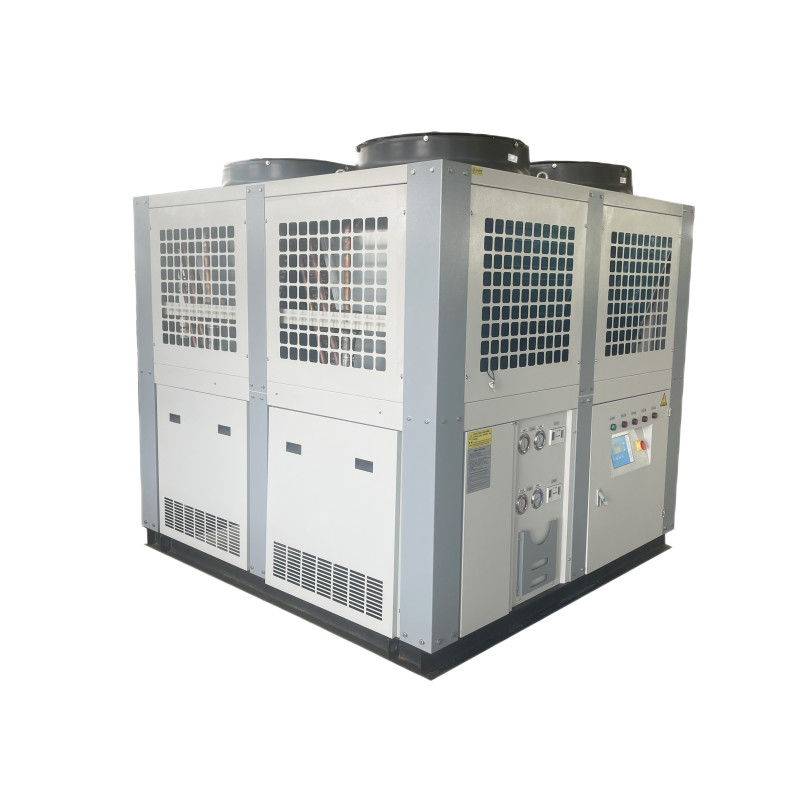

30hp Industrial Air Cooled Water Chiller
|
|||
|
Model
|
TH-30A
|
||
|
Electric Power Supply
|
3Phase-220V/380V/415V/460V-50HZ/60HZ
|
||
|
Outlet water temperature control
|
5 deg C ~ +30 deg C
|
||
|
Input power
|
KW
|
32.33
|
|
|
Cooling capacity
|
Tons
|
23
|
|
|
KW
|
83.6
|
||
|
Kcal/hr
|
71896
|
||
|
Compressor
|
Type
|
Scroll type
|
|
|
Quantity
|
3
|
||
|
Power (kw)
|
9.05*3
|
||
|
Refrigerant
|
Type
|
R22/R407C/R410A
|
|
|
Control of refrigerant
|
Emerson expansion valve
|
||
|
Evaporator
|
Type
|
High efficient Shell and tube
|
|
|
Chilled water flow(m3/h)
|
14.33
|
||
|
Inlet/oulet pipe dia.(inch)
|
2-1/2"
|
||
|
Condenser
|
Type
|
High efficient red copper tube plate fins
|
|
|
Fans
|
Fan motor(kw)
|
0.75*3
|
|
|
Air volume(m3/h)
|
30000
|
||
|
Water pump
|
Motor power(kw)
|
2.2
|
|
|
Head lift(m)
|
20
|
||
|
Machine size
|
Length(mm)
|
2500
|
|
|
Width(mm)
|
1200
|
||
|
Height(mm)
|
1800
|
||
|
N.W
|
KG
|
1150
|
|
Different optional of Kazakhstan Natural Gas Cooling Heat Exchanger Included 30HP 83Kw Air Cooled Chiller
| Model | TH-1A | TH-2A | TH-3A | TH-5A | TH-6A | TH-8A | TH-10A | TH-12A | TH-15A | TH-20A | TH-25A | TH-30A | TH-40A | TH-50A | |
Cooling capacity |
Kcal/h | 2322 | 4472 | 7310 | 11266 | 13115 | 17458 | 24510 | 26660 | 35948 | 47558 | 54352 | 71896 | 94256 | 107844 |
| kw | 2.7 | 5.2 | 8.5 | 13.1 | 15.3 | 20.3 | 28.5 | 31.0 | 41.8 | 55.3 | 63.2 | 83.6 | 109.6 | 125.4 | |
| power | kw | 1.42 | 2.4 | 3.53 | 5.61 | 6.64 | 8.52 | 10.83 | 12.53 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | 49.65 |
| Power input | 1PH-220V-50Hz | 3PH-380V-50HZ | |||||||||||||
| Refrigerant | Type | R22/R407C | |||||||||||||
| Control | Thermostatic expansion valve( Capillary) | ||||||||||||||
| Compressor | Type | Hermetic scroll type | |||||||||||||
| kw Power | 0.88 | 1.7 | 2.95 | 4.54 | 5.4 | 3.6*2 | 4.54*2 | 5.4*2 | 4.54*3 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | 10.6*4 | |
Evaporator |
Type | SS Tank with coil or Shell and tube | |||||||||||||
| m³/h Flow | 0.46 | 0.89 | 1.46 | 2.25 | 2.61 | 3.48 | 4.89 | 5.31 | 7.17 | 9.48 | 10.83 | 14.33 | 18.79 | 21.50 | |
| Capacity(L) | 20 | 40 | 50 | 70 | 70 | 120 | 200 | 200 | 270 | 350 | 350 | 450 | 580 | 580 | |
pipe diameter of chilled water |
DN25 | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 | DN40 | DN40 | DN50 | DN65 | DN65 | DN65 | |
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||
| kw power | 0.15 | 0.19 | 0.24 | 0.52 | 0.52 | 0.24*2 | 0.46*2 | 0.46*2 | 0.55*2 | 0.78*2 | 0.78*2 | 1.32*2 | 0.78*4 | 0.78*4 | |
| pump | Type | Centrigual water pump | |||||||||||||
| kw Power | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |
| m Lift | 19 | 18 | 24 | 25 | 24 | 20 | 20 | 20 | 20 | 20 | 20 | 21 | 20 | 19 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||
| Dimension | mm L | 500 | 600 | 1200 | 1300 | 1200 | 1400 | 1560 | 1560 | 1800 | 2100 | 2100 | 2200 | 2000 | 2000 |
| mm W | 500 | 600 | 600 | 650 | 600 | 800 | 850 | 850 | 1000 | 1000 | 1000 | 1160 | 2000 | 2000 | |
| mm H | 720 | 1150 | 1100 | 1100 | 1100 | 1400 | 1500 | 1500 | 1600 | 1700 | 1700 | 1900 | 1750 | 1750 | |
| Wight | kg | 70 | 110 | 150 | 200 | 230 | 310 | 450 | 500 | 750 | 850 | 900 | 1150 | 1350 | 1600 |
Chiller Widely used in many different industries:
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
Medical – MRI, PET scan, CT scan, linear accelerator, electron microscope, etc
Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc
Paper and related – printing machine, labelling machine, cardboard making, plastic film machine, etc
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc
Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Payment-Production-Testing --Balance Payment- Packing &Delivery--Documents Dispature- Assist of custom-cleaing --Instruction of Installation&Operation-Feedback.
Technical service
1.We calculate the capacity and recommend the best models.
2.We design and develop the new products according to your requirement besides our standard products.
3.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4.We supply the spare parts and technical support in & after the warranty time.
5.We supply the training course to your workers at our factory if you need.
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.
Packing & Delivery
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
