Industrial Water Chillers
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

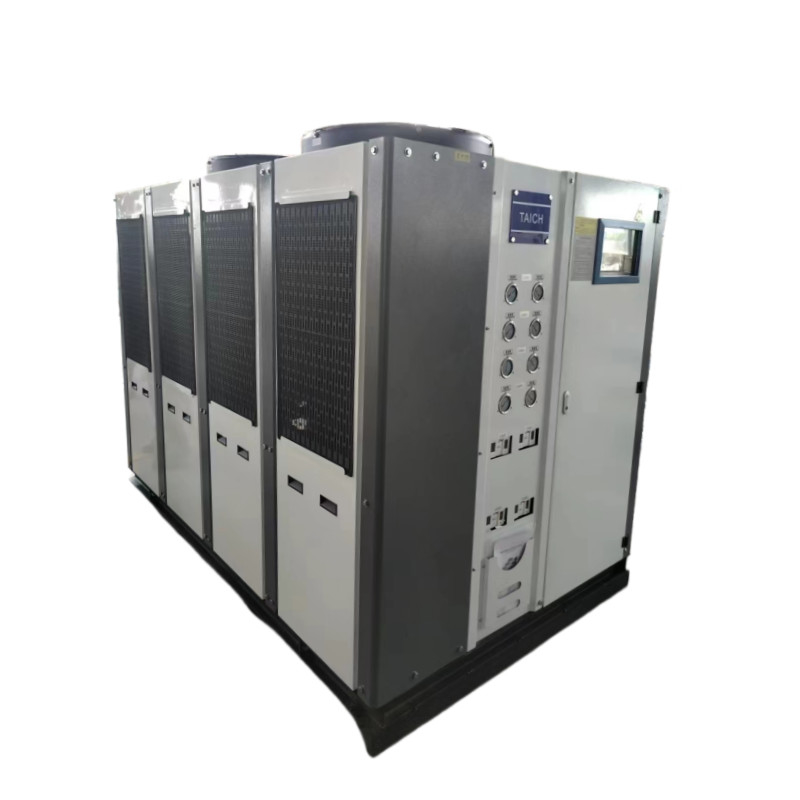

Extrusion Molding 165 Kw 10 C Air Cooled Screw Water Chiller 50 Ton
(1). Design waterproof ,suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel, flange connection
(7). All the parts with motor such as compressor. pump, fans has UL certification, and also include UL certified Schneider electric components.
(1). Outlet water temperature : 5C~30C
(2). Brand screw type compressor: Fusheng UL compressor
(3). Electric power supply available : 3phase-208volts,60hz
|
SPECIFICATIONS FOR Extrusion Molding 165 Kw 10 C Air Cooled Screw Water Chiller 50 Ton
|
|||
|
Model
|
Unit
|
TH-200A
|
TH-285A
|
|
Cooling capacity
|
Kw
|
220
|
285
|
|
Kcal /h
|
189200
|
245100
|
|
|
Tons
|
62
|
81
|
|
|
Power Supply
|
3 Phase-208V/220V/380V/440V/460V/480V-50HZ/60HZ
|
||
|
Refrigerant
|
Type
|
R22 / R407c /R134a /R404a / R410 a
|
|
|
Control type
|
Thermostatic expansion valve
|
||
|
Compressor
|
Type
|
Semi-hermetic screw
|
|
|
Power( kw)
|
73
|
94
|
|
|
Quantity
|
1
|
2
|
|
|
Evaporator
|
Type
|
High efficiency copper shell and tube
|
|
|
Flow rate ( m3/h )
|
38
|
49
|
|
|
Inlet / outlet
|
DN 80
|
DN 100
|
|
|
Condenser
|
Type
|
Aluminum foll finned
|
|
|
Air flow ( m3/h )
|
80000
|
10000
|
|
|
Dimension
|
mm
|
3300*2200*2300
|
4400*2200*2300
|
|
Weight
|
kg
|
3200
|
3800
|
Design condition: Under standard atmospheric pressure, evaporating temp. 2℃, outlet water temp. 7℃, condensing temp. 45℃, superheat temp. 5℃, supercooling temp. 5℃.
1.The new imported brand compressor built-in large-flow large pump is equipped with 304 stainless steel expansion tank, and installs automatic water supply device, excellent throttling technology, perfect combination of high-efficiency copper fin condenser and shell-tube evaporator, let the unit Extraordinary perfection.
2. Easy to install Cleaning is easy to move and flexible, effectively saving time for customers and improving work efficiency.
3, all-metal paint frame, anti-rust anti-vibration, low noise, high-efficiency heat transfer material, high
Energy efficiency ratio.
4, user-friendly interface, intelligent control, flexible and flexible, arbitrary, safe and worry-free.
Air Cooled Screw Chillers are widely used in many industries like plastic and rubber manufacturing,electronic productions,electroplating,medical chemistry,ultrasonic cooling and printing business,etc.It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality. a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. Regarding to high power industrial chiller,screw type chiller is available.Screw type chiller adopts screw compressor with,high effciency,low noise,durable service,reliable operation.
(1). Outlet water temperature : 5C~30C
(2). Brand screw type compressor: Hanbell, , Fusheng,Daikin, Hitachi
(3). Electric power supply available : 3phase-208V/380/415/460-50HZ or 60HZ
| Air Cooled Screw Chiller Normally Temperature Series( Single System) | |||||||||
| Model | TH-80A | TH-100A | TH-150A | TH-170A | TH-250A | TH-300A | TH-450A | TH-530A | |
Cooling Capacity |
USRT | 22.2 | 31.0 | 40.4 | 46.9 | 76.8 | 93.8 | 127.9 | 150.7 |
| Kcal/h | 67080 | 93740 | 122120 | 141900 | 232200 | 283800 | 387000 | 455800 | |
| KW | 78 | 109 | 142 | 165 | 270 | 330 | 450 | 530 | |
| Power | 3PH-380V-50Hz | ||||||||
Refrigerant |
Type | R22/R407C | |||||||
| Control | Thermostatic expansion valve | ||||||||
Comperssor |
Type | semi-closed screw type | |||||||
| kw Power | 29 | 38 | 48 | 55 | 86 | 106 | 142 | 165 | |
| Start | Y-△ | ||||||||
| Capacity | 25%-50%-75%-100% | ||||||||
Evaporator |
Type | High efficiency copper tube shell and tube type | |||||||
| m³/h Flow | 13 | 19 | 24 | 28 | 46 | 57 | 77 | 91 | |
Inlet/outlet |
DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | DN100 | |
Condenser |
Type | High efficiency hydrophilic aluminum foll finned type | |||||||
| m³/h Flow | 27000 | 40000 | 50000 | 60000 | 100000 | 120000 | 150000 | 180000 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||
Dimension |
L(mm) | 2350 | 3200 | 3200 | 3300 | 4400 | 3850 | 4750 | 5850 |
| W(mm) | 1450 | 1450 | 1450 | 2300 | 2300 | 2200 | 2200 | 2200 | |
| H(mm) | 2150 | 2150 | 2150 | 2400 | 2400 | 2350 | 2450 | 2450 | |
| Wight | kg | 1800 | 1900 | 2300 | 2480 | 3800 | 3300 | 4000 | 5000 |
