Industrial Water Chillers
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

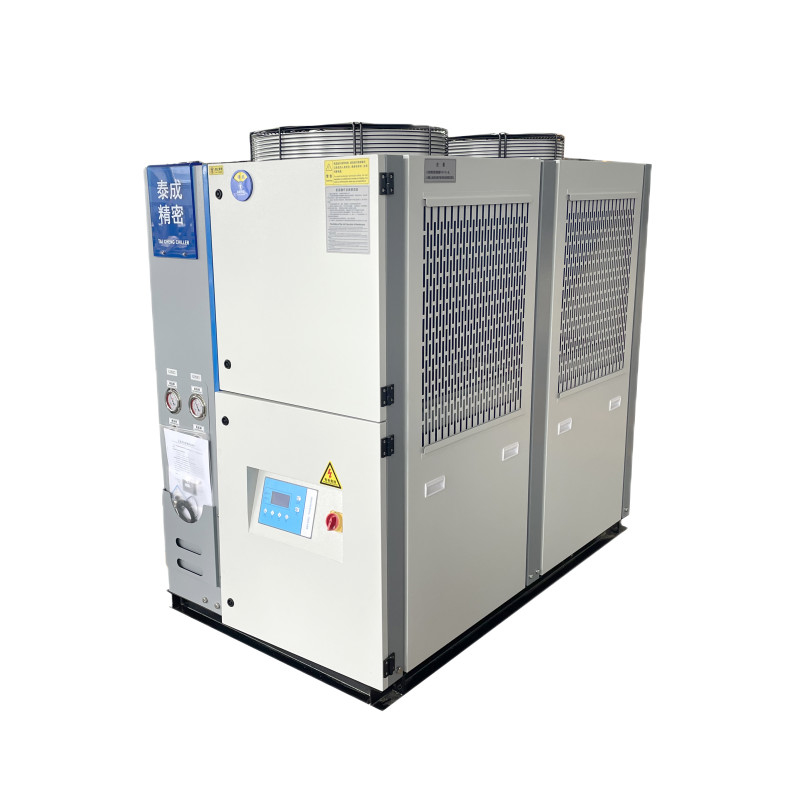

15 Ton 20 Ton Plastic Injection Machine Cooling Air Cooled Water Chiller
(1). Electric box design with water leakage protection, chiller could be placed outside without roof.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Specification Of 15 Ton 20 Ton Plastic Injection Machine Cooling Air Cooled Water Chiller
Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons
Horse power : 5hp~50hp
Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel
Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz
|
SPECIFICATIONS FOR AIR COOLED WATER CHILLER
|
|
|||
|
Model
|
|
TH-30A
|
TH-25A
|
|
|
Total input power
|
kW
|
32.3
|
23.5
|
|
|
Cooling capacity
|
Leaving temp: 7 deg C
Condensing temp: 50 deg C
Ambient temp: 35 deg C
|
KW
|
83.6
|
70.5
|
|
Tons
|
24
|
20
|
||
|
Kcal/hr
|
71896
|
60620
|
||
|
Electric power supply
|
AC 380-415V, 440-480V, 50HZ/60HZ, 3P
|
|||
|
Compressor
|
Type
|
Hermetic scroll type
|
||
|
Brand
|
Copeland( USA), Danfoss(Denmark), Panasonic( Japan)
|
|||
|
Quantity
|
unit
|
3 or 2
|
2 or 1
|
|
|
Power
|
kW
|
9.05*3
|
9.05*2
|
|
|
Refrigerant
|
Type
|
R-22, R-134A, R-410A, R-407C, R-404A
|
||
|
Control type
|
Thermostatic expansion valve
|
|||
|
Evaporator
|
Type
|
Shell and tube or Plate or Tank with coil
|
||
|
Tank volume
|
Litres
|
450
|
350
|
|
|
Cold water flow
|
m3/hr
|
14.33
|
12.0
|
|
|
Pipe size
|
Water inlet/outlet
|
inch
|
2-1/2"
|
1-1/2"
|
|
Condenser
|
Type
|
High efficiency V type copper tube covered aluminum fins
|
||
|
Air fans
|
Volume
|
m3/h
|
30000
|
25000
|
|
Motor power
|
kW
|
0.75*3
|
0.75*2
|
|
|
Water pump( Built inside chiller)
|
Type
|
Centrifugal Vertical /horizontal type
|
||
|
Power
|
kW
|
2.2
|
1.5
|
|
|
Head pressure
|
bar
|
2.0
|
2.0
|
|
|
Safety protection
|
Chiller safety protection include Compressor over current protection, overload protection, High/low pressure protection ,Phase sequence/phase missing protection,Anti freezing protection,Over temperature protection,Flow switch protection, water level protection
|
|||
|
Chiller size
|
L*W*H
|
mm
|
2500*1200*1800
|
2100*1000*1700
|
|
Net Weight
|
KG
|
|
1150
|
900
|
2.Details Images For 15 Ton 20 Ton Plastic Injection Machine Cooling Air Cooled Water Chiller
1.Imported branded compressor from USA(Copeland) and Japan(Panasonic and Denmark(Danfoss), built in safety protection, low noise, power-saving and durability.
2. Adpopt SCHNEIDER electrical components, featuring stability and long service life.
3. Italian water pump with big flow, high efficiency and durability.
4. Imported precise digital temperature controller with LCD display, controlling the water temperature as accurate as ±1℃ from -5℃~30℃. Auto test and analysis function by displaying working condition in Chinese and English for easy operation and supervision.
5.Stainless steel tank evaporator with built in auto filling water devices, convenient for clean and maintenance.
6.Air cooled industrial chiller equipped with finned copper by the warped and ranked copper pipe, taking the two flanging warped pieces machinery technology and advanced heat exchange production line. It is assure the high efficiency and quality.
7.Optional environmental protection refrigerant R404A, R134a, R407c.
8.Customized chiller with special power supply voltage.
3. Installation for 15 Ton 20 Ton Plastic Injection Machine Cooling Air Cooled Water Chiller
We will supply you the free installation design, with drawing details, from water chiller arrive to user to it can working in your production, we have professional engineer one to one support, so no need worry about installation.
(1).If User side is a closed loop, then please choose our " tank with coil" type chiller.
(2).If user side is a open type loop, please choose our " shell and tube" or "heat exchanger plate" type.
4. Package And Delivery For 15 Ton 20 Ton Plastic Injection Machine Cooling Air Cooled Water Chiller
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
