Low Temperature Glycol Chiller
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

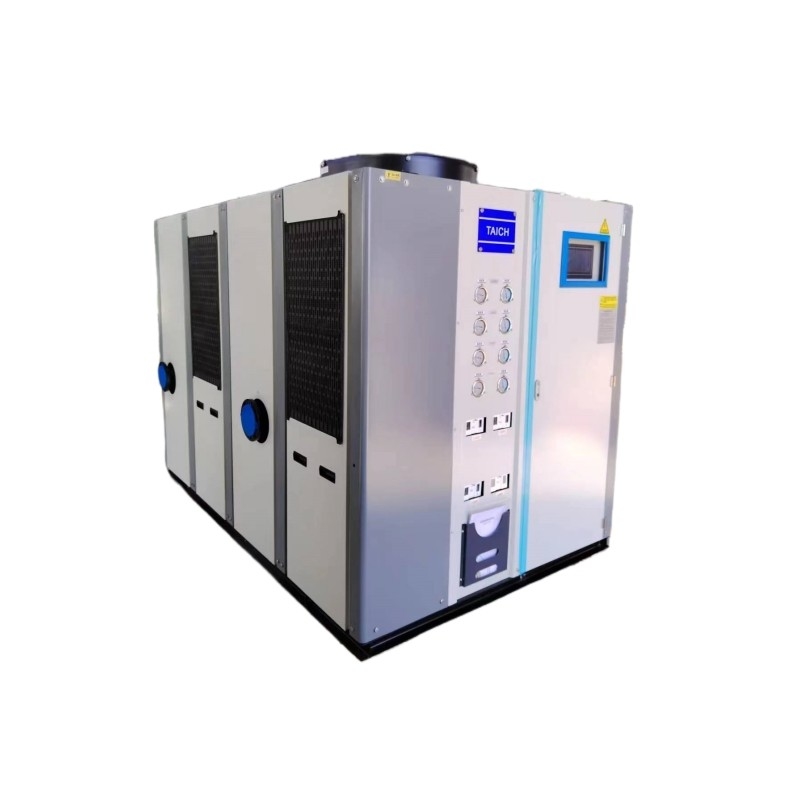

Pasteurizer Cooling 40HP Air Cooled Water Chiller For Fruit Juice
1.Introduction of Water Chiller For Fruit Juice
Design waterproof ,suitable using outside and in house.
Working condition ambient temperature from -20C degree to +50C degre
(1). Outlet temperature range: from -10 deg C to +35 deg C can be control, based on customer need;
(2). Working condition: installed at a good fresh air ventilation place.
(3). Designed water-proof, suitable used outside of factory.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Technical specification of industrial glycol chiller
| Model | TH-10A | TH-20A | TH-40A | |
| Power supply | 3PHASE-208V/380V/440V-50HZ/60HZ | |||
| Water temperature control | -10°C to 30°C | |||
| Input power | kw | 11.3 | 21.5 | 41.8 |
| Cooling capacity | Ton | 3.7 | 7.3 | 15 |
| KW | 12.9 | 25.8 | 53 | |
| KCal/hr | 11092 | 22184 | 45572 | |
| Compressor | Type | Scroll type | ||
| Quantity | 2 | 2 | 2 | |
| Power(kw) | 4.74*2 | 9.12*2 | 9.12*4 | |
| Refrigerant | Type | R404a | ||
| Control type | Expansion Valve | |||
| Evaporator | Type | Shell and tube/Tank with coil | ||
| Water flow(m3/h) | 2.6 | 5.2 | 10.6 | |
| Inlet/outlet Pipe Dia.(mm) | DN32 | DN40 | DN65 | |
| Condenser | Type | Fined copper tube + low noise fans | ||
| Air flow(m3/h) | 10000 | 20000 | 40000 | |
| Water pump | Lift(m) | 20 | 20 | 20 |
| Power(kw) | 0.75 | 1.5 | 1.5 | |
| Machine Size | Length(mm) | 1560 | 2100 | 2350 |
| Width(mm) | 850 | 1000 | 1460 | |
| Height(mm) | 1500 | 1700 | 1900 | |
| Net weight | KG | 450 | 850 | 1350 |
| Protection System |
Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing,Anti-frezing |
|||
3.Detail configuration of Pasteurizer Cooling 40HP Air Cooled Water Chiller For Fruit Juice
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Two type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stinless steel pump for different option
6). Muti- protection devices: oveheating, anti-freezing, overload, phase-sequency, and so on.
Pasteurizer Cooling 40HP Air Cooled Water Chiller For Fruit Juice
Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons
Horse power : 5hp~50hp
Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel
Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz
3. Installation for Pasteurizer Cooling 40HP Air Cooled Water Chiller For Fruit Juice
We will supply you the free installation design, with drawing details, from water chiller arrive to user to it can working in your production, we have professional engineer one to one support, so no need worry about installation.
(1).If User side is a closed loop, then please choose our " tank with coil" type chiller.
(2).If user side is a open type loop, please choose our " shell and tube" or "heat exchanger plate" type.
1).Food and Drinks (Brewery, Winery, Distillery, Beverages, Confectionery, Chocolate, Storage)
2).Plastics (Injection, Blow Molding, Extrusion, Film Extrusion, Thermoforming)
3).Paper (Manufacturer, Printing, Card Board, Labels, Plastic Film)
4).Chemical (Petro Chemical, Paints, Solvents, Temperature Control)
5).Mechanical (Welding, Cutting, Profiling, Polishing, Rolling, Grinding)
6).Other (Wood, Ceramics, Gold & Silver, Pharmaceutical, Textile)
4. Package And Delivery Of Pasteurizer Cooling 40HP Air Cooled Water Chiller For Fruit Juice
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
