| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

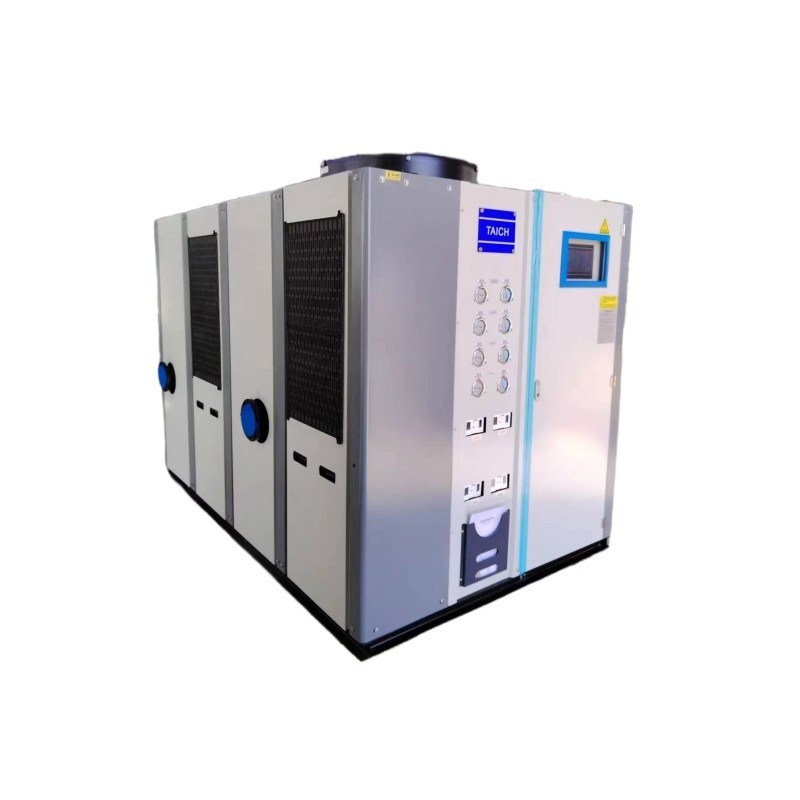

High Grade Industrial 100kw Process Chiller 30 Tons Air Cooled Water Chiller
Features:
(1). Design waterproof ,suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Technical Parameter- High Grade Industrial 100kw Process Chiller 30 Tons Air Cooled Water Chiller:
|
SPECIFICATIONS FOR 30TONs AIR COOLED WATER CHILLER
|
|
|||
|
Model
|
|
TH-30A
|
TH-40A
|
|
|
Total input power
|
kW
|
32.3
|
41.6
|
|
|
Cooling capacity
|
Leaving temp: 7 deg C
Condensing temp: 50 deg C
Ambient temp: 35 deg C
|
KW
|
83.6
|
109.6
|
|
Tons
|
24
|
31
|
||
|
Kcal/hr
|
71896
|
94256
|
||
|
Electric power supply
|
AC 380-415V, 440-480V, 50HZ/60HZ, 3P
|
|||
|
Compressor
|
Type
|
Hermetic scroll type
|
||
|
Brand
|
Copeland( USA), Danfoss(Denmark), Panasonic( Japan)
|
|||
|
Quantity
|
unit
|
3 or 2
|
2 or 4
|
|
|
Power
|
kW
|
9.05*3
|
9.05*4
|
|
|
Refrigerant
|
Type
|
R-22, R-134A, R-410A, R-407C, R-404A
|
||
|
Control type
|
Thermostatic expansion valve
|
|||
|
Evaporator
|
Type
|
Shell and tube or Plate or Tank with coil
|
||
|
Tank volume
|
Litres
|
450
|
580
|
|
|
Cold water flow
|
m3/hr
|
14.33
|
18.79
|
|
|
Pipe size
|
Water inlet/outlet
|
inch
|
2-1/2"
|
2-1/2"
|
|
Condenser
|
Type
|
High efficiency V type copper tube covered aluminum fins
|
||
|
Air fans
|
Volume
|
m3/h
|
30000
|
40000
|
|
Motor power
|
kW
|
0.75*3
|
1.5*2
|
|
|
Water pump( Built inside chiller)
|
Type
|
Centrifugal Vertical /horizontal type
|
||
|
Power
|
kW
|
2.2
|
2.2
|
|
|
Head pressure
|
bar
|
2.0
|
2.0
|
|
|
Safety protection
|
Chiller safety protection include Compressor over current protection, overload protection, High/low pressure protection ,Phase sequence/phase missing protection,Anti freezing protection,Over temperature protection,Flow switch protection, water level protection
|
|||
|
Chiller size
|
L*W*H
|
mm
|
2500*1200*1800
|
2350*1460*2000
|
|
Net Weight
|
KG
|
|
1150
|
1350
|
Model Details of High Grade Industrial 100kw Process Chiller 30 Tons Air Cooled Water Chiller
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
7). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection
,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
High Grade Industrial 100kw Process Chiller 30 Tons Air Cooled Water Chiller Widely used in many different industries:
1)Plastics industry chiller
2)Electronic industry chiller
3)Electroplating industry chiller
4)Mechanical industry chiller
5)Building industry chiller
6)Vacuum coating chiller
7)Food industry chiller
8)Chemical fiber industry chiller
9)Beverage industry chiller
