| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

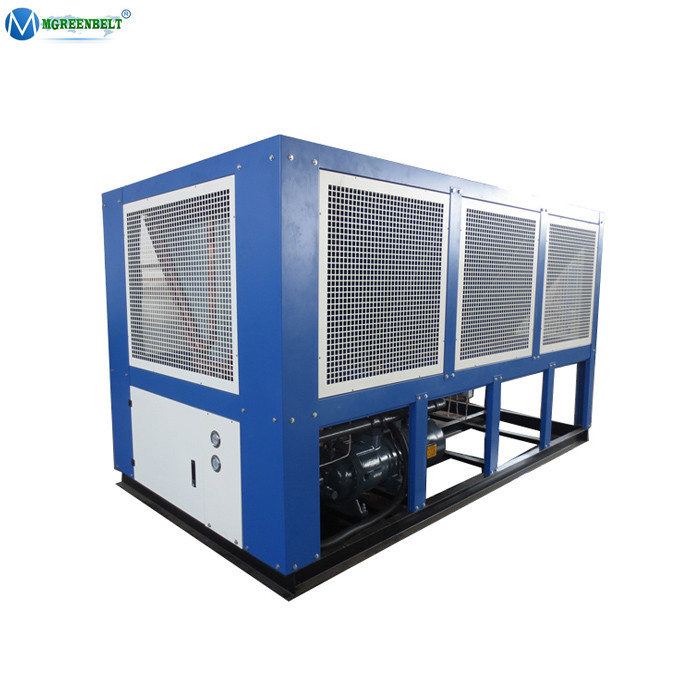

Chemical Plant Cooling Chiller Air Cooled Chiller -10 C Low Temperature Chiller
| Features of Chemical Plant Cooling Chiller Air Cooled Chiller -10 C Low Temperature Chiller |
| 1. High configurations; |
| 2 High performance screw compressors of high reliability and high efficiency from Hanbell/Taiwan, /Germany, etc ; |
| 3 Internal electric control parts from Schneider/France or Siemens/Germany, etc; |
| 4. Imported PLC microcomputer controller from Siemens/Germany, etc; |
| 5. Therm-expansion valve from Danfoss, Denmark; |
| 6. High/low pressure gauges fromTaiwan; |
| 7. HD LED display, touchscreen operation model; |
| 8. Refrigerant:r22/r134a/r407 (eco-friendly refrigerant); |
| 9. Voltage:380V-3PH-50Hz (customed). |
| Application of Chemical Plant Cooling Chiller Air Cooled Chiller -10 C Low Temperature Chiller |
| Plastic industry, electronics industry, electroplating industry, machinery industry, construction industry, food service industry, chemical industry, laser industry, ultrasonic/ultrasound industry, freshness of fooD industry, seafood industry, numerical control processing industry, ship manufacturing industry, steel and iron manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc. |
Parameter of Chemical Plant Cooling Chiller Air Cooled Chiller -10 C Low Temperature Chiller
| Model | TH-80A | TH-100A | TH-150A | TH-170A | TH-200A | ||
| Cooling capacity | 0℃ | kw | 68 | 95 | 125 | 135 | 180 |
| -5℃ | kw | 58 | 80 | 100 | 112 | 150 | |
| -10℃ | kw | 46 | 65 | 85 | 90 | 125 | |
| power | 3PH-220V/380V415V/460V-50Hz/60Hz | ||||||
| Refrigerant | Type | R22 /R407c / R134a/ R410a | |||||
| Control | Thermostatic expansion valve | ||||||
| compressor | Type | Semi-hermetic screw type | |||||
| kw | 0℃ | 30 | 41 | 52 | 55 | 72 | |
| -5℃ | 29.5 | 40 | 50 | 54 | 70 | ||
| -10℃ | 28 | 38 | 43 | 51 | 69 | ||
| start | Y-△ | ||||||
| Capacity | 25%-50%-75%-100% | ||||||
| Evaporator | Type | High efficiency copper tube shell and tube type | |||||
| m³/h Flow |
0℃ | 13 | 18 | 24 | 26 | 34 | |
| -5℃ | 11 | 16 | 19 | 22 | 29 | ||
| -10℃ | 9 | 13 | 17 | 18 | 25 | ||
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | ||
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||
| m³/h Flow | 30000 | 40000 | 50000 | 60000 | 70000 | ||
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
| Dimension | L | mm | 2350 | 3200 | 3200 | 3300 | 3300 |
| W | mm | 1450 | 1450 | 1450 | 2300 | 2300 | |
| H | mm | 2150 | 2150 | 2150 | 2400 | 2400 | |
| kg Weight | 1800 | 1900 | 2300 | 2480 | 3200 | ||
| Package |
| About the packaging, we will use the bubble glue at first, then the shockproof cotton, then the plastic film to protect the machine. Then add the wooden packing. The wood packing is the woodiness plywood the solid wood (the outside is plywood, the inside and bottom is the solid wood). |
