| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

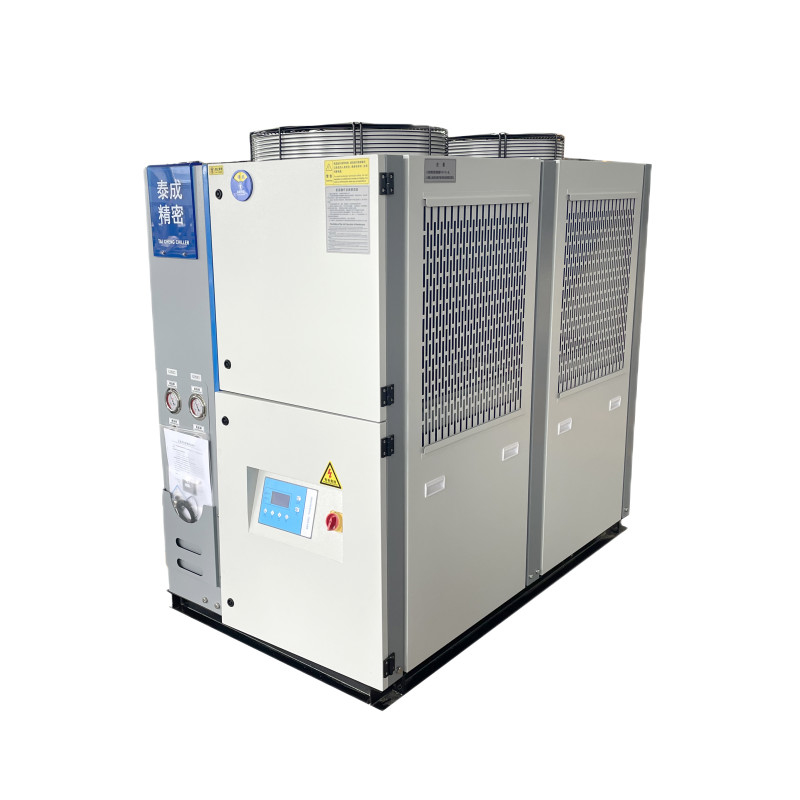

Industrial Chiller System Air Cooled Water Chiller 20HP 30HP For Plastic Extruder
|
Air Cooled Water Chiller Parameter
|
|||
|
Model
|
TH-15A
|
TH-20A
|
TH-25A
|
|
Cooling capacity
|
35948 kcal/h
|
47558 kcal/h
|
54352 kcal/h
|
|
41.8kw
|
55.3 kw
|
63.2kw
|
|
|
Power input
|
16.31 kw
|
21.27kw
|
24.35 kw
|
|
Power supply
|
3 Phase -220V/380/415/440V/400V/460V/480V-50HZ/ 60HZ
|
||
|
Refrigerant
|
R22 / R407c / R410a /R134a /R404a
|
||
|
Evaporator type
|
Tank with coil, or shell and tube, or SS heat exchanger plate, 3 type for your choose
|
||
|
Chilled water flow(m3/h)
|
7.17
|
9.48
|
10.83
|
|
Inlet / Outlet Dia
|
DN 40
|
DN 40
|
DN 40
|
|
Condenser Type
|
High efficiency hydrophilic aluminum foll finned type
|
||
|
Pump (kw)
|
1.5
|
1.5
|
1.5
|
|
Protection System
|
Compressor overheat protection, High/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection
|
||
|
Dimension (mm)
|
1800*1000*1600
|
2100*1000*1700
|
2100*1000*1700
|
|
Weight (kg)
|
750
|
850
|
900
|
2.Air Cooled Details Images
1.Imported branded compressor from USA(Copeland) and Japan(Panasonic and Denmark(Danfoss), built in safety protection, low noise, power-saving and durability.
2. Adpopt SCHNEIDER electrical components, featuring stability and long service life.
3. Italian water pump with big flow, high efficiency and durability.
4. Imported precise digital temperature controller with LCD display, controlling the water temperature as accurate as ±1℃ from -5℃~30℃. Auto test and analysis function by displaying working condition in Chinese and English for easy operation and supervision.
5.Stainless steel tank evaporator with built in auto filling water devices, convenient for clean and maintenance.
6.Air cooled industrial chiller equipped with finned copper by the warped and ranked copper pipe, taking the two flanging warped pieces machinery technology and advanced heat exchange production line. It is assure the high efficiency and quality.
7.Optional environmental protection refrigerant R404A, R134a, R407c.
8.Customized chiller with special power supply voltage.
3. Installation for air cooled chiller
We will supply you the free installation design, with drawing details, from water chiller arrive to user to it can working in your production, we have professional engineer one to one support, so no need worry about installation.
(1).If User side is a closed loop, then please choose our " tank with coil" type chiller.
(2).If user side is a open type loop, please choose our " shell and tube" or "heat exchanger plate" type.
4. Package And Delivery
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
