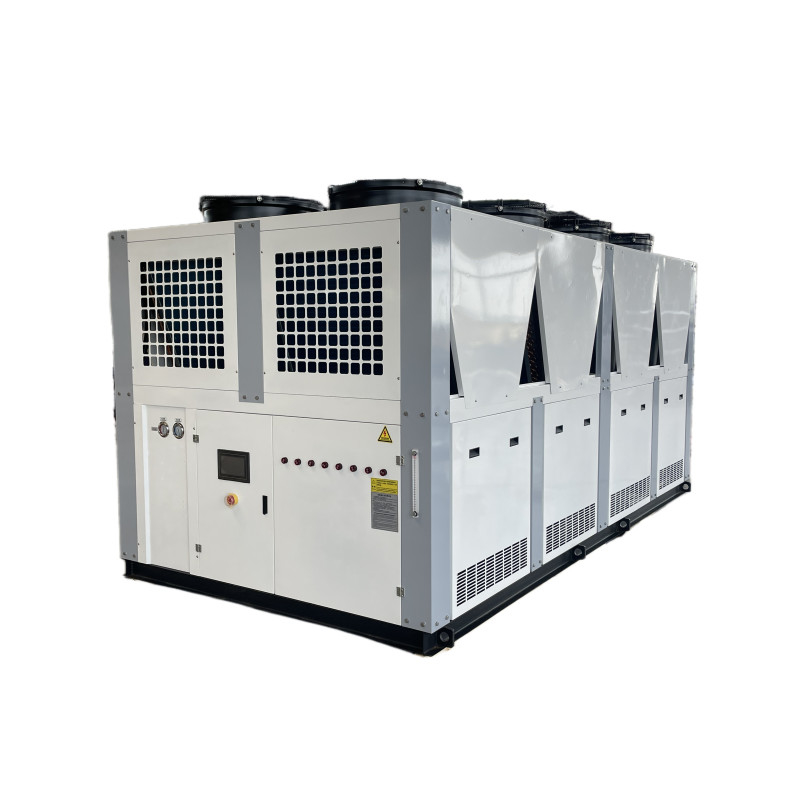

200kw 300kw 400kw Water Cooling System Chilling Equipment Air Cooled Screw Water Chiller
| Features |
| 1. High configurations; |
| 2 High performance screw compressors of high reliability and high efficiency from Hanbell/Taiwan, /Germany, etc ; |
| 3 Internal electric control parts from Schneider/France or Siemens/Germany, etc; |
| 4. Imported PLC microcomputer controller from Siemens/Germany, etc; |
| 5. Therm-expansion valve from Danfoss, Denmark; |
| 6. High/low pressure gauges fromTaiwan; |
| 7. HD LED display, touchscreen operation model; |
| 8. Refrigerant:r22/r134a/r407 (eco-friendly refrigerant); |
| 9. Voltage:380V-3PH-50Hz (customed). |
| Application |
| Plastic industry, electronics industry, electroplating industry, machinery industry, construction industry, food service industry, chemical industry, laser industry, ultrasonic/ultrasound industry, freshness of fooD industry, seafood industry, numerical control processing industry, ship manufacturing industry, steel and iron manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc. |
Parameter of 200kw 300kw 400kw Water Cooling System Chilling Equipment Air Cooled Screw Water Chiller
| Model | TH-80A | TH-100A | TH-150A | TH-170A | TH-200A | ||
| Capacity | +7C | kw | 78 | 109 | 142 | 165 | 220 |
| Cooling capacity | 0℃ | kw | 68 | 95 | 125 | 135 | 180 |
| -5℃ | kw | 58 | 80 | 100 | 112 | 150 | |
| -10℃ | kw | 46 | 65 | 85 | 90 | 125 | |
| power | 3PH-220V/380V415V/460V-50Hz/60Hz | ||||||
| Refrigerant | Type | R22 /R407c / R134a/ R410a | |||||
| Control | Thermostatic expansion valve | ||||||
| compressor | Type | Semi-hermetic screw type | |||||
| kw | +7 C | 29 | 38 | 48 | 55 | 73 | |
| kw | 0℃ | 30 | 41 | 52 | 55 | 72 | |
| -5℃ | 29.5 | 40 | 50 | 54 | 70 | ||
| -10℃ | 28 | 38 | 43 | 51 | 69 | ||
| start | Y-△ | ||||||
| Capacity | 25%-50%-75%-100% | ||||||
| Evaporator | Type | High efficiency copper tube shell and tube type | |||||
| m³/h Flow |
0℃ | 13 | 18 | 24 | 26 | 34 | |
| -5℃ | 11 | 16 | 19 | 22 | 29 | ||
| -10℃ | 9 | 13 | 17 | 18 | 25 | ||
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | ||
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||
| m³/h Flow | 30000 | 40000 | 50000 | 60000 | 70000 | ||
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
| Dimension | L | mm | 2350 | 3200 | 3200 | 3300 | 3300 |
| W | mm | 1450 | 1450 | 1450 | 2300 | 2300 | |
| H | mm | 2150 | 2150 | 2150 | 2400 | 2400 | |
| kg Weight | 1800 | 1900 | 2300 | 2480 | 3200 | ||
TH series industrial chiller is mainly applied in Plastic & Rubber industry; It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military,etc.
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Two type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
6). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
| Package |
| About the packaging, we will use the bubble glue at first, then the shockproof cotton, then the plastic film to protect the machine. Then add the wooden packing. The wood packing is the woodiness plywood the solid wood (the outside is plywood, the inside and bottom is the solid wood). |
| After-sale service: |
| 1.WE provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts. |
| 2.All extra parts for the machine can be purchased with agent price from MGreenbelt. |
| 3.24 hours working phone call: +8618615626360, Email/ Skype/ MSN/ Trade manager online to support. |
| 4.Life-long Technical Support and After-sale Service free of charge. |
| 5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed. |
| 6.Free and Professional Training at our Factory under the relaxed condition. |
| 7.Door-to-Door Service if necessary. |
