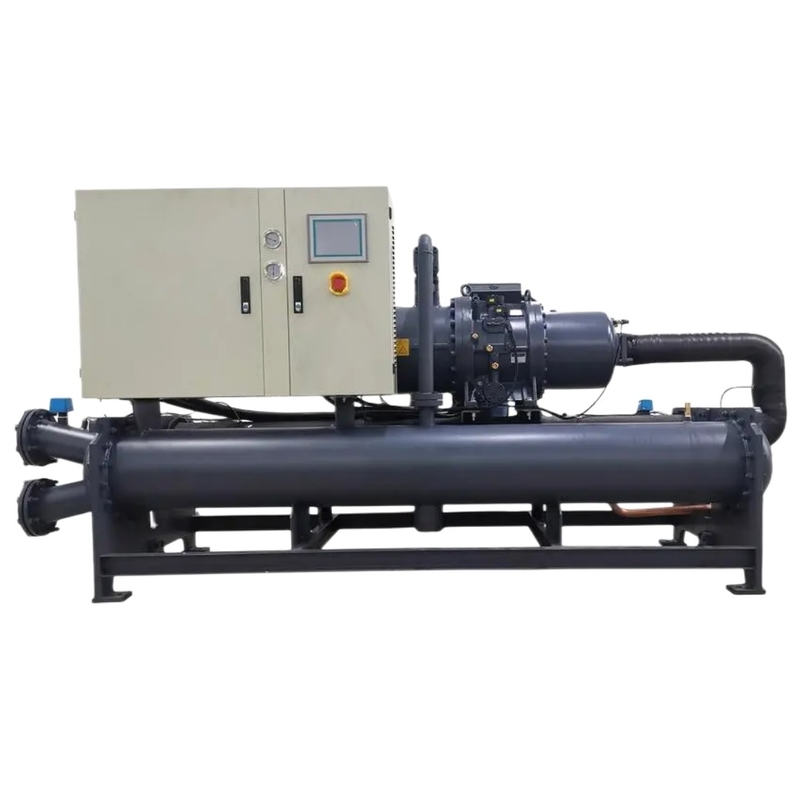

R407c Refrigerant Industrial Water Cooled Screw Chiller Cooling for Plastic Extrusion Machine
industrial chiller manufacturer and supplier, have gradually produced Water cooled screw chiller, Air cooled screw chiller, Plastic chiller, Glycol chiller and Industrial chiller which are widely applied to chemical industry, plastic & rubber machinery, large steel and indsutrial production factory ,construction, concrete plant, textile, general machinery, PCB industry, electroplating, equipments of laboratory, food, pharmacy, etc .
Advanced Compressor
• This 100RT water cooled chiller adopt 2 units Hanbell or or Fusheng Screw compressors, 2 circuit and 2 condensers, 2 compressors work Together and more safe ,more reliability for production line.
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Each compressor with 4 stage( 25-50-75-100%) to load and unload step by step, both 2 compressors load to 50% not one compressor to 100%.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Microcomputer Control System
• Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.
• Easy Installation, Reliable Running
• Sealed Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.
1. Water cooled screw chiller
2. Stainless steel water tank
3. Cooling tower
4. Water pumps
We can provide you the one-stop purchase, all above parts from from us, of course this is not must buy from us, if you already have them, or you can buy them in local, it is also ok.
|
Model
|
TH-350W
|
||
|
Electric power supply
|
208v-240V, 380V-415V, 440V-460V
3phase, 50hz / 60hz
|
||
|
Cooling capacity
|
352 KW | ||
|
Water chiller set point
|
+7 degree C ~+35 degree C | ||
|
Compressor type
|
Semi-hermetic Screw type
|
||
|
Refrigerant
|
R-22, R-407C, R-134A
|
||
|
Screw compressor power
|
78kw
|
||
|
Compressor control stages
|
25-50-75-100%
|
||
|
Water Cooled Condenser
|
Shell and tube | ||
| Cooling water flow |
81m3/hr
|
||
|
Evaporator type
|
Closed type Shell and tube type
|
||
|
Evaporator chilled water flow
|
60.3m3/hr
|
||
|
Inlet and outlet pipe size
|
DN100
|
||
R407c Refrigerant Industrial Water Cooled Screw Chiller Cooling for Plastic Extrusion Machine
(1). Outlet water temperature : -5deg C~30deg C
(2). Brand screw type compressor: Hanbell, ,, RefComp for options
(3). Electric power supply available : 3phase-220v/380v/415v/460v-50Hz/60Hz
| Model | TH-90W | TH-125W | TH-165W | TH-180W | TH-220W | TH-240W | TH-280W | |
| Capacity | USRT | 26.2 | 35.8 | 46.6 | 50.3 | 62.3 | 67.1 | 79.6 |
| Kcal/h | 79120 | 108360 | 141040 | 152220 | 188340 | 202960 | 240800 | |
| KW | 92 | 126 | 164 | 177 | 219 | 236 | 280 | |
| Power | 3PH-380V-50Hz | |||||||
| Refrigerant | Type | R22 | ||||||
| Control | Thermostatic expansion valve | |||||||
| Comperssor | Type | Semi-closed screw type | ||||||
| kw Power | 23 | 32 | 39 | 42 | 54 | 57.5 | 65 | |
| Start | Y | |||||||
| Capacity | 25-50-75-100(%) or 25-100(%) | |||||||
| Evaporator | Type | High efficiency copper tube shell and tube type | ||||||
| m³/h Flow | 15.8 | 21.6 | 28.1 | 30.3 | 37.5 | 40.5 | 48.0 | |
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | |
| Condenser | Type | High efficiency threaded copper tube shell and tube type | ||||||
| m³/h Flow | 21.7 | 29.8 | 38.3 | 41.3 | 51.5 | 55.3 | 65.1 | |
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||
| Dimension | L | 2300 | 2500 | 2500 | 2500 | 2800 | 2800 | 3200 |
| W | 750 | 750 | 750 | 750 | 800 | 800 | 800 | |
| H | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Weight | kg | 660 | 700 | 800 | 975 | 1000 | 1150 | 1250 |
| Model | MG-300W | MG-350W | MG-500W | MG-600W | MG-650W | MG-750W | MG-800W | |
Capty |
USRT | 83.9 | 100.1 | 145.3 | 173.7 | 182.0 | 210.4 | 227.5 |
| Kcal/h | 253700 | 302720 | 439460 | 525460 | 550400 | 636400 | 688000 | |
| KW | 295 | 352 | 511 | 611 | 640 | 740 | 800 | |
| Power | 3PH-380V-50Hz | |||||||
Refrigerant |
Type | R22 | ||||||
| Control | Thermostatic expansion valve | |||||||
Comperssor |
Type | Semi-closed screw type | ||||||
| kw Power | 70 | 78 | 86 | 104 | 106 | 118 | 128 | |
| Start | Y | |||||||
| Capacity | 25-50-75-100(%) or 25-100(%) | |||||||
Evaporator |
Type | High efficiency copper tube shell and tube type | ||||||
| m³/h Flow | 50.6 | 60.3 | 87.6 | 104.7 | 109.7 | 126.9 | 137.1 | |
Inlet/Outlet |
DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | |
Condenser |
Type | High efficiency threaded copper tube shell and tube type | ||||||
| m³/h Flow | 68.8 | 81.1 | 112.6 | 134.8 | 140.7 | 161.8 | 175.0 | |
| Inlet/Outlet | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | |
Protection System |
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||
Dimension |
L | 3200 | 3500.0 | 3500.0 | 3500 | 3800 | 3800 | 3800 |
| W | 800 | 900 | 900.0 | 900 | 900 | 1200 | 1200 | |
| H | 1500 | 1500 | 1800.0 | 1800 | 1800 | 1800 | 1800 | |
| Weight | kg | 1400 | 1600 | 1750 | 1750 | 1850 | 2000 | 2000 |
