Low Temperature Glycol Chiller
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

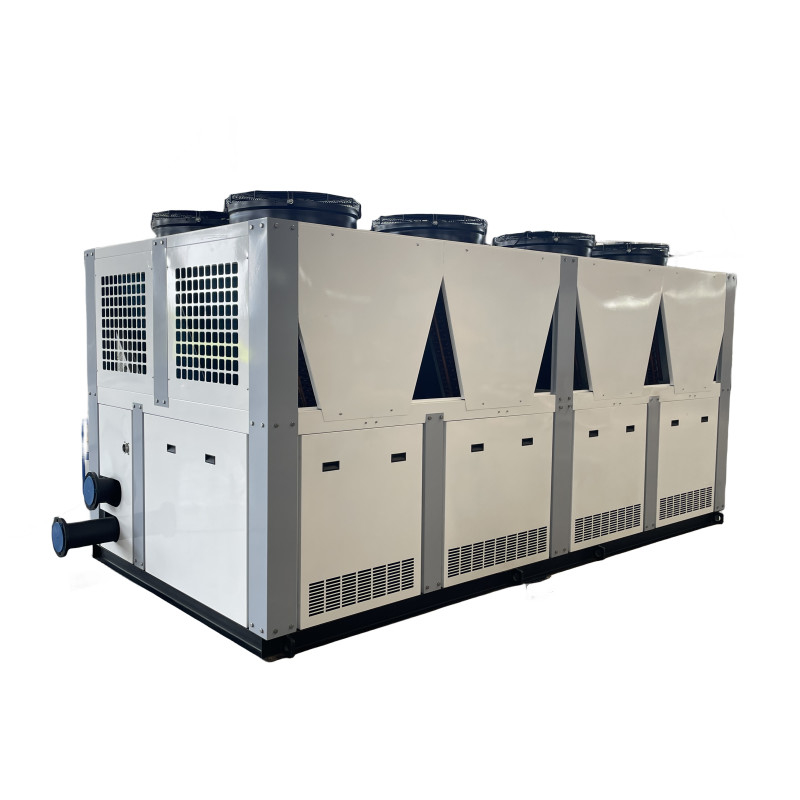

Air-cooled Industrial Chiller 250 Kw Water Chiller For Food Processing Machine
air cooled industrial chiller supply the cold water for any industry processing need; such as plastic moulding cooling, CNC machine spindle cooling, food processing cooling, soap machine cooling, dough macker cooling, pulverizer, fermentation, beverage, chemical, and etc;
Temperature outlet normally can: +5 degree C ~+35 degree C, user can set it based on their real working need; of course it also can outlet in low temperature, such as 0 degree C, -5 degree C,-10 degree C and etc;
It help user make the suitable temperature for their production.
• Compact energy saving design
• Strong capacity from best compressors
• Available water tank bulti-in
• Copper tube adopt 1mm thickness & wire insulated and protected well
• Simple installation & most economic maintenance cost
• Intelligent microelectronics controller with reliable protection
Air-cooled Industrial Chiller 250 Kw Water Chiller For Food Processing Machine
1. Semi-hermetic screw type compressor;
2. Finned copper coil plate fins condenser, no need cooling tower, Convenient installation;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise
|
Model
|
TH-250A
|
||
|
Electric power supply
|
208v-240V, 380V-415V, 440V-460V
3phase, 50hz / 60hz
|
||
|
Cooling capacity @ 0C out
|
225 kw | ||
| Cooling capacity @ -5C out | 190kw | ||
| Cooling capacity @ -10C out | 155 kw | ||
|
Water chiller set point
|
-10 deg C to 30 deg C
|
||
|
Compressor type
|
Semi-hermetic Screw type
|
||
|
Refrigerant
|
R-22, R-407C, R-134A
|
||
|
Screw compressor power
|
87kw
|
||
|
Compressor control stages
|
25-50-75-100%
|
||
|
Air Cooled Condenser
|
High efficiency red screw copper tube covered aluminum plate fins
|
||
|
Fans
|
100000m3/hr
|
||
|
Evaporator type
|
Closed type Shell and tube type
|
||
|
Evaporator chilled water flow
|
43m3/hr
|
||
|
Inlet and outlet pipe size
|
DN80
|
||
Air-cooled Industrial Chiller 250 Kw Water Chiller For Food Processing Machine
(1). Outlet water temperature : -10 deg C~30deg C
(2). Brand screw type compressor: Hanbell, ,, RefComp for options
(3). Electric power supply available : 3phase-220v/380v/415v/460v-50Hz/60Hz
| Model | TH-80A | TH-100A | TH-150A | TH-170A | TH-200A | ||
| Cooling capacity | 0℃ | kw | 68 | 95 | 125 | 135 | 180 |
| -5℃ | kw | 58 | 80 | 100 | 112 | 150 | |
| -10℃ | kw | 46 | 65 | 85 | 90 | 125 | |
| power | 3PH-220V/380V415V/460V-50Hz/60Hz | ||||||
| Refrigerant | Type | R22 /R407c / R134a/ R410a | |||||
| Control | Thermostatic expansion valve | ||||||
| compressor | Type | Semi-hermetic screw type | |||||
| kw | 0℃ | 30 | 41 | 52 | 55 | 72 | |
| -5℃ | 29.5 | 40 | 50 | 54 | 70 | ||
| -10℃ | 28 | 38 | 43 | 51 | 69 | ||
| start | Y-△ | ||||||
| Capacity | 25%-50%-75%-100% | ||||||
| Evaporator | Type | High efficiency copper tube shell and tube type | |||||
| m³/h Flow |
0℃ | 13 | 18 | 24 | 26 | 34 | |
| -5℃ | 11 | 16 | 19 | 22 | 29 | ||
| -10℃ | 9 | 13 | 17 | 18 | 25 | ||
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | ||
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||
| m³/h Flow | 30000 | 40000 | 50000 | 60000 | 70000 | ||
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
| Dimension | L | mm | 2350 | 3200 | 3200 | 3300 | 3300 |
| W | mm | 1450 | 1450 | 1450 | 2300 | 2300 | |
| H | mm | 2150 | 2150 | 2150 | 2400 | 2400 | |
| kg Weight | 1800 | 1900 | 2300 | 2480 | 3200 | ||
| Model | MG-250CS | MG-300CS | MG-450CS | MG-530CS | ||
| Cooling capacity | 0℃ | kw | 225 | 275 | 380 | 460 |
| -5℃ | kw | 190 | 230 | 310 | 380 | |
| -10℃ | kw | 155 | 190 | 260 | 315 | |
| power | 3PH-220V/380V415V/460V-50Hz/60Hz | |||||
| Refrigerant | Type | R22 /R407c / R134a/ R410a | ||||
| Control | Thermostatic expansion valve | |||||
| compressor | Type | |||||
| kw | 0℃ | 87 | 106 | 142 | 174 | |
| -5℃ | 86 | 103 | 136 | 168 | ||
| -10℃ | 83 | 100 | 134 | 164 | ||
| start | Y-△ | |||||
| Capacity | 25%-50%-75%-100% | |||||
| Evaporator | Type | High efficiency copper tube shell and tube type | ||||
| m³/h Flow |
0℃ | 43 | 52 | 72 | 87 | |
| -5℃ | 37 | 45 | 60 | 74 | ||
| -10℃ | 31 | 38 | 52 | 63 | ||
| Inlet/Outlet | DN80 | DN80 | DN100 | DN125 | ||
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | ||||
| m³/h Flow | 100000 | 120000 | 150000 | 180000 | ||
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||
| Dimension | L | mm | 4400 | 3850 | 4750 | 5850 |
| W | mm | 2300 | 2200 | 2200 | 2200 | |
| H | mm | 2400 | 2350 | 2450 | 2450 | |
| kg Weight | 3800 | 3300 | 4000 | 5000 | ||
Main Features of Air-cooled Industrial Chiller 250 Kw Water Chiller For Food Processing Machine
Well-known reliable Semi-hermetic Screw
Refrigeation Compressor
High efficiency Air Cooled Type Condenser
Evaporator
High efficient shell and tube type evaporator, special material titanium and stainless steel available ;
1). Installed at good air circulation place
2). Chiller design waterproof, put outside without roof
3). Pipe connection design smooth
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with famous brand shipping companies whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
