Industrial Water Chillers
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

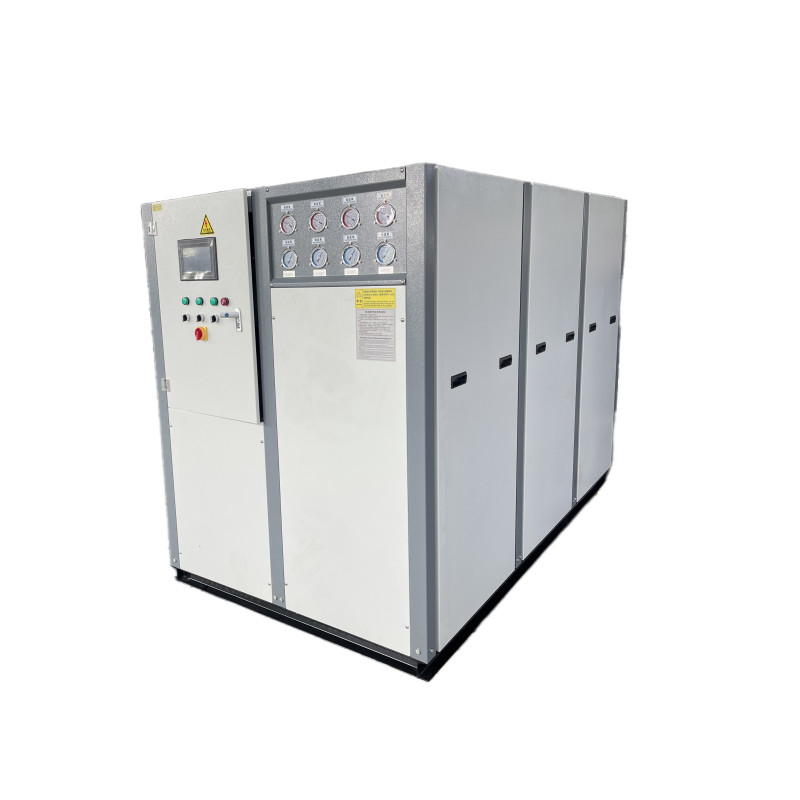

Factory Direct Powerful 30Hp Water Cooled Scroll Commercial Water Chiller
Scroll type 30RT water cooled chiller
Water Cooled chiller mainly applied in Plastic & Rubber industry; It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military,
Technical Parameter
|
SPECIFICATIONS FOR WATER COOLED CHILLER
|
|||
|
Model
|
|
TH-30W
|
TH-20W
|
|
Cooling capacity
@ +10 deg C outlet
|
Tons
|
30
|
20
|
|
KW
|
105
|
70
|
|
|
KCAL/HR
|
90285
|
60190
|
|
|
Cooling capacity
@ -5 deg C outlet
|
Kw | 62.6 | 41.3 |
|
Water temperature setpoint
|
C degree
|
5 deg C ~ 30deg C
|
|
|
Power supply
|
200-230volts, 380-415volts, 440-460volts, 50hz/60hz, 3phase
|
||
|
Compressor
|
Type
|
Hermetic scroll type
|
|
|
Power(kW)
|
10.6*2
|
6.5*2
|
|
|
Refrigerant
|
Type
|
R22/ R407C/ R410A/ R404A
|
|
|
Control type
|
Danfoss/ Emerson Expansion Valve
|
||
|
Evaporator
|
Type
|
Closed shell and tube or Tank with coil
|
|
|
Water flow(m3/h)
|
18
|
10.4
|
|
|
Tank size( Lts)
|
450
|
350
|
|
|
Fitting pipe size
|
DN65
|
DN40
|
|
|
Condenser
|
Type
|
Shell and tube
|
Shell and tube
|
|
Cooling water flow(m3/h)
|
23.5
|
13.5
|
|
|
Fitting pipe size
|
DN65
|
DN65
|
|
|
Cold water pump
|
Power(kW)
|
2.2
|
1.5
|
|
Pressure(bar)
|
2.0
|
2.0
|
|
|
Protection system
|
Chiller safety protection include Compressor over current protection, overload
protection, High/low pressure protection ,Phase sequence/phase missing protection, Anti freezing protection, Over temperature protection, water flow/level protection. |
||
|
Chiller Size
|
Lx WxH(mm)
|
2500x1200x1800
|
2100x1000x1700
|
Factory Direct Powerful 30Hp Water Cooled Scroll Commercial Water Chiller
(1) Adopt famous brand compressor, scroll type and different brand availlable such as Copeland, Danfoss, Panasonic, Daikin and so on;
(2) Water cooled chiller adopts micro computer intelligent controller or Siemens PLC control system;
(3) Water chiller adopt with high efficiency shell and tube type condenser, cooled by cooling tower;
(4) Adopt shell and tube type or tank with coil type evaprator, depends on customers' water circuit.
(5) Chiller has compact structure, elegant appearance, sufficient cooling capacity, high efficiency and maintenance easily.
(6) Built in cold water pump for evaprator, can be 1 or 2 unit
(7) Standard water temperature control 5 deg C to 30deg C, accurancy ±1deg C;
(8) Different power supply and refrigerabt for options;
Condenser: Shell and tube type
Evaporator: Closed shell and tube type( optional tank with coil)
Water cooled condenser, need working with cooling tower, this makes the chiller cooling efficiency higher than air cooled.
Type: Standard centrifugal type
Material: Iron or stainless steel
Brand: CNP, WILO, GRANDFUS, YUY
water flow and head lift pressure can be custmoized depend on the customers' requirement at installation site.
Compressor
Type: Scroll type
Brand: Copeland, Panasonic, Danfoss
Refrigerant: R22, R407C, R410A, R404A
Imported brand, original from factory and high performance with long service life
Controller: Microcomputer or PLC
Brand: PUNP/ microcomputer, SIMENS/PLC
Both control system is very easy and display the working status in details, also show concrete fault content
Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
Plastic molding industry - The Water Chiller is to provide a cooling process for better industrial production. In plastic molding industry.
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Paper and related – printing machine, labelling machine, cardboard making, plastic film machine, etc.
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc.
Package
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
FAQ
1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry---provide us all clear requirements.
.Quotation---quotation form with all clear specifications.
.Contract confirmation---provide correct contract details.
.Payment terms--- T/T 30% in advanced, balanced before shipment.
.Production---mass production
.Testing: to ensure the quality of the machine
.Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C, credit card.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
