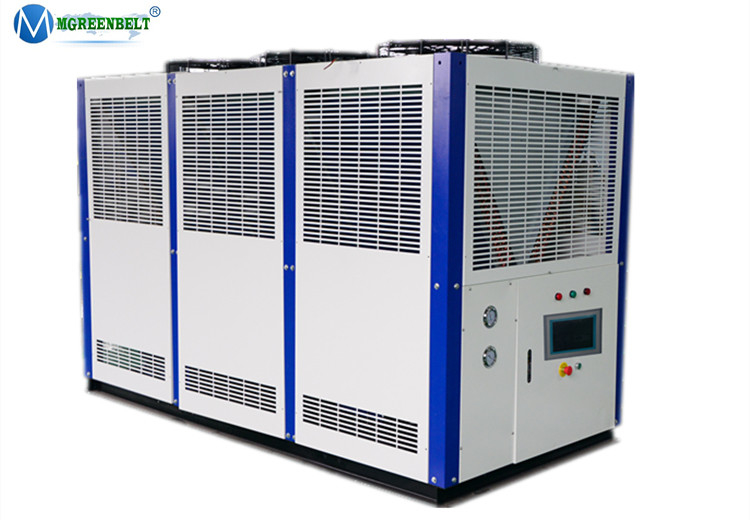

30 HP 40HP Air Cooled Screw Small Water Chiller
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Food industry- Bakery, confectionary, poultry, hatchnery, food processing, etc.
30 HP 40HP Air Cooled Screw Small Water Chiller
1. Semi-hermetic screw type compressor;
2. Finned copper coil plate fins condenser, no need cooling tower, Convenient installation;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise
Model | TH-100A | ||
Electric power supply | 208v-240V, 380V-415V, 440V-460V 3phase, 50hz / 60hz | ||
Cooling capacity | 109kw / 31 tons | ||
Water chiller set point | 5 deg C to 30 deg C | ||
Compressor type | Semi-hermetic Screw type | ||
Refrigerant | R-22, R-407C, R-134A | ||
Screw compressor power | 38kw | ||
Compressor control stages | 25-50-75-100% | ||
Air Cooled Condenser | High efficiency red screw copper tube covered aluminum plate fins | ||
Fans | 40000m3/hr | ||
Evaporator type | Closed type Shell and tube type | ||
Evaporator chilled water flow | 19m3/hr | ||
Inlet and outlet pipe size | DN65( 2" ) | ||
30 HP 40HP Air Cooled Screw Small Water Chiller
(1). Outlet water temperature : 5deg C~30deg C
(2). Brand screw type compressor: Hanbell, ,, RefComp for options
(3). Electric power supply available : 3phase-220v/380v/415v/460v-50Hz/60Hz
Main Features of Screw Type Compressor 60 HP Water Cooling System Air Cooled Screw Chiller
Well-known reliable Semi-hermetic Screw
Refrigeation Compressor
High efficiency Air Cooled Type Condenser
Evaporator
High efficient shell and tube type evaporator, special material titanium and stainless steel available ;
30 HP 40HP Air Cooled Screw Small Water Chiller
1- This series chiller can be produced with 1 or 2 compressors, if customers want 2 compressors, please inform us, standard chiller is 1 compressor.
1). Installed at good air circulation place
2). Chiller design waterproof, put outside without roof
3). Pipe connection design smooth
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with famous brand shipping companies whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
