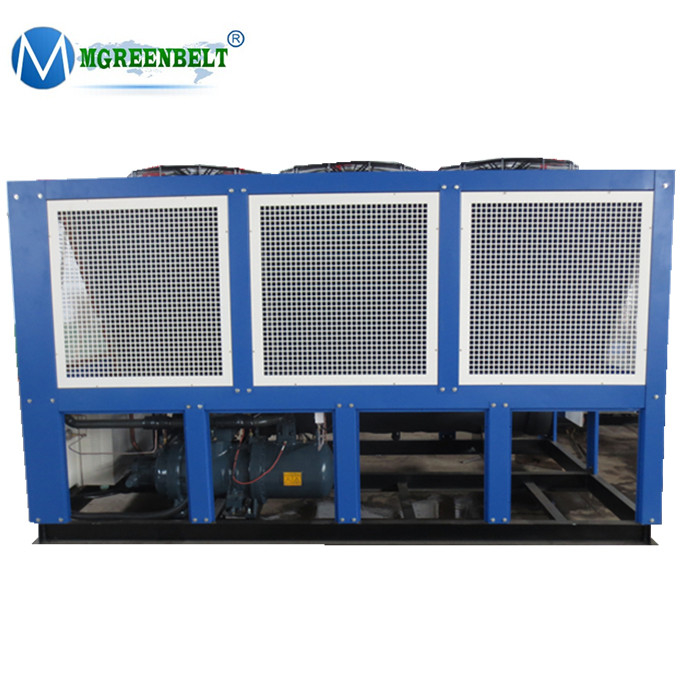

High Quality 50hp 40Tons Industrial Screw Air Cooled Water Chiller
| Features of High Quality 50hp 40Tons Industrial Screw Air Cooled Water Chiller |
| 1. High configurations; |
| 2 High performance screw compressors of high reliability and high efficiency from Hanbell/Taiwan, /Germany, etc ; |
| 3 Internal electric control parts from Schneider/France or Siemens/Germany, etc; |
| 4. Imported PLC microcomputer controller from Siemens/Germany, etc; |
| 5. Therm-expansion valve from Danfoss, Denmark; |
| 6. High/low pressure gauges fromTaiwan; |
| 7. HD LED display, touchscreen operation model; |
| 8. Refrigerant:r22/r134a/r407 (eco-friendly refrigerant); |
| 9. Voltage:380V-3PH-50Hz (customed). |
| Application of High Quality 50hp 40Tons Industrial Screw Air Cooled Water Chiller |
| Plastic industry, electronics industry, electroplating industry, machinery industry, construction industry, food service industry, chemical industry, laser industry, ultrasonic/ultrasound industry, freshness of fooD industry, seafood industry, numerical control processing industry, ship manufacturing industry, steel and iron manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc. |
Parameter of High Quality 50hp 40Tons Industrial Screw Air Cooled Water Chiller
| Model | -80CS | MG-100CS | MG-150CS | MG-160CS | TH-200A | TH-400A | |
| Cooling capacity | USRT | 22.2 | 31.0 | 40.4 | 43.2 | 58.3 | 114.9 |
| Kcal/h | 67080 | 93740 | 122120 | 130720 | 176300 | 347440 | |
| KW | 78 | 109 | 142 | 165 | 205 | 404 | |
| Power supply | 3PH-380V-50Hz | ||||||
| Refrigerant | Type | R22 | |||||
| Controler | Thermostatic expansion valve | ||||||
| Compressor | Type | Semi-hermetic screw | |||||
| Power(kw) | 28 | 38 | 47 | 52 | 68 | 124 | |
| Start | Y | ||||||
| Capacity control | 25%-50%-75%-100% | ||||||
| Evaporator | Type | Shell and tube | |||||
| Water flow(m³/h) | 13 | 19 | 24 | 26 | 35 | 69 | |
| Dia.of inlet/outlet(inch) | DN65 | DN65 | DN80 | DN80 | DN80 | DN100 | |
| Condenser | Type | Inner screw copper tube aluminum plate fins | |||||
| Air cooling flow(m³/h) | 27000 | 40000 | 50000 | 60000 | 80000 | 150000 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
| Dimension | L | 2350 | 3200 | 3200 | 3300 | 3300 | 4750 |
| W | 1450 | 1450 | 1450 | 2300 | 2300 | 2200 | |
| H | 2150 | 2150 | 2150 | 2400 | 2400 | 2450 | |
| Weight(kg) | 1800 | 1900 | 2300 | 2480 | 3200 | 4000 | |
TH-A series industrial chiller is mainly applied in Plastic & Rubber industry; It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military,etc.
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Two type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
6). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
| Package |
| About the packaging, we will use the bubble glue at first, then the shockproof cotton, then the plastic film to protect the machine. Then add the wooden packing. The wood packing is the woodiness plywood the solid wood (the outside is plywood, the inside and bottom is the solid wood). |
