Industrial Water Chillers
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

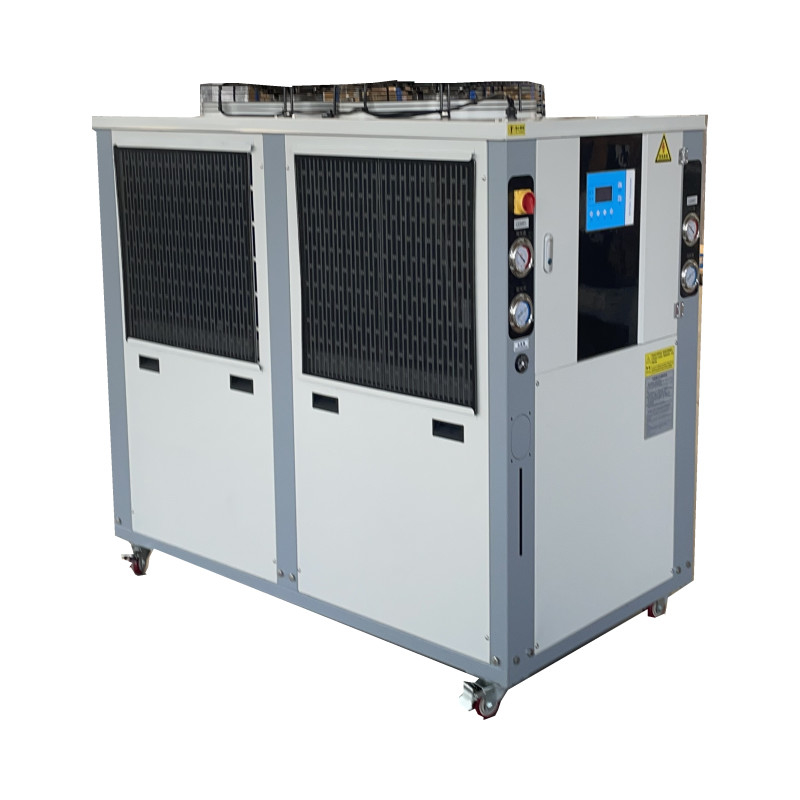

3 HP 5 HP 8 HP Air Cooled Chiller Industrial Cooling Water Chiller
(1). Electric box design with water leakage protection, chiller could be placed outside without roof.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
1.Imported branded compressor from USA(Copeland) and Japan(Panasonic and Denmark(Danfoss), built in safety protection, low noise, power-saving and durability.
2. Adpopt SCHNEIDER electrical components, featuring stability and long service life.
3. Italian water pump with big flow, high efficiency and durability.
4. Imported precise digital temperature controller with LCD display, controlling the water temperature as accurate as ±1℃ from -5℃~30℃. Auto test and analysis function by displaying working condition in Chinese and English for easy operation and supervision.
5.Stainless steel tank evaporator with built in auto filling water devices, convenient for clean and maintenance.
6.Air cooled industrial chiller equipped with finned copper by the warped and ranked copper pipe, taking the two flanging warped pieces machinery technology and advanced heat exchange production line. It is assure the high efficiency and quality.
7.Optional environmental protection refrigerant R404A, R134a, R407c.
8.Customized chiller with special power supply voltage.
Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons
Horse power : 5hp~50hp
Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel
Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz
|
Model
|
Unit
|
TH-5A
|
TH-8A
|
| Outlet Temp | degree C | +5~+35 degree C | +5~+35 degree C |
|
Cooling capacity
|
KW
|
13.1 | 20.3 |
|
Kcal /h
|
11266 | 17458 | |
|
Input power
|
Kw
|
5.61 | 8.52 |
|
Power supply
|
3 Ph-220V/380V/460V/480V-50HZ/60HZ
|
||
|
Refrigerant
|
R22 / R407c / R134a / R410a / R404a
|
||
|
Compressor
|
Type
|
Hermetic scroll type
|
|
|
Power
|
4.54
|
3.6*2 | |
|
Evaporator
|
Flow rate (m3/h)
|
2.25 | 3.48 |
|
Tank Volume(L)
|
70 | 120 | |
|
Inlet/ outlet
|
DN20
|
DN32
|
|
|
Condenser
|
Type
|
Finned copper tube with low noise axial fan
|
|
|
Power (kw)
|
0.52
|
0.24*2
|
|
|
Protection System
|
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
|
||
|
Machine Size
|
mm
|
1200*600*1100 | 1400*800*1400 |
|
Weight
|
kg
|
200 | 310 |
Details of 3 HP 5 HP 8 HP Air Cooled Chiller Industrial Cooling Water Chiller
(1).Evaporator
Closed shell and tube type evaporator as standard, also tank with coil type is optional.
High efficiency
(2).Pump
Vertical centrifugal water pump, CNP brand as standard, other brand Grndfus, Wilo, and so on is accpetable
(3).Compressor
Type: Hermetic scroll type
Brand: Copeland, Panasonic, Danfoss, Daikin
Refrigerant: R22, R407C, R410A, R404A
(4).Control System
Microcomputer controller
Both English and Chinese support
Temperature display in degree centigrade and Fahrenheit degree
Auto control and diplay detail words for alarm and fault
Electric components: Schneider, LS ,ABB
(5).Condenser and fans
V type condenser, easy to discharge heat and high efficiency
Adopt large volume and low noise 6 stages axial fans, no need working with cooling tower, easy to installation.
1)Plastics industry chiller
2)Electronic industry chiller
3)Electroplating industry chiller
4)Mechanical industry chiller
5)Building industry chiller
6)Vacuum coating chiller
7)Food industry chiller
8)Chemical fiber industry chiller
9)Beverage industry chiller
water chiller system is a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality.
Our Service
* Inquiry and consulting support.
* Solution design support
* Sample testing support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Data update freely
* 12 months warranty, within this date any quality problem we will send the new parts within 48 hours by DHL, all is free.
*Out of warranty, we will responsible for our chiller in the whole life, any problem, we just need the materials cost.
