| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

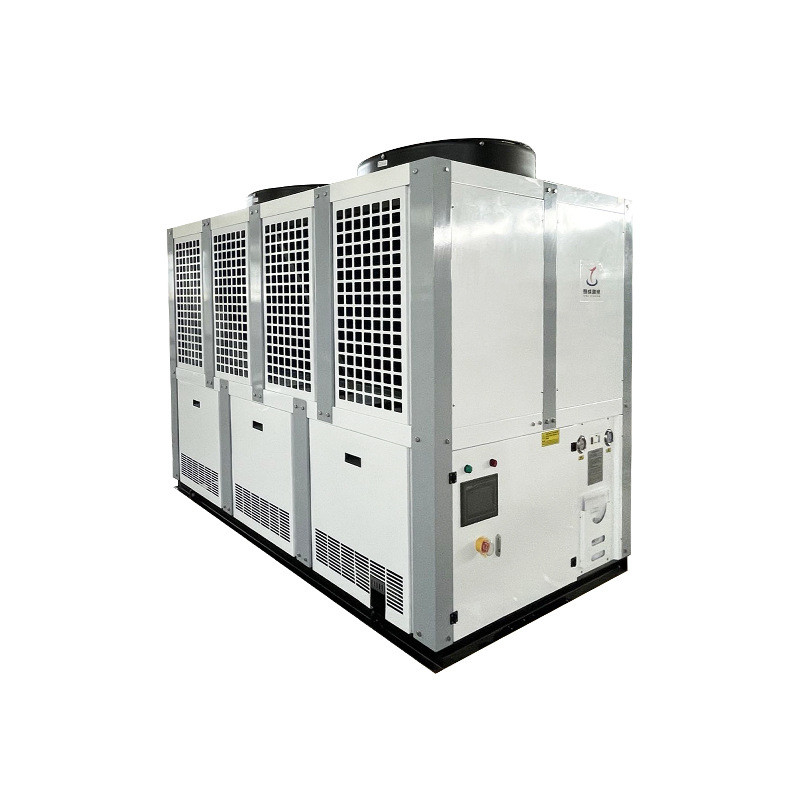

Plastic Processing Industry Mould / Pipe Cooling 50 Ton 60 Ton Water Chiller
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Food industry- Bakery, confectionary, poultry, hatchnery, food processing, etc.
Plastic Processing Industry Mould / Pipe Cooling 50 Ton 60 Ton Water Chiller
1. Semi-hermetic screw type compressor;
2. Finned copper coil plate fins condenser, no need cooling tower, Convenient installation;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise
|
Model
|
TH-220A
|
||
|
Electric power supply
|
208v-240V, 380V-415V, 440V-460V
3phase, 50hz / 60hz
|
||
|
Cooling capacity
|
220kw / 63 tons
|
||
|
Water chiller set point
|
5 deg C to 30 deg C
|
||
|
Compressor type
|
Semi-hermetic Screw type
|
||
|
Refrigerant
|
R-22, R-407C, R-134A
|
||
|
Screw compressor power
|
73kw
|
||
|
Compressor control stages
|
25-50-75-100%
|
||
|
Air Cooled Condenser
|
High efficiency red screw copper tube covered aluminum plate fins
|
||
|
Fans
|
80000m3/hr
|
||
|
Evaporator type
|
Closed type Shell and tube type
|
||
|
Evaporator chilled water flow
|
38m3/hr
|
||
|
Inlet and outlet pipe size
|
DN80( 3" )
|
||
Plastic Processing Industry Mould / Pipe Cooling 50 Ton 60 Ton Water Chiller
(1). Outlet water temperature : 5deg C~30deg C
(2). Brand screw type compressor: Hanbell, ,, RefComp for options
(3). Electric power supply available : 3phase-220v/380v/415v/460v-50Hz/60Hz
Compressor features:
New screw type compressor with 20%-30% higher in efficiency.
Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
High efficiency, low noise and vibration, easy to install.
Environmental protection refrigerant R134a, R407c, R404a available.
Two sets screw compressor for one air cooled screw chiller, each can work independently , to save energy and safety production.
Control operation system:
SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function:
Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with famous brand shipping companies whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
1)Chilled outlet water temperature: -35℃ to +35℃
2)Cooling capacity: 2.85kw~1750kw(0.8 ton ~ 500 Tons)
3)Cooling way: Air cooled or water cooled
4)Compressor type:Screw type,Scroll type
5)Power supply:1/3PH-200V/220V/380V/415V/460V-50HZ/60HZ
6)Refrigerant available R22/R407c/R410a/R134a
FAQ:
1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry---provide us all clear requirements.
.Quotation---quotation form with all clear specifications.
.Contract confirmation---provide correct contract details.
.Payment terms--- T/T 30% in advanced, balanced before shipment.
.Production---mass production
.Testing: to ensure the quality of the machine
.Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C,e-checking, Credit card,etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
