| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Food industry- Bakery, confectionary, poultry, hatchnery, food processing, etc.

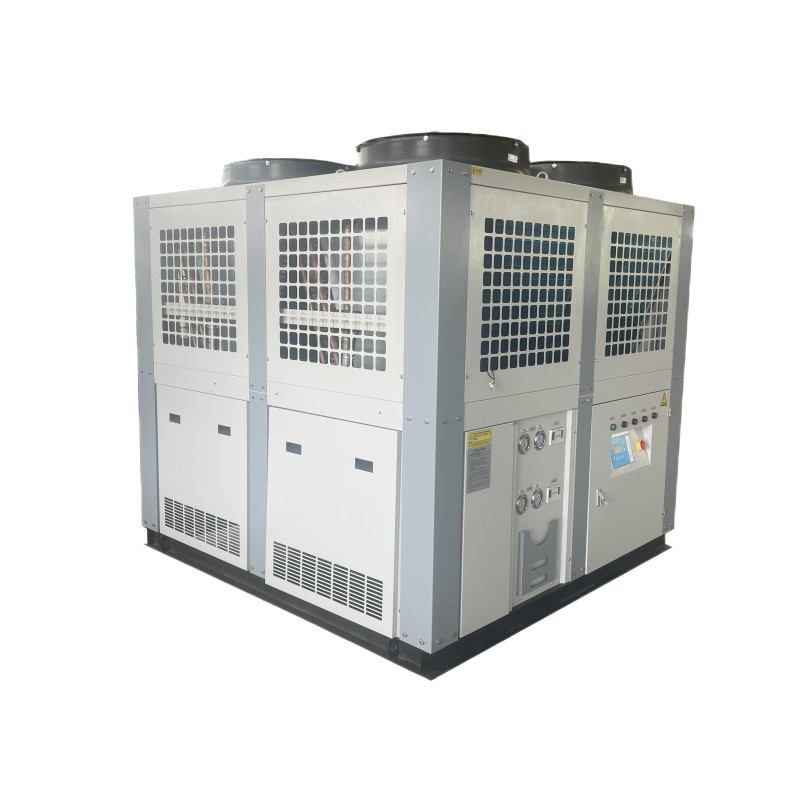

Best Price Water Cooled Industrial Chiller For Water Cooling Filling Machine
1. Semi-hermetic screw type compressor;
2. Finned copper coil plate fins condenser, no need cooling tower, Convenient installation;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise
|
Model
|
TH-280W
|
||
|
Electric power supply
|
208v-240V, 380V-415V, 440V-460V
3phase, 50hz / 60hz
|
||
|
Cooling capacity
|
280kw / 80 tons
|
||
|
Water chiller set point
|
5 deg C to 30 deg C
|
||
|
Compressor type
|
Semi-hermetic Screw type
|
||
|
Refrigerant
|
R-22, R-407C, R-134A
|
||
|
Screw compressor power
|
65kw
|
||
|
Compressor control stages
|
25-50-75-100%
|
||
|
Water Cooled Condenser
|
Shell and tube | ||
| Cooling water flow |
65.1m3/hr
|
||
|
Evaporator type
|
Closed type Shell and tube type
|
||
|
Evaporator chilled water flow
|
48m3/hr
|
||
|
Inlet and outlet pipe size
|
DN100( 4" )
|
||
Best Price Water Cooled Industrial Chiller For Water Cooling Filling Machine
(1). Outlet water temperature : 5deg C~30deg C
(2). Brand screw type compressor: Hanbell, ,, RefComp for options
(3). Electric power supply available : 3phase-220v/380v/415v/460v-50Hz/60Hz
Compressor features:
New screw type compressor with 20%-30% higher in efficiency.
Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
High efficiency, low noise and vibration, easy to install.
Environmental protection refrigerant R134a, R407c, R404a available.
Two sets screw compressor for one air cooled screw chiller, each can work independently , to save energy and safety production.
Control operation system:
SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function:
Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.
1). Installed at good air circulation place
2). Chiller design waterproof, put outside without roof
3). Pipe connection design smooth
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with famous brand shipping companies whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
