| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

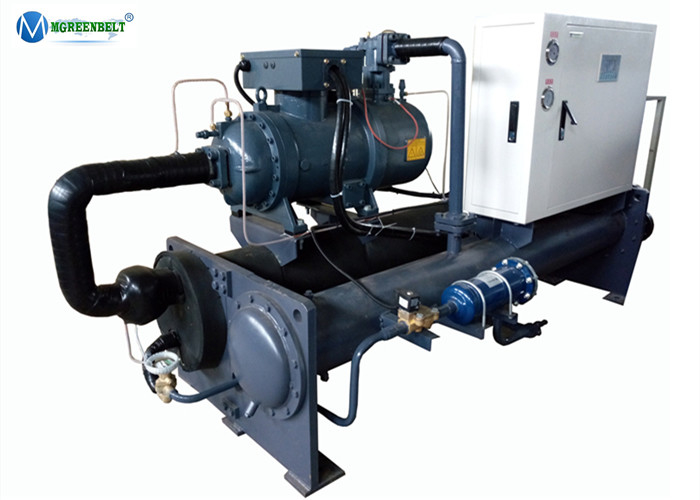

45 KW -15 Degree C Water Cooled Chiller For Chemical Cooling System
Features:
• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.
Advanced Compressor:
• Unit adopts Germany or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Most advanced patented highest precision manufacturing process.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Microcomputer Control System:
• Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.
• Easy Installation, Reliable Running
1). We promise all of our water cooled screw chiller partds is from the manufacturer factory, 100% new and qualitied by supplier;
2). We promise all of the chiller will make at least 3 times test before package, insure all components and equipment 100% working well when delivery.
3).We promise will manufacture the product based on our contract, all material based on our contract.
Details Image
| Type | TH-90W | TH-125W | TH-165W | TH-180W | TH-220W | TH-300W | TH-350W | TH-500W | ||
| Capacity | -15℃ | kw | 45 | 60 | 80 | 85 | 116 | 141 | 170 | 235 |
| -20℃ | kw | 35 | 48 | 65 | 70 | 95 | 115 | 140 | 191 | |
| -25℃ | kw | 28 | 39 | 51 | 55 | 76 | 85 | 112 | 150 | |
| Power | 3PH-380V/415V/440V/480V-50Hz/ 60Hz | |||||||||
Refrigerant |
Type | R407c/ R134a/ R22 | ||||||||
| Control | Thermostatic expansion valve | |||||||||
Compressor |
Type | semi-closed screw type | ||||||||
| power | 21.4 | 28.2 | 35.4 |
38.8 |
49 | 63 | 76 | 98 | ||
| Start | Y-△ | |||||||||
| Capacity | 25-50-75-100(%) or 25-100(%) | |||||||||
| Evaporator | Type | High efficiency copper tube shell and tube type | ||||||||
| m³/h Flow |
-15℃ | 7.7 | 10.3 | 13.7 | 14.6 | 19.9 | 24.2 | 29.1 | 40.3 | |
| -20℃ | 6 | 8.2 | 11.1 | 12 | 16.3 | 19.7 | 24 | 32.7 | ||
| -25℃ | 34.8 | 6.7 | 8.7 | 9.4 | 13 | 14.6 | 19.2 | 25.7 | ||
| Inlet/Outlet | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | ||
| Condenser | Type | High efficiency threaded copper tube shell and tube type | ||||||||
| m³/h Flow | 13 | 17 | 22 | 23 | 31 | 38 | 46 | 63 | ||
| Inlet/Outlet | DN50 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | DN10 | ||
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||||
| Dimension | L | mm | 2300 | 2300 | 2500 | 2500 | 2500 | 2800 | 3200 | 3500 |
| W | mm | 750 | 750 | 750 | 750 | 800 | 800 | 800 | 900 | |
| H | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| dB Noise | 80.4 | 83.1 | 83.1 | 84.2 | 85.2 | 86.3 | 86.6 | 86.9 | ||
| kg Weight | 660 | 700 | 800 | 975 | 1000 | 1150 | 1250 | 1600 | ||
Advanced Compressor
• Unit adopts Germany or Taiwan HANBELL or Shanghai FUSHENG brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Most advanced patented highest precision manufacturing process.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Microcomputer Control System
• Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.
• Easy Installation, Reliable Running
Features
• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.
Provide all required parts for one complete cooling system
| Description | Quantity (SET) | |
| Water cooled chiller | 1 | |
| Chilled water pump ( one use, one standby) | 2 | |
| Cooling water pump( one use one standby) | 2 | |
| Cooling tower | 1 | |
| Water tank(ss304) | 1 | |
