| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

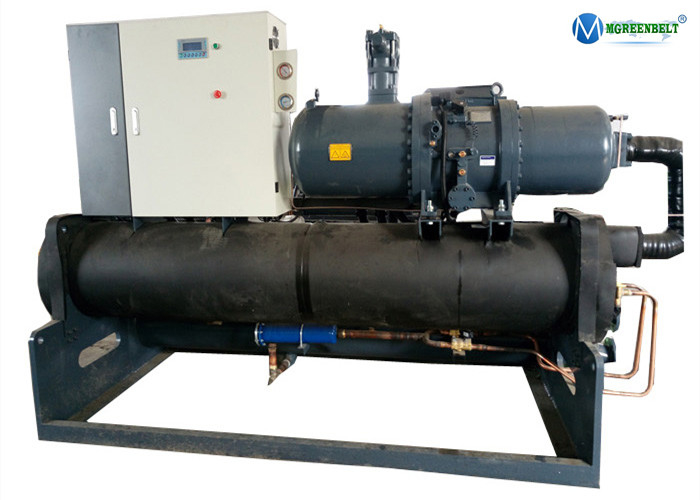

Low Temperature -10 C Water Cooled Screw Chiller For Chemical Reaction Kettle
1) Jacketed Vessels
2) Breweries, Wineries, Food Processing
3) Chemical & Pharmaceutical
4) Injection Molding
5) Extrusion
6) Blow Molding
7) Laser Cutting
8) Welding
9) Mining
10) Presses
11) Laboratories
12) Machine Tools
13) Printers
14) Hydraulic Cooling
15) Air Conditioning system
16) and so many more.
|
Low Temperature -10 C Water Cooled Screw Chiller For Chemical Reaction Kettle
|
|||
|
Model
|
TH-300W
|
TH-350W
|
TH-500W
|
|
Capacity(0C)
|
225KW | 270KW | 368KW |
| Capacity(-5C) |
204 kw
|
244Kw
|
332 kw
|
| Capacity(-10C) | 170KW | 203KW | 255 KW |
|
Power supply
|
3 Phase -220V/380/415/440V/400V/460V/480V-50HZ/ 60HZ
|
||
|
Refrigerant
|
R22 / R407c / R410a /R134a /R404a
|
||
| Compressor quantity | 1 | 1 | 1 |
|
Compressor Power
|
63 kw
|
75 kw
|
101kw
|
|
Compressor type
|
Semi-hermetic screw
|
||
|
Chilled water flow( m3/h)
|
29.1 | 34.8 | 43.7 |
|
Inlet / Outlet Dia
|
DN 100
|
DN 100
|
DN 100
|
|
Cooling water need(m3/h)
|
54.3 | 65.1 | 88.4 |
|
Protection System
|
Compressor overheat protection, High/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection
|
||
|
Dimension(mm)
|
3200*900*1500
|
3500*900*1500
|
3500*900*1800
|
|
Weight (kg)
|
1400
|
1600 | 1750 |
Low Temperature -10 C Water Cooled Screw Chiller For Chemical Reaction Kettle
1). We promise all of our water cooled screw chiller partds is from the manufacturer factory, 100% new and qualitied by supplier;
2). We promise all of the chiller will make at least 3 times test before package, insure all components and equipment 100% working well when delivery.
3).We promise will manufacture the product based on our contract, all material based on our contract.
Advanced Compressor
• Unit adopts Germany or Taiwan HANBELL or Shanghai FUSHENG brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Most advanced patented highest precision manufacturing process.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Microcomputer Control System
• Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.
• Easy Installation, Reliable Running
Features
• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.
Provide all required parts for one complete cooling system
| Description | Quantity (SET) | |
| Water cooled chiller | 1 | |
| Chilled water pump ( one use, one standby) | 2 | |
| Cooling water pump( one use one standby) | 2 | |
| Cooling tower | 1 | |
| Water tank(ss304) | 1 | |
