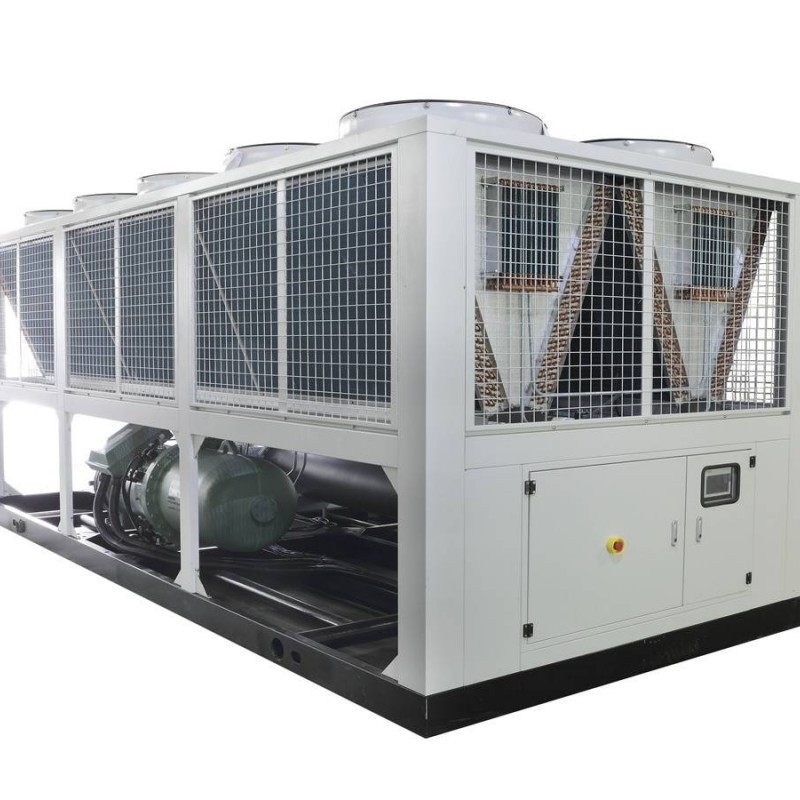

High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process
  • High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process
  • High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process
  • High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process
  • High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process
  • High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process
  • High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process
High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process

High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process

Place of Origin China
Brand Name TAICH
Certification CE
Model Number TC
Product Details
Keywords:
Water Chiller For Biodiesel Process
Cooling Capacity:
450 Kw / 130 Ton
Compressor Power:
142 Kw
Compressor Type:
Semi-hermetic Screw Type
Chilled Water Flow:
77 M3/h
Condenser:
Fan + Finned
Refrigerant:
R134a/R407c/R22
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
US$200.00~US$20000.00
Packaging Details
Plywood Case
Delivery Time
Within 3 days if stock;Within 15 Working days if no stock
Payment Terms
50% Down payment, the balance payment before delivery
Supply Ability
300 Sets / Month
Product Description



High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process



Application Of High Quality Air Cooled Screw 100 Tons Industrial Water Chiller For Biodiesel Process


Water Chiller are used for controlled cooling temperature of products, mechanisms and factory machinery in a wide range .
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Paper and related – printing machine, labelling machine, cardboard making, plastic film machine, etc.
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc.

Specification of Industrial AHigh Quality Air Cooled Screw 100 Tons Industrial Water Chiller For Biodiesel Process

(1). Different models and cooling capcaity for options: 20 tr to 150 tr
(2). Brand screw type compressor: Hanbell, , Refcomp
(3). Electric power supply available : 3phase-220V/380V/415V/460V-50HZ/60HZ
(4). Outlet water temperature as requirement: 5C~30C


Model
TH-450A
Cooling capacity
450kw / 127.9 Ton / 387000 kcal/h
Power supply
3 Phase- 380V-50HZ
( Based on differnt country need)
Compressor
Screw type, Motor with UL certificate.
Dimension
4750*2200*2300 mm
Weight
4000kg





Model
TH-250A
TH-300A
TH-450A
Cooling capacity
76.8 TR
93.8 TR
127.9 TR
232200 Kcal/h
283800 Kcal/h
387000 Kcal/h
270 kw
330 kw
450kw
Power
3 Phase- 380V- 50HZ or based on different country need
Refrigerant
R22 / R407c / R134a / R410a /R404a
Compressor
Semi-hermetic screw type
86 kw
106 kw
142 kw
Chilled water flow rate
 46 m3/h
57 m3/h
77 m3/h
Inlet / Outlet
DN 80
DN 80
DN 100
Condenser air flow
100000 m3/h
120000 m3/h
150000 m3/h
Dimension (mm)
4400*2200*2300
4400*2200*2300
4750*2200*2300
Weight ( kg )
3300
3800
4000



Details

Control System

Brand: LG / Schneider / LS

Certificate: With CE, UL

Pannel

Brand: Simens

Certificate : ISO / CE/ CCC/ UL

Hermetic screw tpe compressor

Energy control: 25%~55%~75%~100%

Brand: / Hanbell /Fusheng

Motor: UL Certificate optional

Powerfull fan

Brand: MaEr / ZIEHL-ABEGG / DUNLI

Power: 1.5 kw *8 Sets

Pump

We can provide it, or user also can buy it in local based on their working need; if we provide, we adopt Nanfang brand as usual.

Condenser

"V" type design;  high efficiency aluminum finned type

High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process 0High Quality Air Cooled Screw 100 Tons Water Chiller For Biodiesel Process 1

China Top service for our High Quality Air Cooled Screw 100 Tons Industrial Water Chiller For Biodiesel Process

A. Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Advanced Payment-Production-Testing --Balance Payment- Packing &Delivery- Customs declaration- Documents to consignee- Assist of custom-cleaning --Instruction of Installation&Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C. After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.





Packaging
Size
397 (L) * 213 (W) * 205 (D)
Weight
3000Kg



Packaging Details
The normal package is wooden box(Size: L*W*H) shipping by LCL;
If air cooled chiller can be loaded in one contianer, we will shipping it by FCL;
We accept any loading port in China, FOB OR CIF or other terms.
