Low Temperature Glycol Chiller
>
|
| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

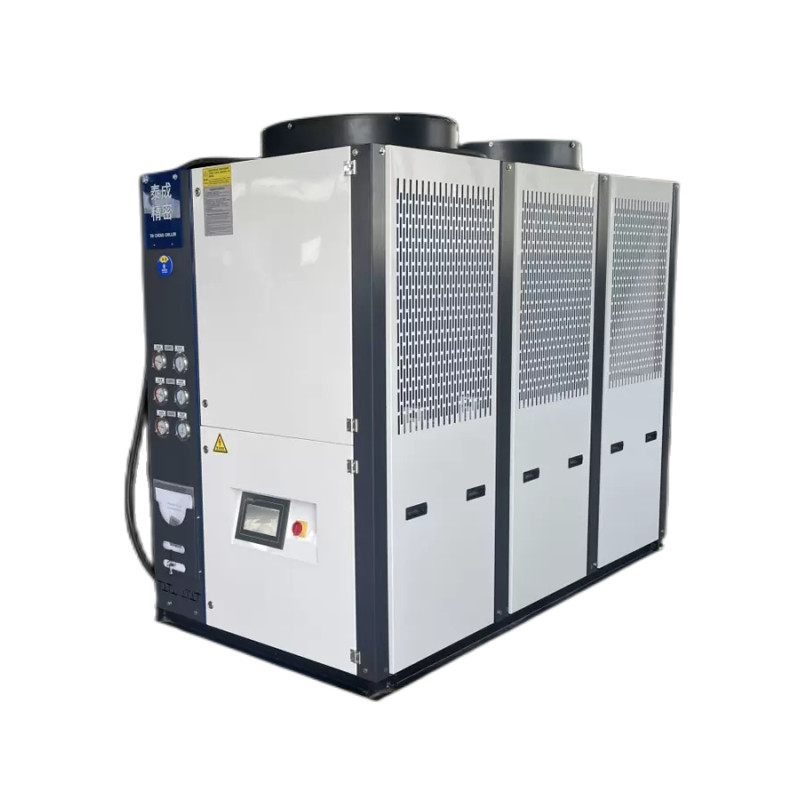

Best Quality 30hp Beer Cooling Low Temperature Air Cooled Brewery Glycol Chiller
1.Design of Brewery Glycol Chiller:
(1). Design waterproof ,suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection
,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection.
3.Parameters of Glycol Water Chiller
| Model | Unit | TH-30A In -5deg c Outlet |
| Nominal cooling Capacity | KW | 56.8kw |
| Input power | KW | 31.81KW |
| Set temp. range | -5ºC~+35ºC | |
| Power supply | 3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ) | |
| Refrigerant | Type | Thermostatic expansion valve |
| Compressor | Type | Hermetic scroll |
| Power (kw) | 8.7*3 | |
| Condenser | Cooling air flow(m3/h) | 30000 |
| Evaporator | Chilled fluid flow(m3/h) | 11.68 |
| Type | Stainless steel heat exchanger plate / tank with coil | |
| Pump | kw | 2.2 |
| Dimension | mm | 2200*1160*1900 |
| Weight | kg | 1150 |
| Safety protection | Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing |
4.Detailes Images
5.Customer working site
