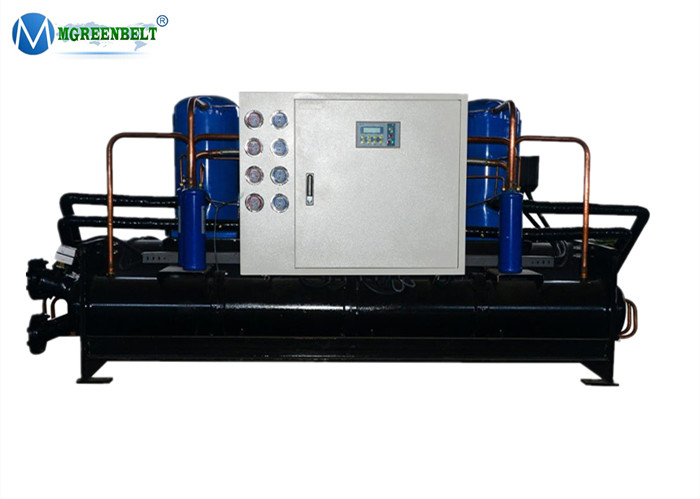

Four Compressor System Free Design 50HP Water Cooled Scroll Water Chiller
1. Cooling capacity: 141.4kw / 40 Ton
2. Supply:380V/3ph/50Hz or 60Hz
3. Refrigerant: R407c eco-friendly
4. Outlet water temperature: +5 ~ 35 ℃ & customized available
Technical Parameter
|
Specification for 50hp WATER cooled scroll chiller
|
|||
| Model | TH-50W | ||
|
Nominal
Cooling capacity
|
kcal/h
|
121604
|
|
|
kw
|
141.4
|
||
|
Power
|
kw
|
40
|
|
|
Power supply
|
3ph-380V/50hz(can be customized)
|
||
|
Refrigerant
|
Type
|
R22/R407C
|
|
|
Control
|
Thermostatic expansion valve
|
||
|
compressor
|
power(kw)
|
42.4
|
|
|
Type
|
Hermetic scroll
|
||
|
Evaporator
|
Type
|
High efficiency copper tube shell and tube
|
|
|
chilled fluid flow(m3/h)
|
24.24
|
||
|
inlet and outlet pipe diameter (inch)
|
DN65
|
||
|
Condenser
|
Type
|
High efficiency copper tube shell and tube
|
|
|
inlet and outlet pipe diameter (inch)
|
DN50
|
||
|
Safety
Protection System
|
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
|
||
|
Dimension
|
L*W*H(mm)
|
2000*2000*1750
|
|
|
Net weight
|
Kg
|
1380
|
|
|
Pump
|
Type
|
centrigual Stainless steel water pump
|
|
|
Power(kw)
|
2.2
|
||
|
Lift(m)
|
21
|
||
|
Control System
|
type
|
Schneider Full-automatic micro-computer LCD
|
|
Package
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
