| Place of Origin | China |
| Brand Name | TAICH |
| Certification | CE |
| Model Number | TC |

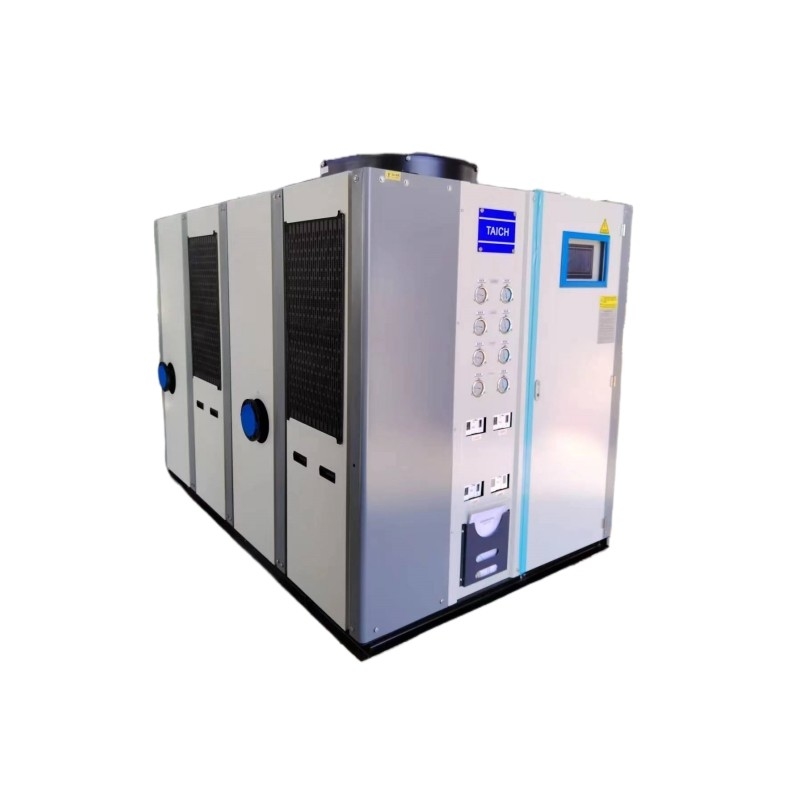

CE Certificate Industrial Cooling Copeland Compressor Air Cooled Water Chiller
China Cheap CE Industrial Air-cooled Water Chiller For Printing Machine are apply widely in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Pharmaceutical Industry , Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. Industrial chiller is a good partner for the modernized industry , which operate with reasonable design, high quality and complete range of specifications.
|
Air Cooled Water Chiller Parameter
|
|||
|
Model
|
TH-15A
|
TH-20A
|
TH-25A
|
|
Cooling capacity
|
35948 kcal/h
|
47558 kcal/h
|
54352 kcal/h
|
|
41.8kw
|
55.3 kw
|
63.2kw
|
|
|
Power input
|
16.31 kw
|
21.27kw
|
24.35 kw
|
|
Power supply
|
3 Phase -220V/380/415/440V/400V/460V/480V-50HZ/ 60HZ
|
||
|
Refrigerant
|
R22 / R407c / R410a /R134a /R404a
|
||
|
Evaporator type
|
Tank with coil, or shell and tube, or SS heat exchanger plate, 3 type for your choose
|
||
|
Chilled water flow(m3/h)
|
7.17
|
9.48
|
10.83
|
|
Inlet / Outlet Dia
|
DN 40
|
DN 40
|
DN 40
|
|
Condenser Type
|
High efficiency hydrophilic aluminum foll finned type
|
||
|
Pump (kw)
|
1.5
|
1.5
|
1.5
|
|
Protection System
|
Compressor overheat protection, High/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection
|
||
|
Dimension (mm)
|
1800*1000*1600
|
2100*1000*1700
|
2100*1000*1700
|
|
Weight (kg)
|
750
|
850
|
900
|
2.Air Cooled Details Images
3. Installation for air cooled chiller
We will supply you the free installation design, with drawing details, from water chiller arrive to user to it can working in your production, we have professional engineer one to one support, so no need worry about installation.
(1).If User side is a closed loop, then please choose our " tank with coil" type chiller.
(2).If user side is a open type loop, please choose our " shell and tube" or "heat exchanger plate" type.
4. Package And Delivery
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
