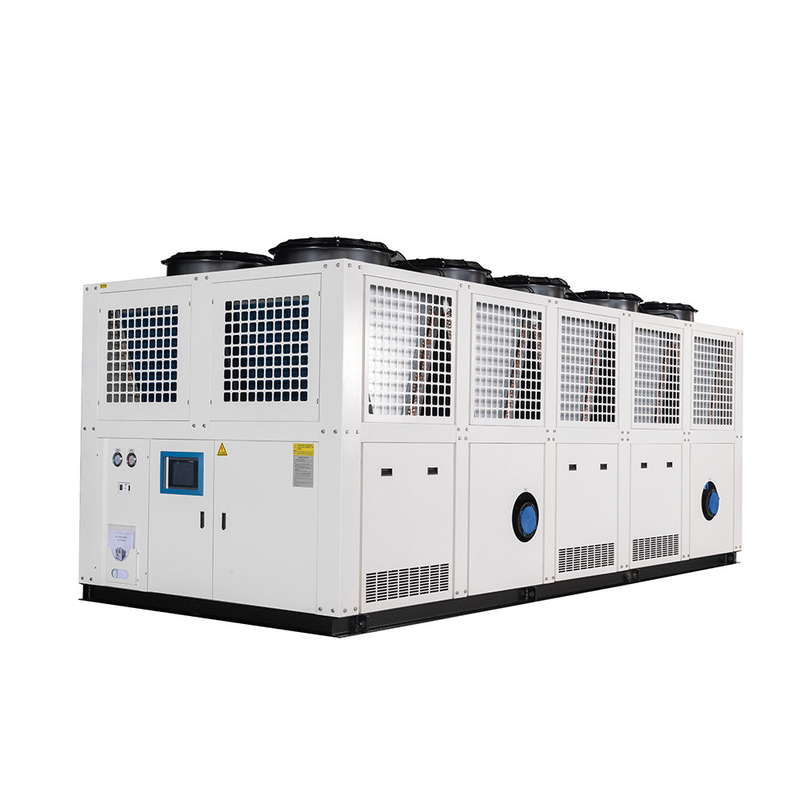

China Manufacturer 30 Ton 50Ton 60Ton 80Ton Industrial Air Water Chiller

Place of Origin	China
Brand Name	TAICH
Certification	CE
Model Number	TC-200C

Product Details

Product Name:

China Manufacturer 30 Ton 50Ton 60Ton 80Ton Industrial Air Water Chiller

Cooling Capacity:

58.6 Ton / 206 Kw

Compressor Brand:

HANBELL / Bitzer

Compressor Power:

66 KW

Power Supply:

3PH-220V/380V/440V/-480V/415V-50HZ/6-HZ

Refrigerant:

R22/R407C/R410A

Pump Power:

7.5 Kw

Chilled Water Flow:

35 M3/h

Condenser Fan:

1.5 KW*10

Dimension:

4050*1950*2000 Mm

Weight:

3000 Kg

Application:

Cooling System For Plastic Injection, Molding, Extrusion

Payment & Shipping Terms

Minimum Order Quantity

1 Unit

Price

US$200.00~US$20000.00

Packaging Details

Plywood Case

Delivery Time

Within 3 days if stock;Within 15 Working days if no stock

Payment Terms

50% Down payment, the balance payment before delivery

Supply Ability

300 Sets / Month

Product Description

China Manufacturer 30 Ton 50Ton 60Ton 80Ton Industrial Air Water Chiller

As a leading air cooled screw chiller supplier, Darko Chiller provides a complete range of air-cooled screw chiller from TC-C series, with cooling capacity from 20 Ton to 150Ton / 78KW to 530KW and the chiller temperature control range is +30℃ to -30℃. Besides the standard air-cooled screw chiller control temperature of 7℃ to 30℃, TopChiller also has air-cooled glycol screw chiller control temperature below zero from 0℃ to -30℃.

(1).Air Cooled Screw Chiller cooling capacity from 20 Ton to 150 Ton (78KW~530KW)

(2).Semi-hermetic screw type compressor

(3).Air-cooled type condenser Temperature control from 7℃to 35℃

(4).Closed loop shell and tube evaporator

(5).No need to install a cooling tower

1. Technical Data

Air Cooled Screw Chiller Normally Temperature Series( Single System)
Model		TC-80A	TC-100A	TC-150A	TC170A	TC-250A	TC-300A	TC-450A	TC-530A
Cooling Capacity	USRT	22.2	31.0	40.4	46.9	76.8	93.8	127.9	150.7
	Kcal/h	67080	93740	122120	141900	232200	283800	387000	455800
	KW	78	109	142	165	270	330	450	530
Power		3PH-380V-50Hz
Refrigerant	Type	R22/R407C
Refrigerant	Control	Thermostatic expansion valve
Comperssor	Type	semi-closed screw type
	kw Power	29	38	48	55	86	106	142	165
	Start	Y-△
	Capacity	25%-50%-75%-100%
Evaporator	Type	High efficiency copper tube shell and tube type
	m³/h Flow	13	19	24	28	46	57	77	91
	Inlet/outlet	DN65	DN65	DN80	DN80	DN80	DN80	DN100	DN100
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	m³/h Flow	27000	40000	50000	60000	100000	120000	150000	180000
Protection System		Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L(mm)	2350	3200	3200	3300	4400	3850	4750	5850
	W(mm)	1450	1450	1450	2300	2300	2200	2200	2200
	H(mm)	2150	2150	2150	2400	2400	2350	2450	2450
Wight	kg	1800	1900	2300	2480	3800	3300	4000	5000

Control System
(1). SIMENS PLC control system, R485 OR Ethernet Connection support.
(2). Simple Punpu micro-computer control system, more stable, easy to operate.
(3). Schneider electrical components, UL certificate can option.
(4). Workable for outdoor design with a alone cabinet, waterproof.
(5). Alarm display, protect for equipment well.

China Manufacturer 30 Ton 50Ton 60Ton 80Ton Industrial Air Water Chiller 1

Compressor

(1). Air cooled screw chiller can make with one compressor system, also can make to two compressor system; more energy saving, and conveneint for mainteance.
(2). 25%~50%~75%`100% energy control, when temperature to the temperature set point, it will unloading, when water become warmer, compressor start loading automatic.
(3). , Hanbell, Refcom, etc brand optional, Quality first, Service first.

China Manufacturer 30 Ton 50Ton 60Ton 80Ton Industrial Air Water Chiller 2

Evaporator( Heat Exchanger)

(1). Shell and tube type; copper pipe working with refrigerant, and the shell is working with cold water which is supply to user.(2). Inlet and outlet diameter: DN 80
(3).Connection with Flange
(4). 2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency.
(5).Flow rate meter and temperature sensor.

China Manufacturer 30 Ton 50Ton 60Ton 80Ton Industrial Air Water Chiller 3

Condenser

The condenser is used to lower the temperature of the refrigerant below the saturated condensing temperature, which enhances the

refrigeration effect and improves system capacity eventually.

Darko Chiller using the last generation of microchannel condensing coils:

* Long service life aluminum alloy

* Reduced refrigerant charge

* Several coating options available

YOUR PROFESSIONAL AIR COOLED SCREW CHILLER SUPPLIER

Air cooled screw chiller equipment with semi-hermetic screw compressor, also called air cooled screw compressor chiller. It is for large cooling capacity application. Each air cooled screw chiller manufactured by Darko Water Chiller featuring full protection devices including screw compressor overheating protection, low-temperature protection, high/low pressure, anti-freezing, phase-missing, anti-phase with overload, water flow switch and startup latency. Various refrigerants such as R134a, R407c, R410a, and R404a are all available depending on the screw chiller working condition, application requirements and ambient temperature.

If you have any further interests, welcome contact with us.

Mrs Jamie Zhang / Director

Jinan Darko Machinery CO.,Ltd

Mobile/Whatsapp/Weichat :+86-15053152757

Email: jamie@darkochiller.com

Web: www.darkochiller.com

Address: NO.1666 Yitianmen Street, High-tech District,Taian City,Shandong Province,China
